Epson EH-TW9300W User Manual

Preparing
17

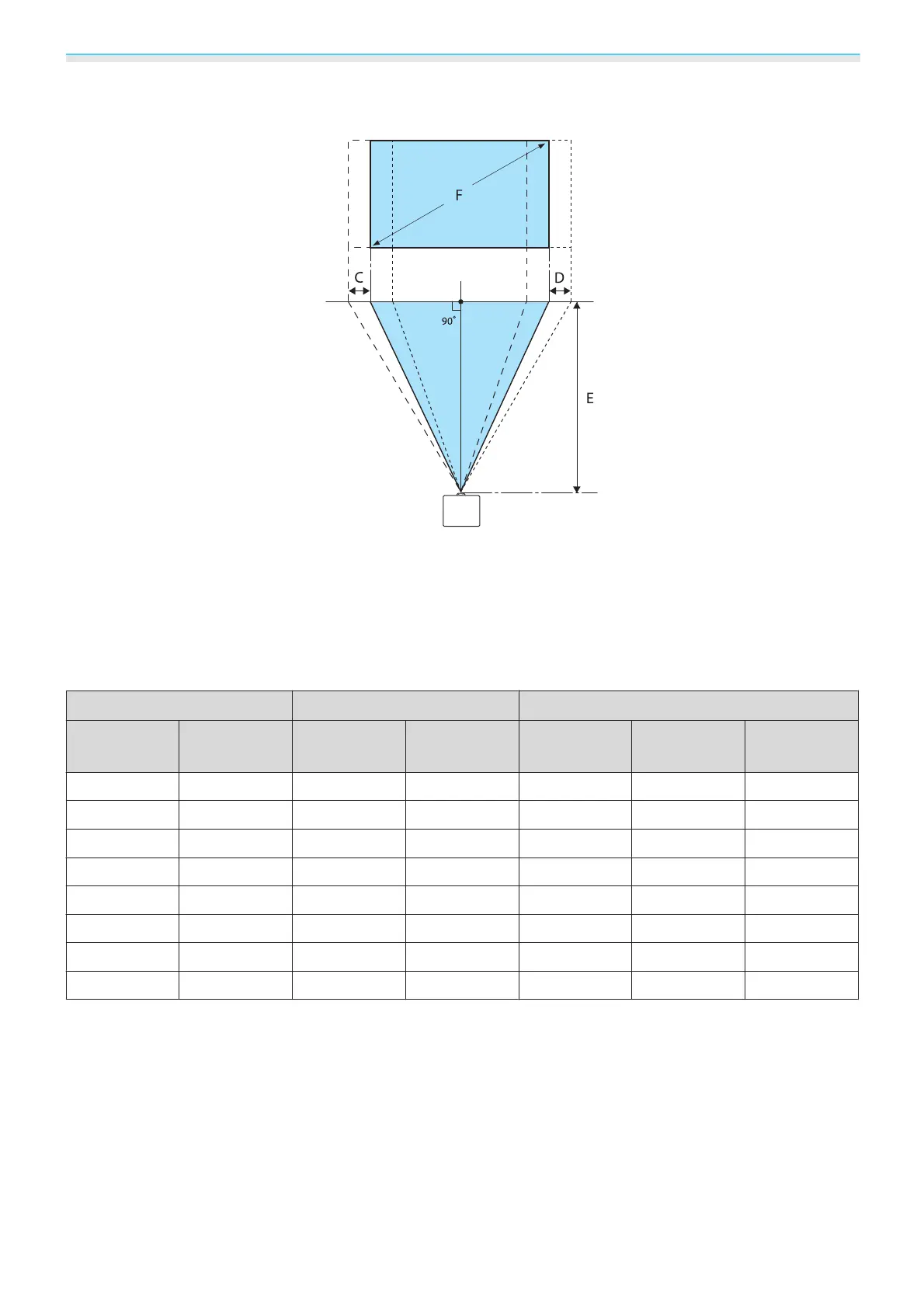

When adjusting the projection position horizontally in lens shift
C : Lens center movement distance when the projector is moved (when lens shift is set to maximum left)
D : Lens center movement distance when the projector is moved (when lens shift is set to maximum right)
E : Projection distance from the projector to the screen
F : Size of the projected image
Unit: cm
16:9 Screen Size Projection Distance (E) Lens Shift Maximum Values
*
F W x H Minimum
(Wide)
Maximum
(Tele)
Distance
(A)
Distance
(B)
Distance
(C, D)
50" 111 x 62 148 313 29 91 52
60" 133 x 75 178 376 35 109 63
80" 177 x 100 239 503 46 146 83
100" 221 x 125 300 630 58 182 104
150" 332 x 187 452 947 86 273 156
200" 443 x 249 604 1264 115 364 209
250" 553 x 311 756 1582 144 455 261
300" 664 x 374 908 1899 173 547 313
*
Vertical and horizontal lens shift cannot both be set to their maximum values. s p.30
Installation example (with 16:9 screen size and 100")
Side view

Epson EH-TW9300W Specifications

General

Matrix size	0.74 \
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	3 - 6.3 m
Projection technology	3LCD
Contrast ratio (typical)	1000000:1
Screen size compatibility	50 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	± 30 °
Zoom capability	Yes
Focal length range	22.5 - 46.7 mm
Aperture range (F-F)	2 - 3
Horizontal lens shift range	-96.3 - 96.3 %
Lamp type	UHE
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Color modes (2D)	Bright cinema, Cinema, Dynamic, Natural
Color modes (3D)	Cinema, Dynamic
Supported 3D formats	Side by side, Top and bottom
Analog signal format system	-
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1366 x 768, 1600 x 900, 1920 x 1080 (HD 1080)
DVI port	No
Composite video in	0
HDMI ports quantity	4
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Noise level	24 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	20 dB
Cables included	AC
Bundled software	EasyMP Multi PC Projection
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	355 W
Power consumption (economy mode)	271 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	450 mm
Width	520 mm
Height	170 mm
Weight	11200 g
Package depth	660 mm
Package width	513 mm
Package height	260 mm
Package weight	15710 g
