Epson EH-TW9300W User Manual

Adjusting the Image
34

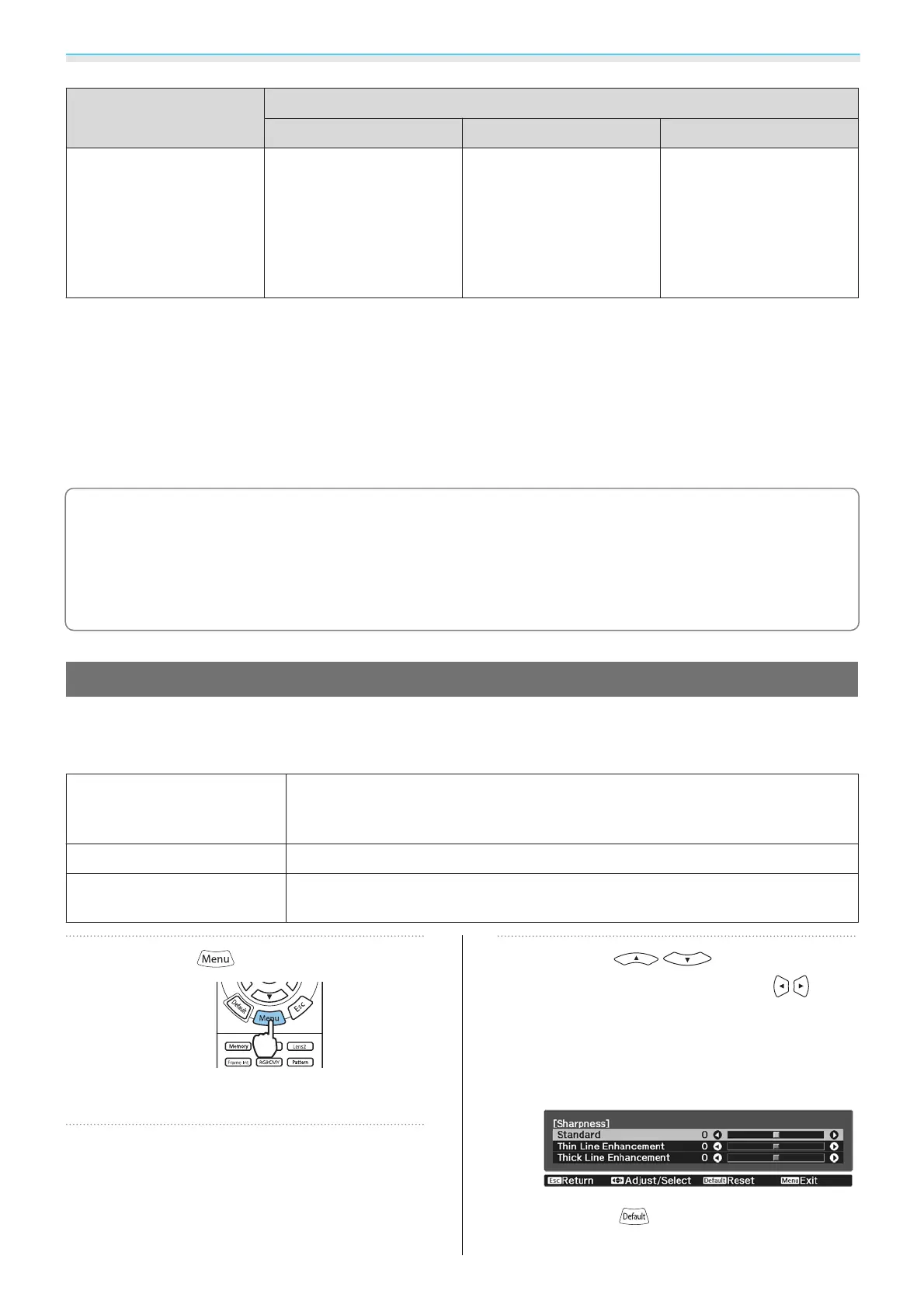

Input Image Setting Name
Normal Full Zoom
Notes
Matches the vertical size of
the projection panel. The
aspect ratio differs de-
pending on the input im-
age.
Uses the entire projection
panel. The aspect ratio dif-
fers depending on the in-
put resolution.
Retains the aspect ratio of
the input signal, and
matches the horizontal
size of the projection pan-
el. The top and bottom of
the image may be trunca-
ted.
*
The letterbox image used in this explanation is a 4:3 aspect ratio image displayed in 16:9 with black margins at
the top and bottom for subtitle placement. The margins at the top and bottom of the screen image are used for
subtitles.
For EH-TW9300W/EH-TW9300, you can also set Anamorphic Wide and Horiz. Squeeze.
Set Anamorphic Wide and attach a commercially available anamorphic lens to enjoy DVDs, Blu-rays, and so
on of images recorded at Cinema Scope size.
Horiz. Squeeze stretches the horizontal aspect of the input signal. This allows you to project across the full
width of the screen when using a commercially available anamorphic lens.
c
•
If Anamorphic Wide is selected when Overscan is set, the image may be truncated. Set Overscan to
Off.
s Signal - Overscan p.78
•
When projecting 3D images in Anamorphic Wide, only 1080p/24 Hz/frame packing signals are
supported.
•
When a 4K image signal is being input, you can only select Normal, Anamorphic Wide, and Horiz.
Squeeze.
Adjusting the Sharpness
You can make the image clearer.
The following shows the setting items and procedures.
Standard
Enhances the outlines for the projected image overall. When adjusting Stand‐
ard, the adjustment values for Thin Line Enhancement and Thick Line En‐
hancement are also adjusted at the same time.
Thin Line Enhancement
Details such as hair and patterns on clothing are enhanced.
Thick Line Enhancement
Rough parts such as outlines for entire subjects or the background are enhanced,
making the overall image clearer.
a
Press the button.
The Configuration menu is displayed.
b
Select Image - Sharpness.
The Sharpness adjustment screen is
displayed.
c
Use the buttons to select
the item, and then use the
buttons to make the adjustments.
The image is enhanced when moved to the
right (positive) and softer when moved to
the left (negative).
Press the button to return the
adjustments to their default values.

Epson EH-TW9300W Specifications

General

Matrix size	0.74 \
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	3 - 6.3 m
Projection technology	3LCD
Contrast ratio (typical)	1000000:1
Screen size compatibility	50 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	± 30 °
Zoom capability	Yes
Focal length range	22.5 - 46.7 mm
Aperture range (F-F)	2 - 3
Horizontal lens shift range	-96.3 - 96.3 %
Lamp type	UHE
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Color modes (2D)	Bright cinema, Cinema, Dynamic, Natural
Color modes (3D)	Cinema, Dynamic
Supported 3D formats	Side by side, Top and bottom
Analog signal format system	-
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1366 x 768, 1600 x 900, 1920 x 1080 (HD 1080)
DVI port	No
Composite video in	0
HDMI ports quantity	4
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Noise level	24 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	20 dB
Cables included	AC
Bundled software	EasyMP Multi PC Projection
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	355 W
Power consumption (economy mode)	271 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	450 mm
Width	520 mm
Height	170 mm
Weight	11200 g
Package depth	660 mm
Package width	513 mm
Package height	260 mm
Package weight	15710 g
