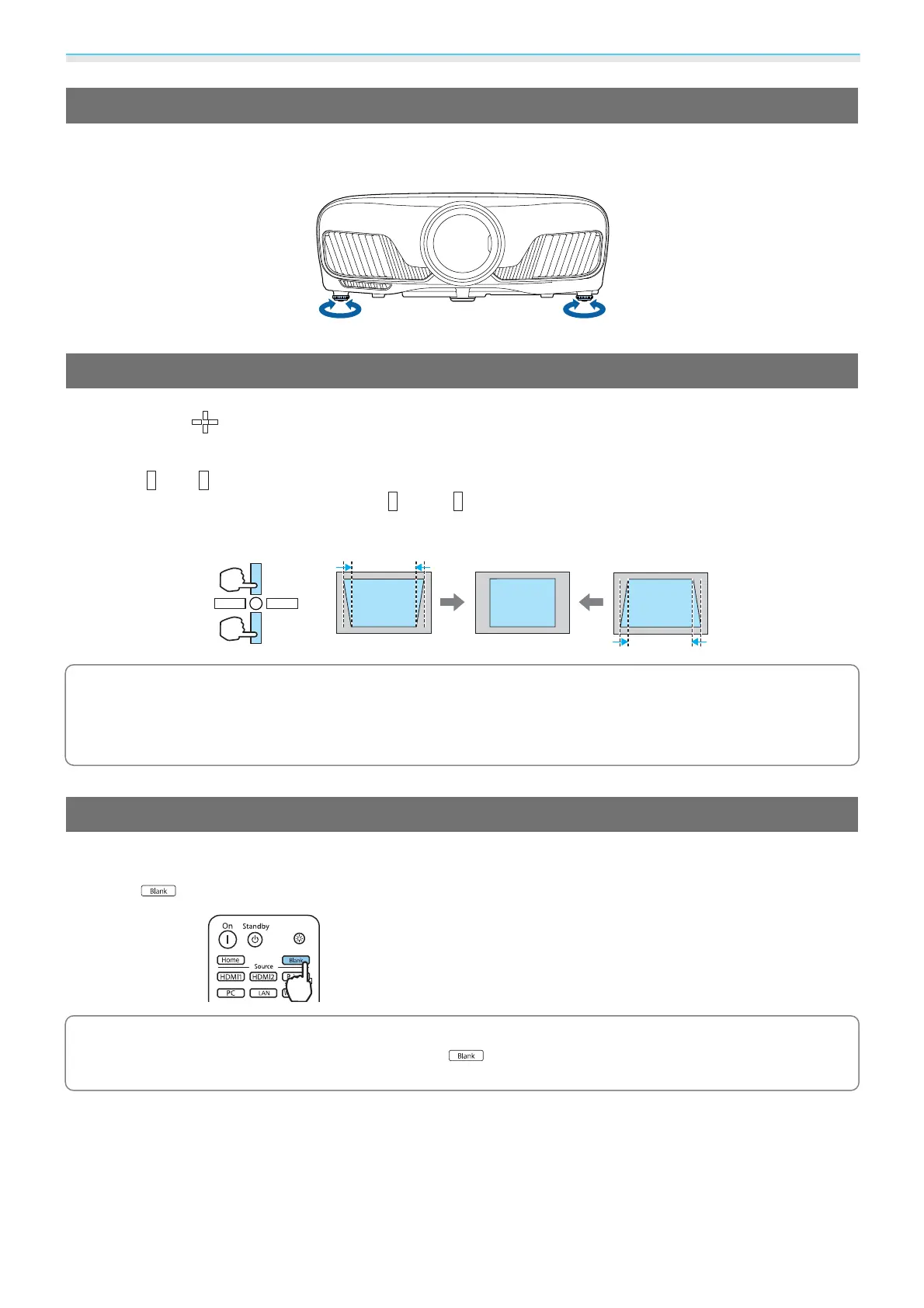

Basic Operations
31
Adjusting the Projector's Tilt
If the projected image is horizontally tilted (the left and right sides of the projected image are at different
heights) when the projector is setup on a table, adjust the front foot so that both sides are level with each other.
Correcting Keystone Distortion
You can use the buttons on the control panel to correct keystone distortion.
Open the control panel cover at the side to operate the control panel.
s
p.7
Press the
or buttons to display the adjustment gauges.
When the gauges are displayed, press the
and buttons to perform vertical correction.
When the top or bottom is too wide
c
When you correct keystone distortion, the projected image may be reduced. Increase the projection
distance to fit the projected image to the screen size.
You can make keystone settings from the Configuration menu. s Settings - Keystone p.80
You can make effective corrections within a projection angle of 30° top to bottom.
Hiding the Image Temporarily
You can use this to temporarily hide the image on the screen.
Press the
button to show or hide the image.
c
For movies, because the movie continues to play even when it is hidden, you cannot return to the
point at which you hid the image using the
button.
