When suspending from the ceiling and projecting, set Projection to Front/Ceiling or Rear/
Ceiling.
s
Extended - Projection p.83
Projection Distance and Lens Shift Maximum Values
The size of the projection increases as the projector is moved away from the screen.
Use the table below to setup the projector at the optimum position from the screen. The values given here
are for your reference only.
The maximum lens shift adjustment values are shown in the following table.
c
The projected image becomes smaller after correcting distortion. Increase the projection distance
to fit the projected image to the screen size.

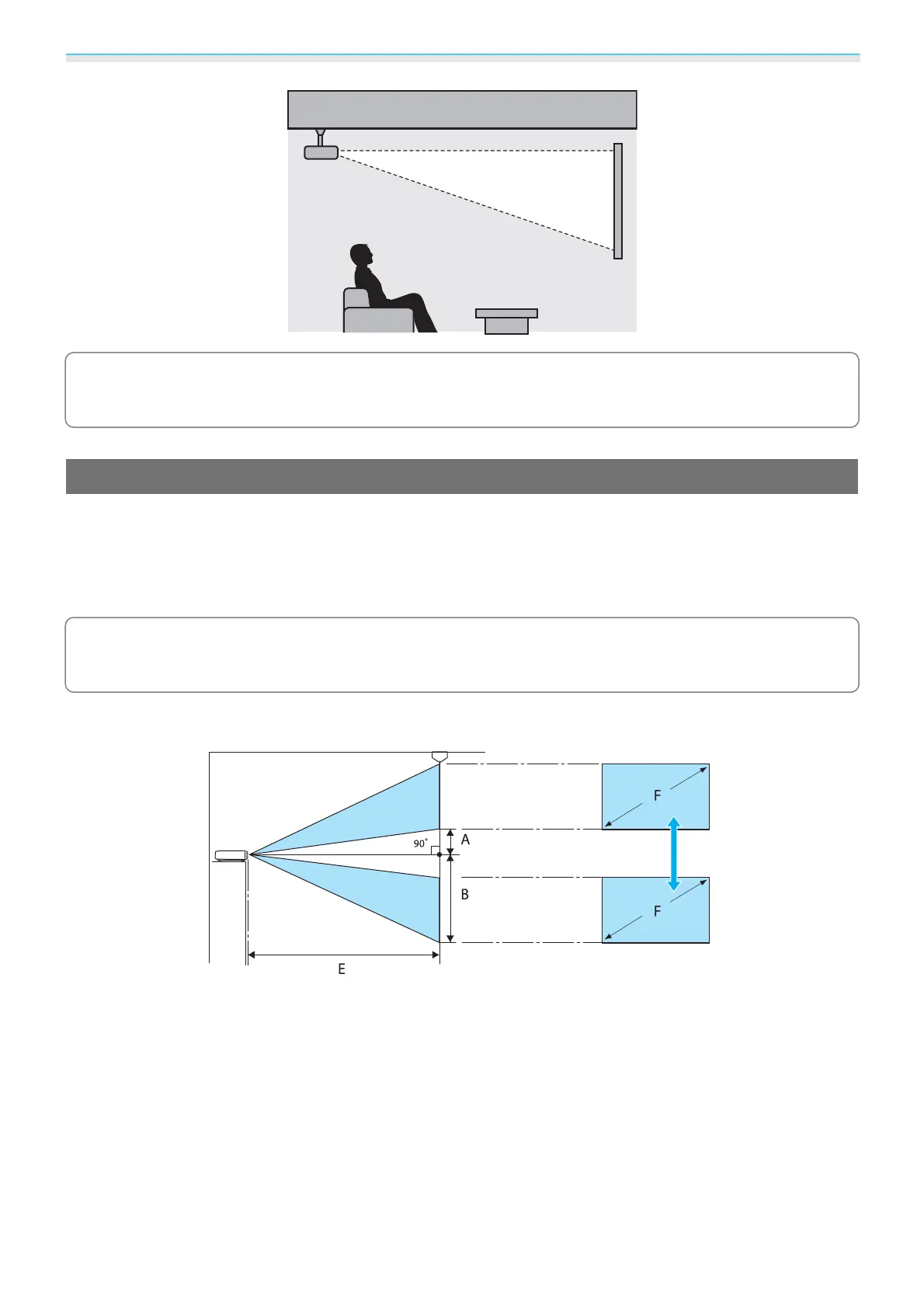

When adjusting the projection position vertically in lens shift
A : Distance from the center of the lens to the bottom edge of the projected image (when lens shift is raised
to its highest level)
B : Distance from the center of the lens to the bottom edge of the projected image (when lens shift is lowered
to its lowest level)
E : Projection distance from the projector to the screen
F : Size of the projected image
