4.2 Consumables and Regular Replacement Parts
4.2.1 Locations of Fuses
The fuses used in this printer are as follows: (See Figure 4-1)
 F102: AC 125 V, 8 A
 F101: AC 125 V, 12 A
NOTE:
For removal of fuses, refer to “4.3.10 Lower Rear Cover (p.144)” .
4.2.2 Paper Feed Roller
1. Remove the Imaging Cartridge.
2. Remove the Paper Feed Roller.
(See Figure 4-2)

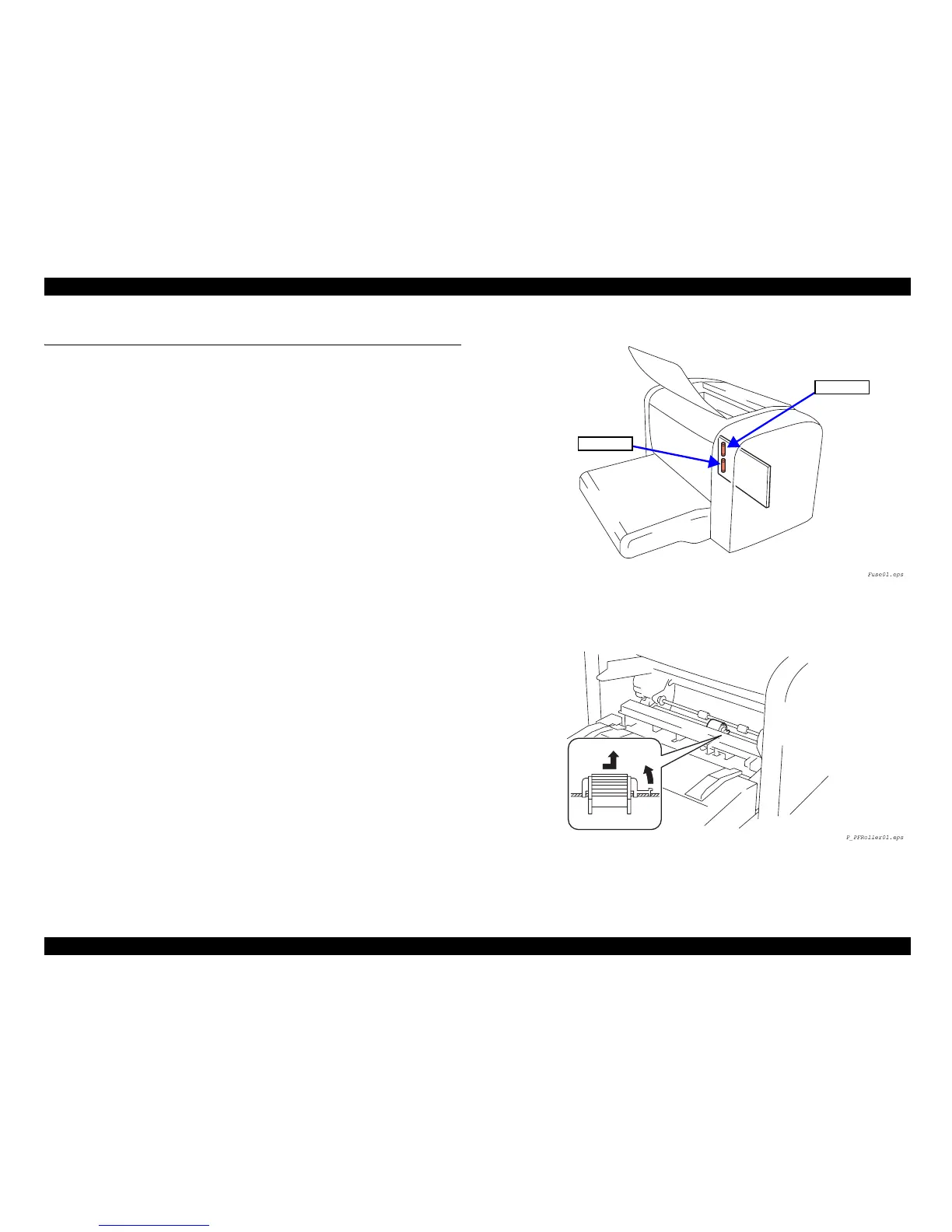

Figure 4-1. Locations of Fuses
Figure 4-2. Paper Feed Roller Removal
F101
F102
