EPSON EPL-6200/EPL-6200L Revision A
Disassembly and Assembly Removal of Covers 142
4.3.6 Top Cover
1. Remove the Left Cover. (p.138)
2. Remove the Right Cover. (p.139)
3. Open the Paper Exit Open/Close Cover.
4. Release the four hooks of the right and left printer frames.
5. Remove the Top Cover.
(See Figure 4-15)
4.3.7 Paper Exit Open/Close Cover
1. Remove the Left Cover. (p.138)
2. Remove the Right Cover. (p.139)
3. Remove the Top Cover. (p.142)
4. Turn the Paper Exit Cover by 90 degrees, and remove the Paper Exit Cover from the
right and left shaft holders.
(See Figure 4-16)

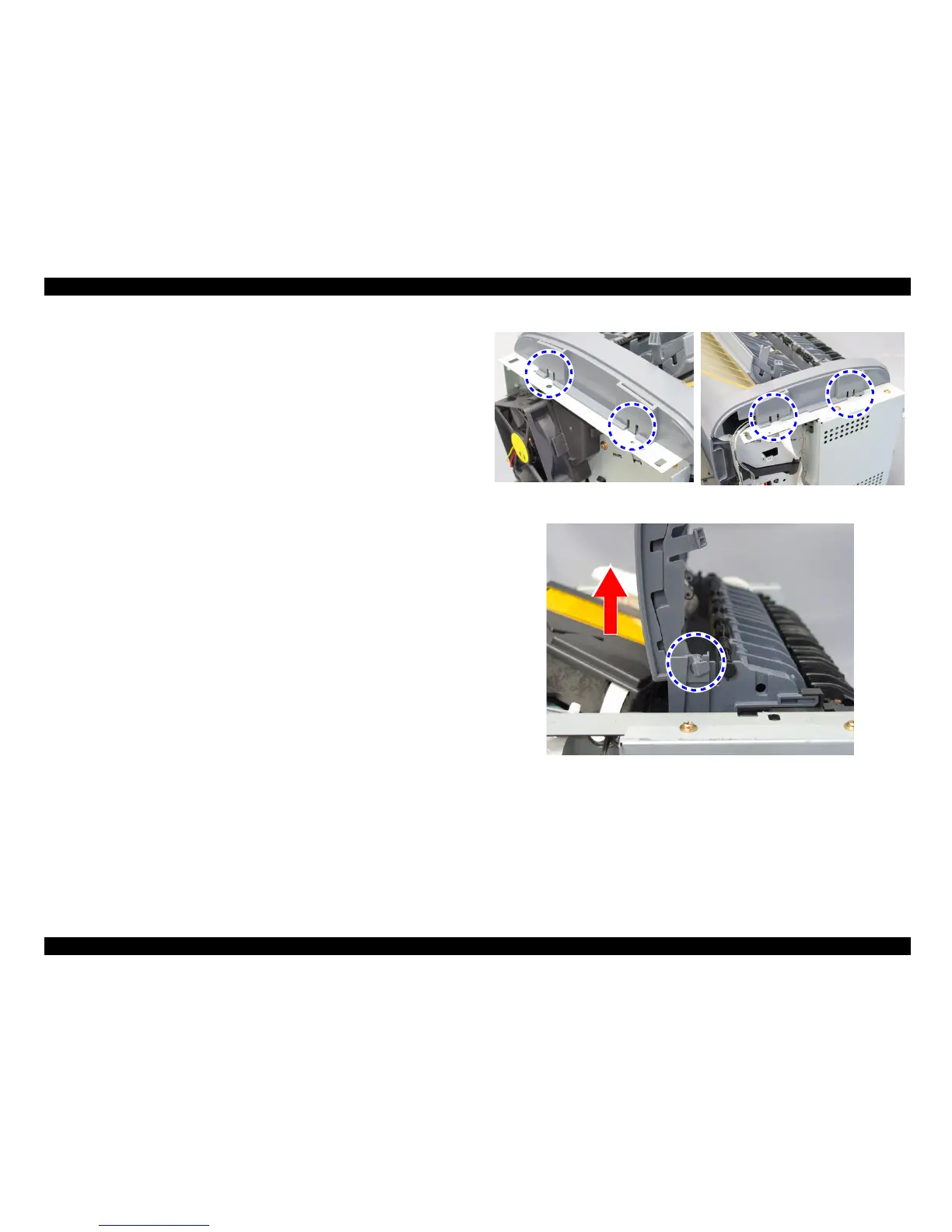

Figure 4-15. Top Cover Removal
Figure 4-16. Removing the Paper Exit Open/Close Cover
