2.1 Overview
EPL-6200 and EPL-6200L are almost the same in operating principles. However, do
not forget that there are some differences in mechanisms between EPL-6200 and EPL-
6200L.
2.1.1 EPL-6200 Major Components

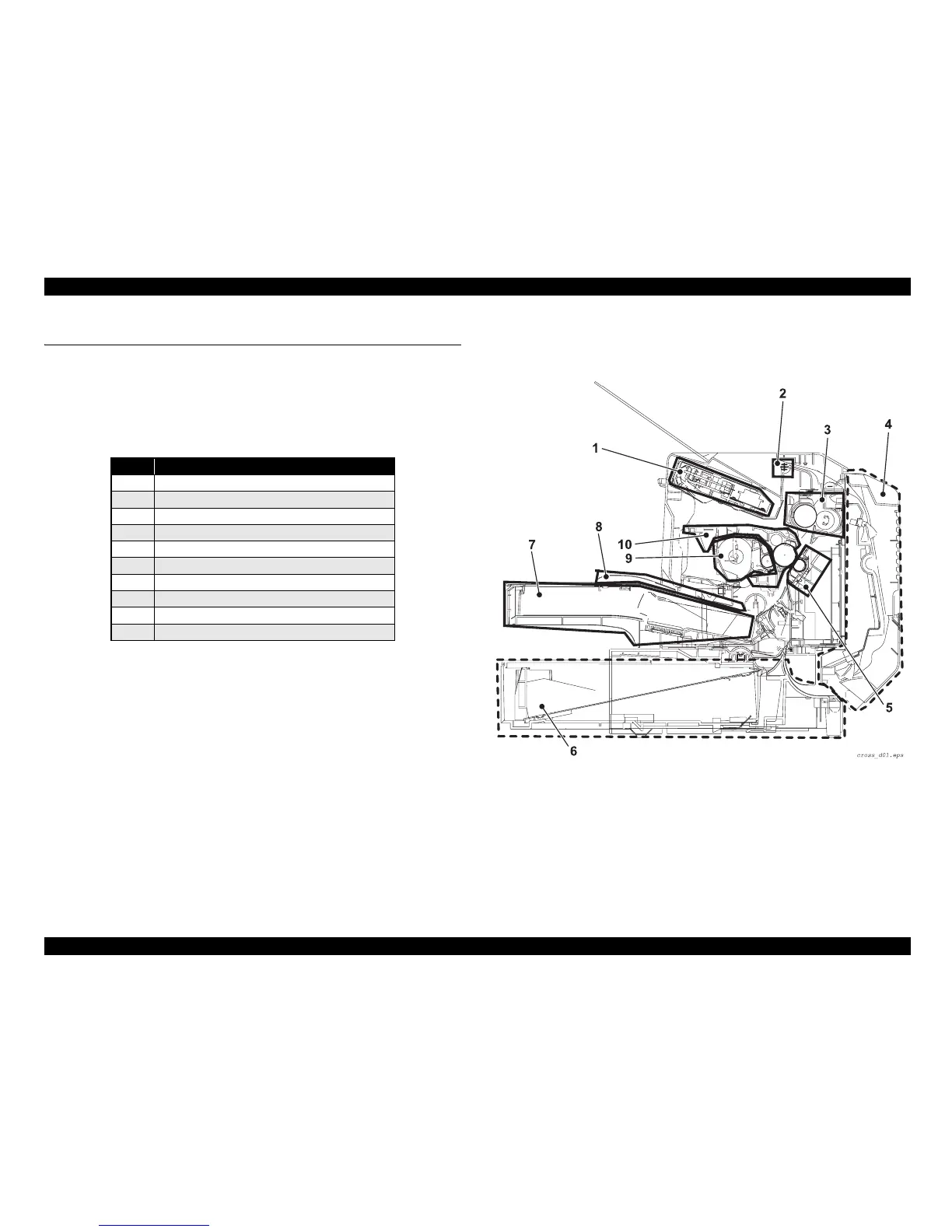

Figure 2-1. Sectional View of Mechanism (EPL-6200)
Table 2-1. EPL-6200 Major Components
No. Major Components
1 Print Head Unit
2 Paper Exit Roller
3Fuser Unit
4 Duplex Unit (Option)
5 Transfer Section
6 Lower Cassette Unit (Option)
7MP Tray
8 Manual Feed Tray
9 Developer Cartridge (toner cartridge)
10 Photoconductor Unit (Drum Cartridge)
