Disassembly and Assembly Lower Cassette Unit (Option) 161
4.6.2 Paper Feed Roller (Lower Cassette)
1. Remove the Duplex Unit. (If the Duplex Unit has been installed)
2. Separate the printer body and the second paper cassette from each other.
3. Remove the two Paper Feed Rollers.
4.6.3 Paper Feed Solenoid (Lower Cassette)
1. Remove the Duplex Unit. (If the Duplex Unit has been installed)
2. Separate the printer body and the second paper cassette from each other.
3.
Remove the Second Paper Feed Unit. (p.160)
4. Remove the one screw, and remove the cover. (See Figure 4-48)
5. Remove the one screw, disconnect the one connector, and remove the Second Tray
Paper Feed Solenoid.

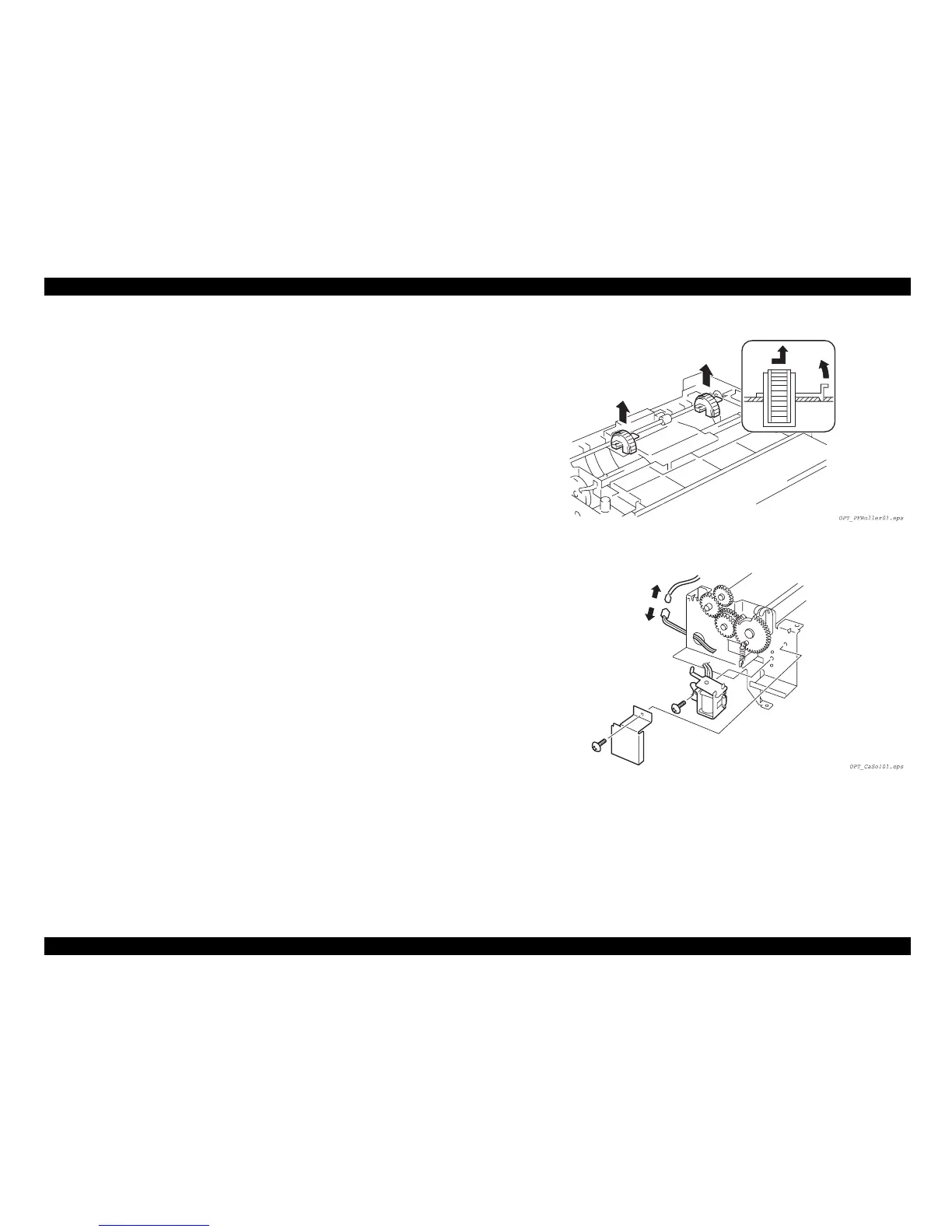

Figure 4-47. Paper Feed Roller Removal
Figure 4-48. Removing the Second Tray Paper Feed Solenoid.
