4.3 Removal of Covers

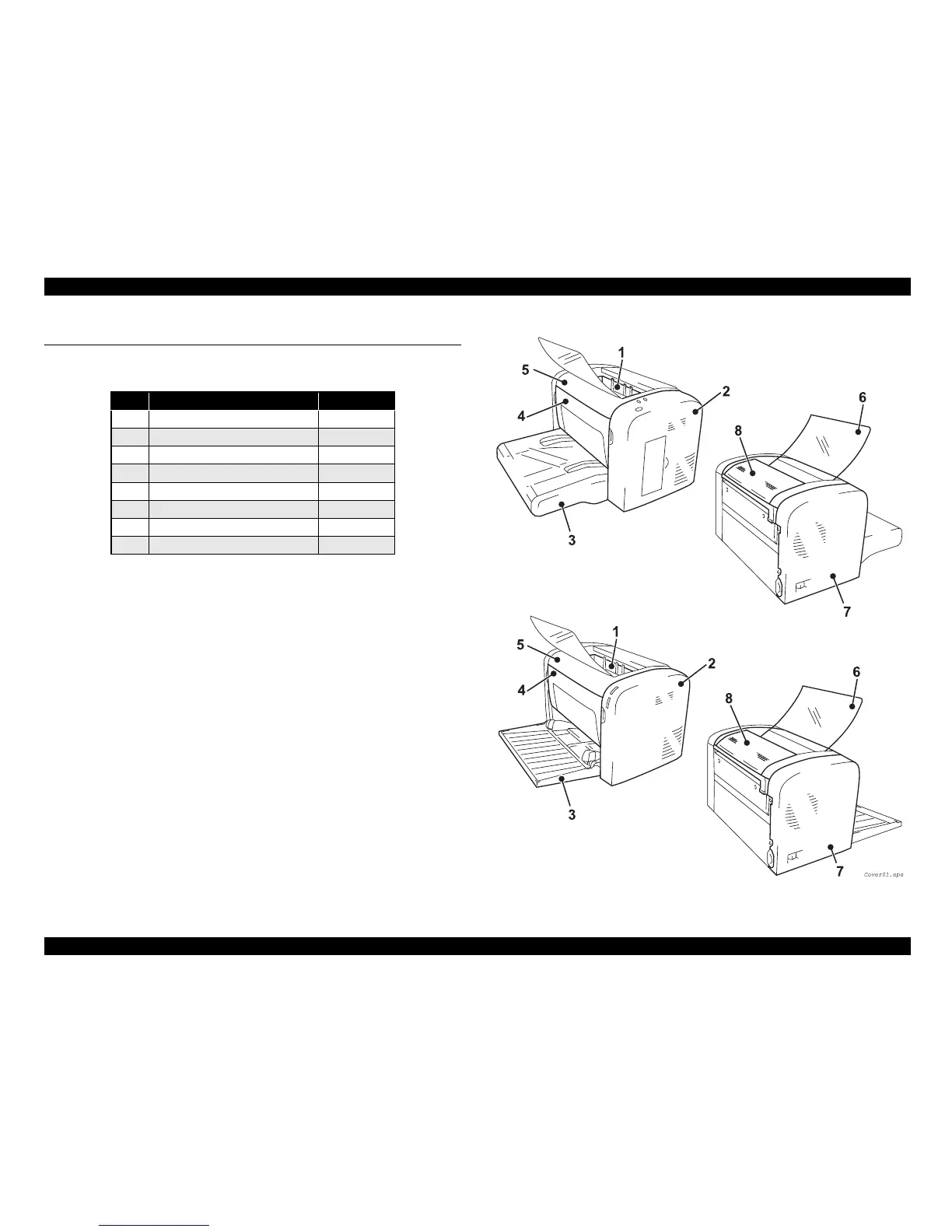

Figure 4-6. Covers
Table 4-2. Covers
No. Names Refer to
1
Paper Exit Cover
p.143
2
Right Cover
p.139
3
MP Cassette (MP Tray)
p.140
4
Front Cover
p.141
5
Top Cover
p.142
6
Output Tray
p.141
7
Left Cover
p.138
8
Paper Exit Open/Close Cover
p.142
<EPL-6200>
<EPL-6200L>
