Epson FX-890II User Manual

Installing the tractor in the rear push position
Before installing the tractor in the rear push position, remove it from its current position. If the tractor
is in the front push position, remove it by pressing the tractor’s lock tabs while lifting it out. If the
tractor is in the pull position, remove it as described in “Removing the tractor from the rear push
position” on page 25.
1. Make sure the printer is turned off. Then open the paper guide cover by pulling its back edge
forward.

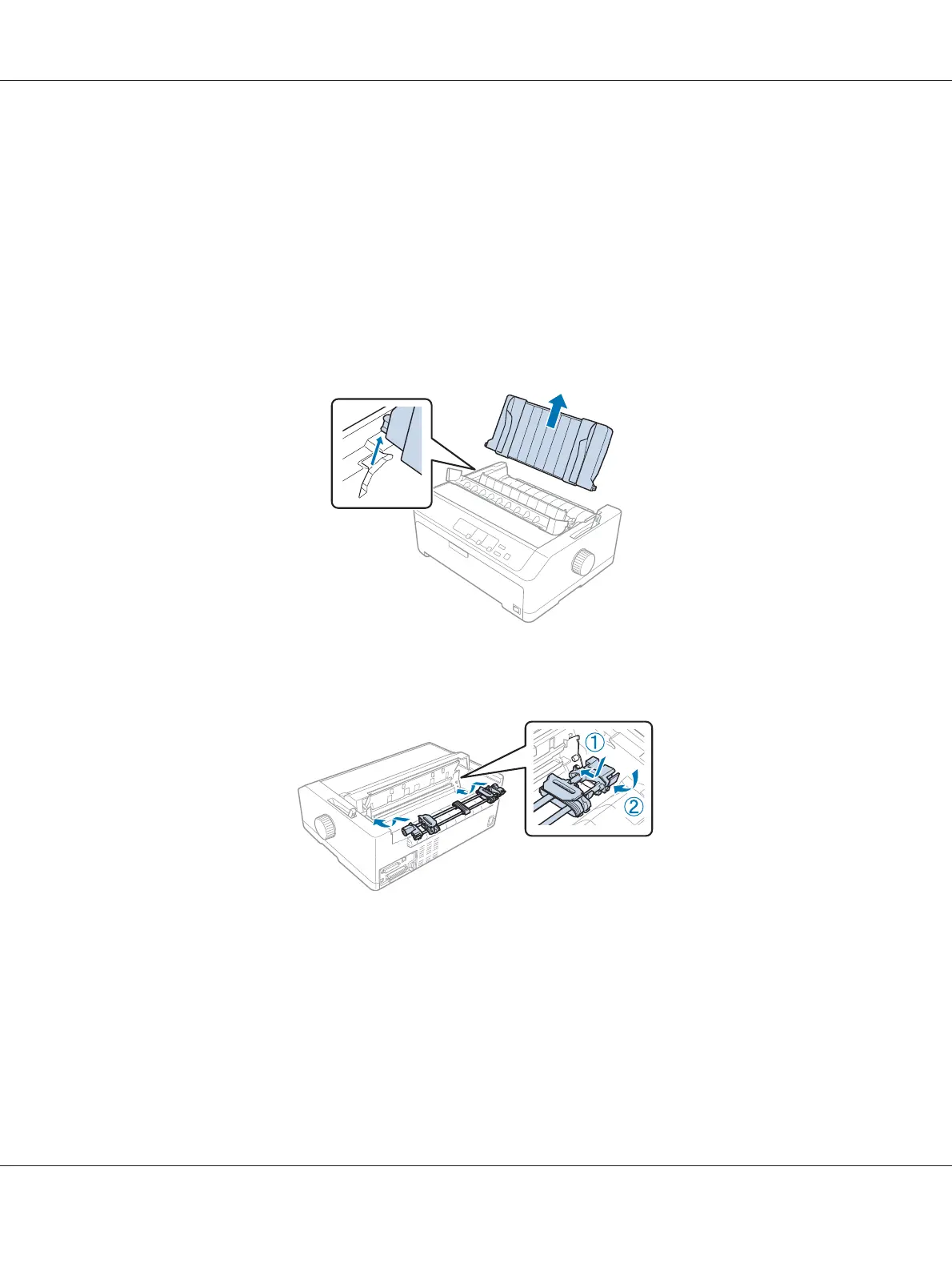

2. Slide the sheet guide along the path and lift it at an angle to remove it.
3. Lower the tractor into the printer’s mounting slots and press down both ends of the tractor to
make sure that it is firmly seated.
See “Loading paper with the rear push tractor” on page 22 for instructions on loading continuous
paper using the rear push tractor.
Loading paper with the rear push tractor
Follow these steps to load paper using the rear push tractor:
1. Make sure the printer is turned off.
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Paper Handling 22

Epson FX-890II Specifications

General

Color	No
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Character pitch	10 cpi
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)	115 cps
Maximum print speed (draft)	463 cps
Maximum printing width (columns)	80
Product color	Black
Page description languages	ESC P, PPDS
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Mean time between failures (MTBF)	20000 h
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 60 %
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Cut sheet thickness range	0.12 - 0.46 mm
Continuous paper thickness range	0.46 - 0.46 mm
Standard interfaces	Parallel, USB 2.0

Weight and Dimensions

Depth	376 mm
Width	437 mm
Height	177 mm
