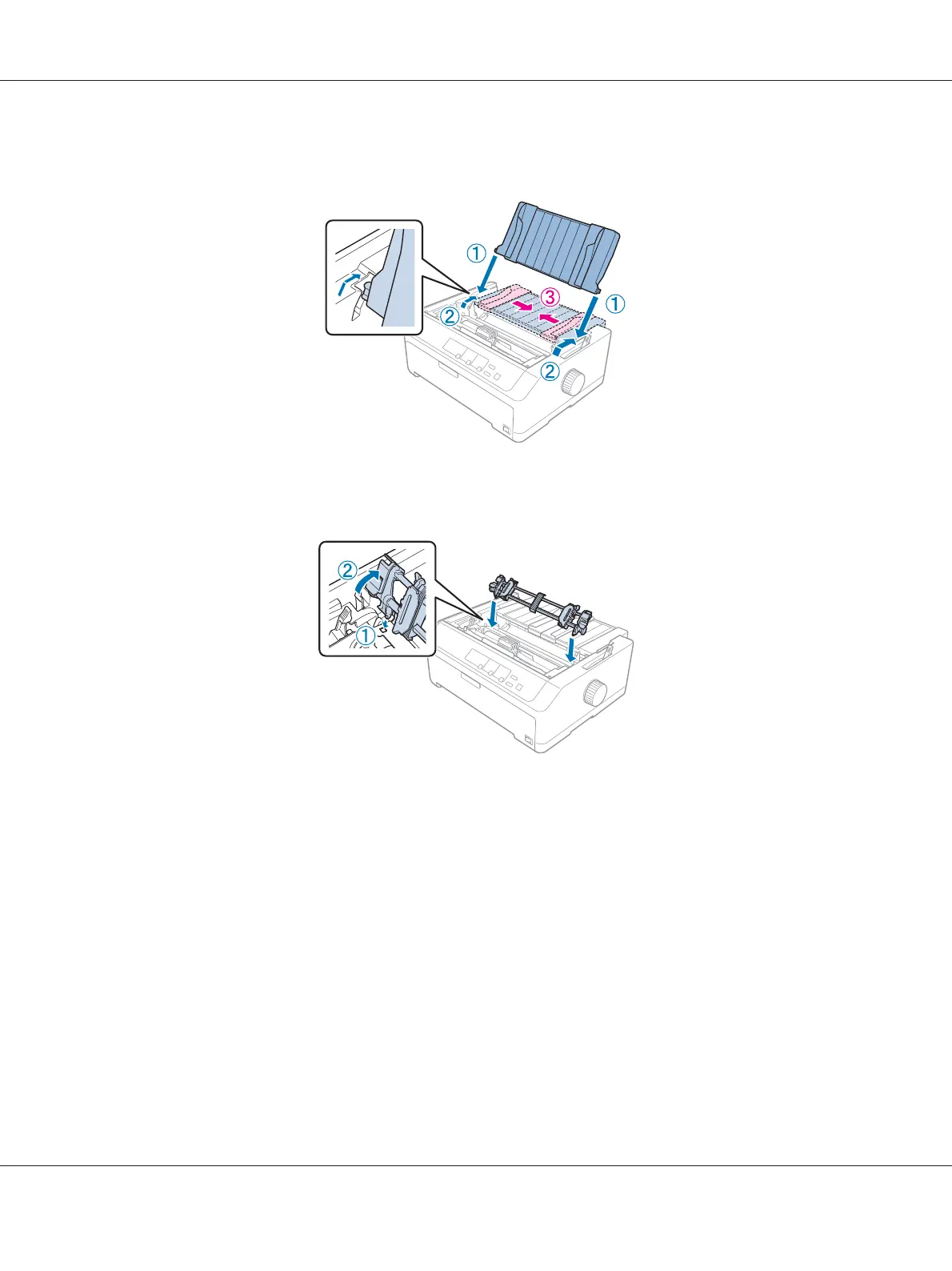

4. Attach the sheet guide if necessary then lay it flat on the printer. Then slide the edge guides to the
middle of the sheet guide.
5. Lower the tractor into the printer’s mounting slots and press down both ends of the tractor to
make sure it is firmly seated.
Loading paper with the pull tractor
Follow these steps to load paper using the pull tractor:
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Paper Handling 33

Table of Contents

Other manuals for Epson FX-890II

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson FX-890II and is the answer not in the manual?

Epson FX-890II Specifications

General IconGeneral
ColorNo
Character setsISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Character pitch10 cpi
Built-in barcodesCODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)115 cps
Maximum print speed (draft)463 cps
Maximum printing width (columns)80
Product colorBlack
Page description languagesESC P, PPDS
Sound pressure level (printing)55 dB
AC input voltage120 V
AC input frequency50 - 60 Hz
Mean time between failures (MTBF)20000 h
Storage temperature (T-T)-30 - 60 °C
Operating temperature (T-T)5 - 35 °C
Storage relative humidity (H-H)30 - 60 %
Operating relative humidity (H-H)10 - 80 %
Sustainability certificatesENERGY STAR
Cut sheet thickness range0.12 - 0.46 mm
Continuous paper thickness range0.46 - 0.46 mm
Standard interfacesParallel, USB 2.0
Weight and Dimensions IconWeight and Dimensions
Depth376 mm
Width437 mm
Height177 mm
