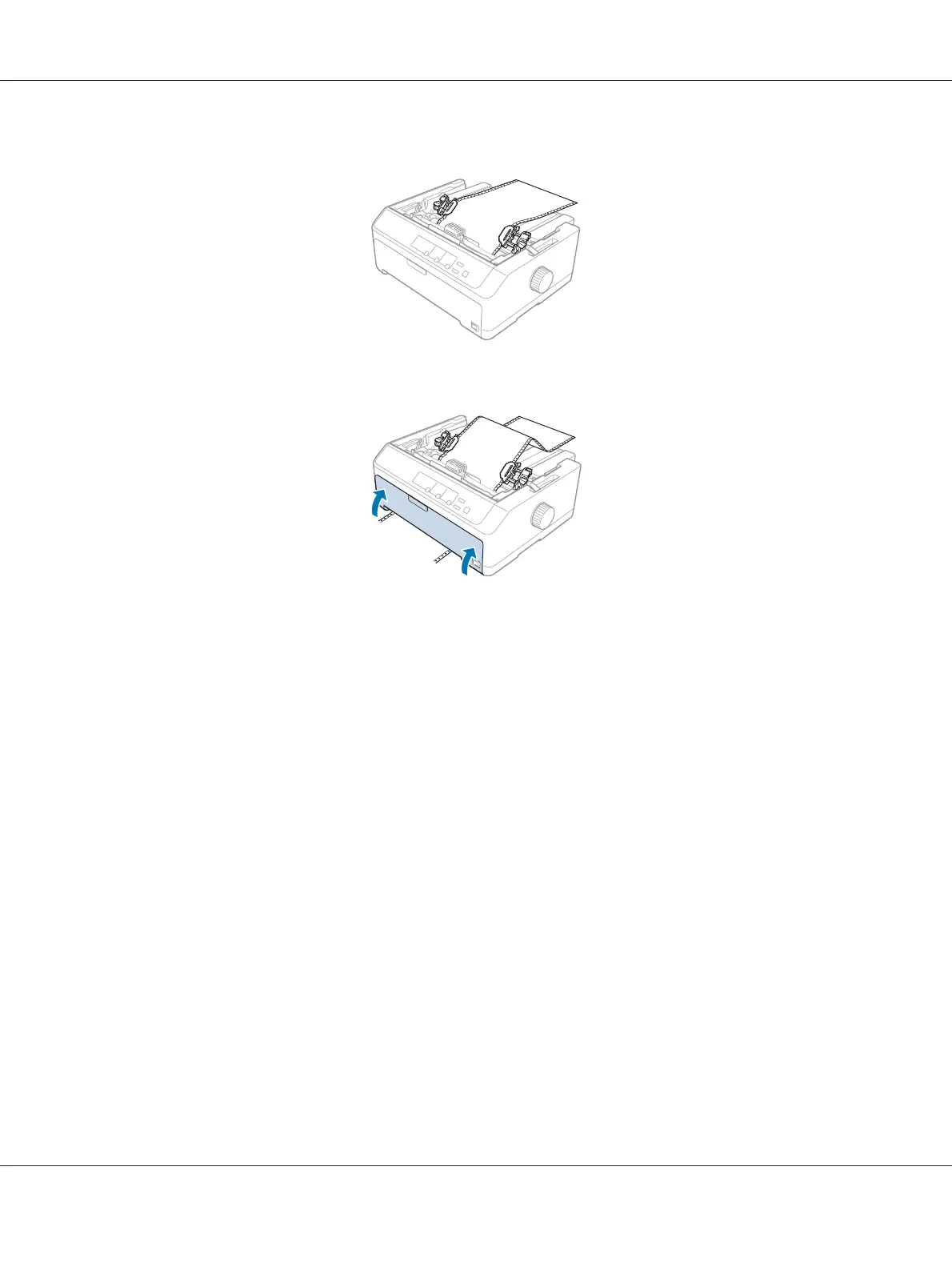

9. Slide the edge guides on the sheet guide to the center.
10. Close the front cover as shown below.
Note:
When using the bottom slot, you do not need to open the front cover.
11. Turn on the printer.
12. Remove any slack in the paper by pressing the LF/FF button.
!
Caution:
Always remove any slack from the paper; otherwise print quality may deteriorate.
13. If necessary, follow the steps in “Adjusting the top-of-form position” on page 56 to adjust the
current position of the paper.
!
Caution:
Never use the knob to adjust the top-of-form position; this may damage the printer or cause it
to lose the top-of-form position.
14. Attach the printer cover by inserting the front tabs into the slots on the printer, then lowering the
cover into place. Then close the paper guide cover.
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Paper Handling 37

Epson FX-890II Specifications

General

Color	No
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Character pitch	10 cpi
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)	115 cps
Maximum print speed (draft)	463 cps
Maximum printing width (columns)	80
Product color	Black
Page description languages	ESC P, PPDS
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Mean time between failures (MTBF)	20000 h
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 60 %
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Cut sheet thickness range	0.12 - 0.46 mm
Continuous paper thickness range	0.46 - 0.46 mm
Standard interfaces	Parallel, USB 2.0

Weight and Dimensions

Depth	376 mm
Width	437 mm
Height	177 mm
