Epson L3260 Series

A

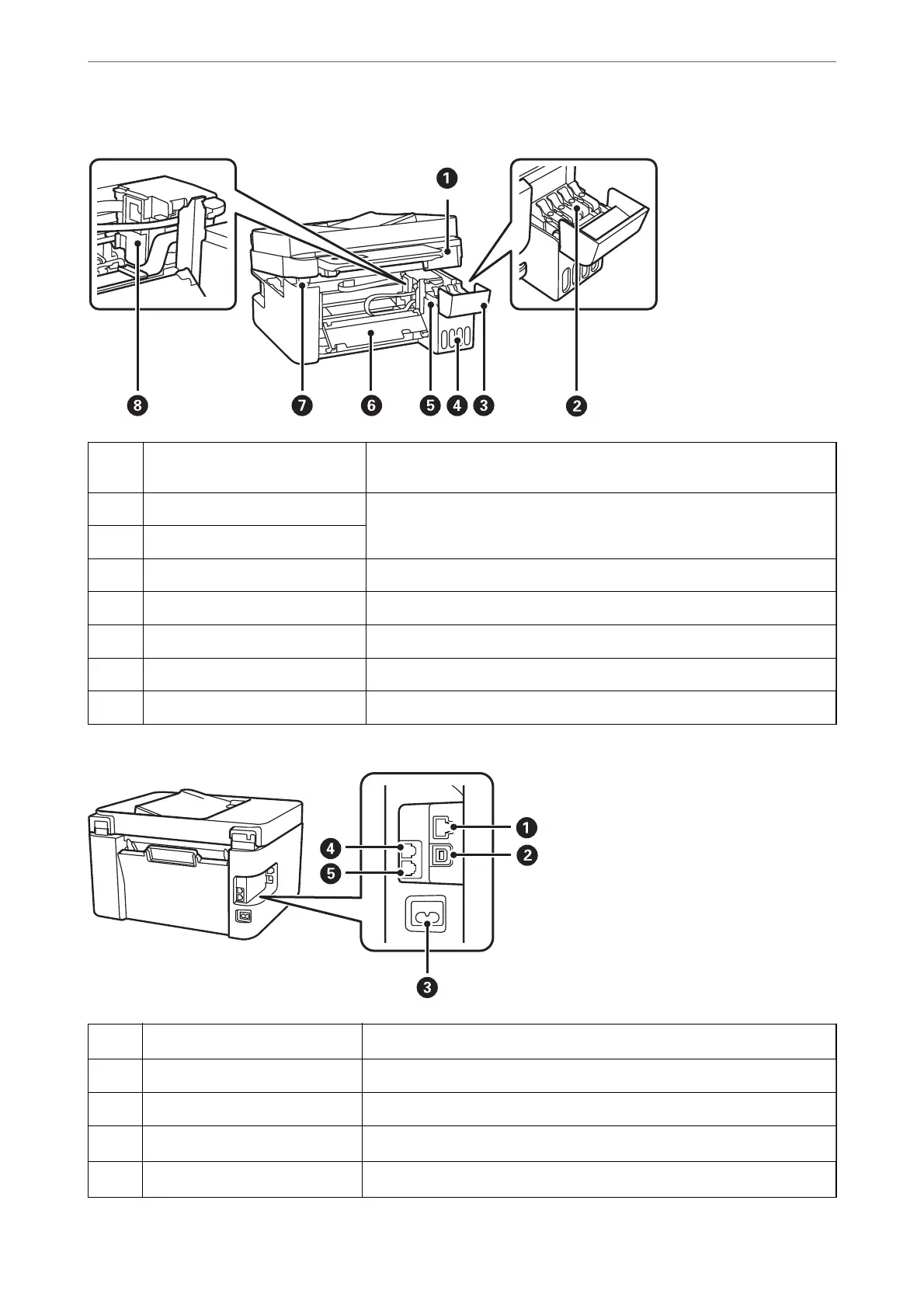

Scanner unit Scans placed originals. Open to remove jammed paper. This unit should
usually be kept closed.
B
Ink tank cap Open to rell the ink tank.
C
Ink tank cover
D
Ink tank unit Contains the ink tanks.
E
Ink reservoir tank (Ink tank) Supplies ink to the print head.
F
Inner cover Open when removing jammed paper inside the printer.
G
Scanner unit support Supports the scanner unit when opening it.
H
Print head Ink is ejected from the print head nozzles underneath.
A
LAN port
*
Connects a LAN cable.
B
USB port Connects a USB cable to connect with a computer.
C
AC inlet Connects the power cord.
D
EXT. port
*
Connects external phone devices.
E
LINE port
*
Connects a phone line.
