10.

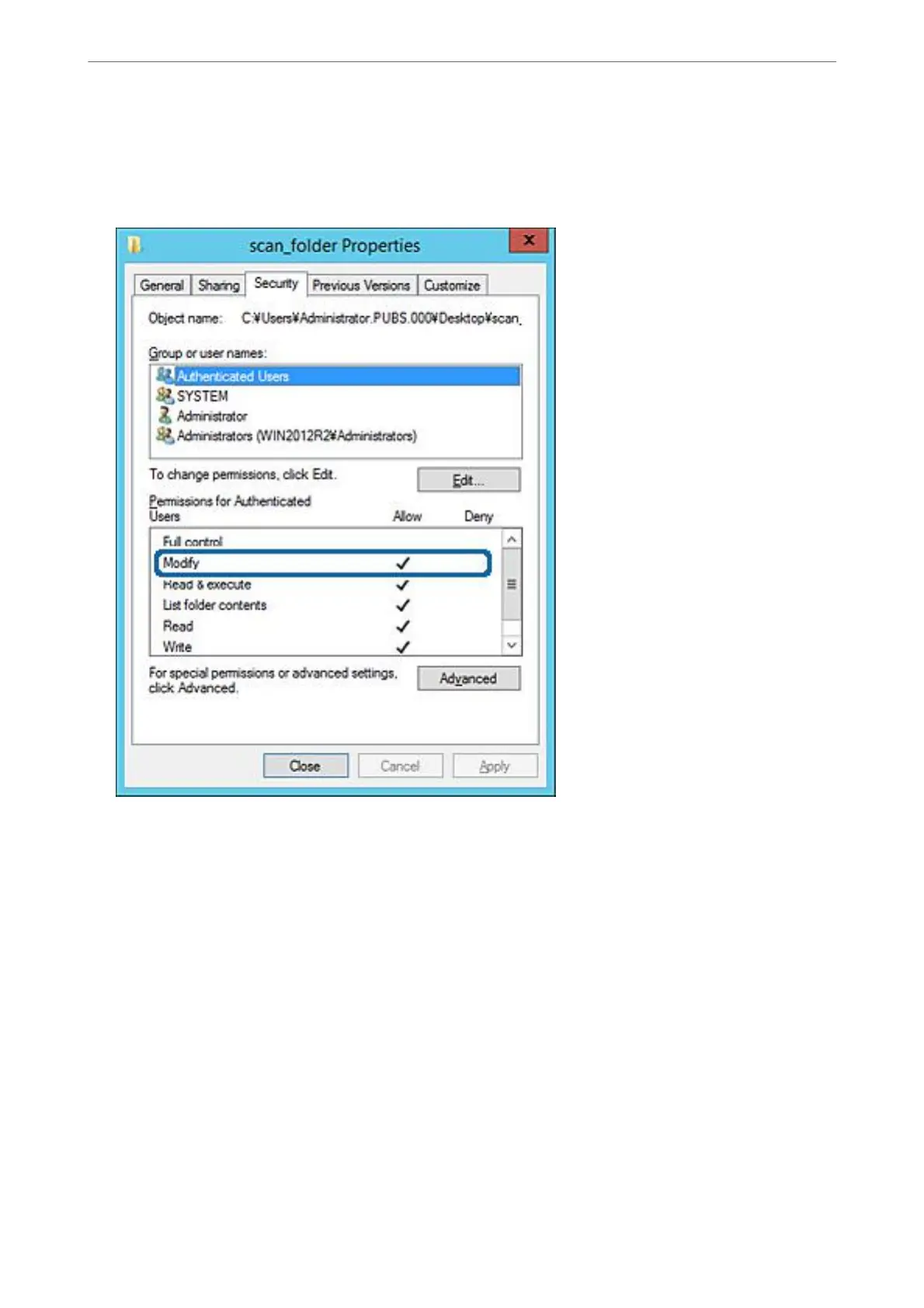

Check that Allow on Modify is selected in Permissions for Authenticated Users.

If it is not selected, select Authenticated Users, click Edit, select Allow on Modify in Permissions for

Authenticated Users, and then click OK.

Administrator Information

Settings to Use the Printer

Setting a Shared Network Folder

363
