2.3.1 Printing Area (Standard)

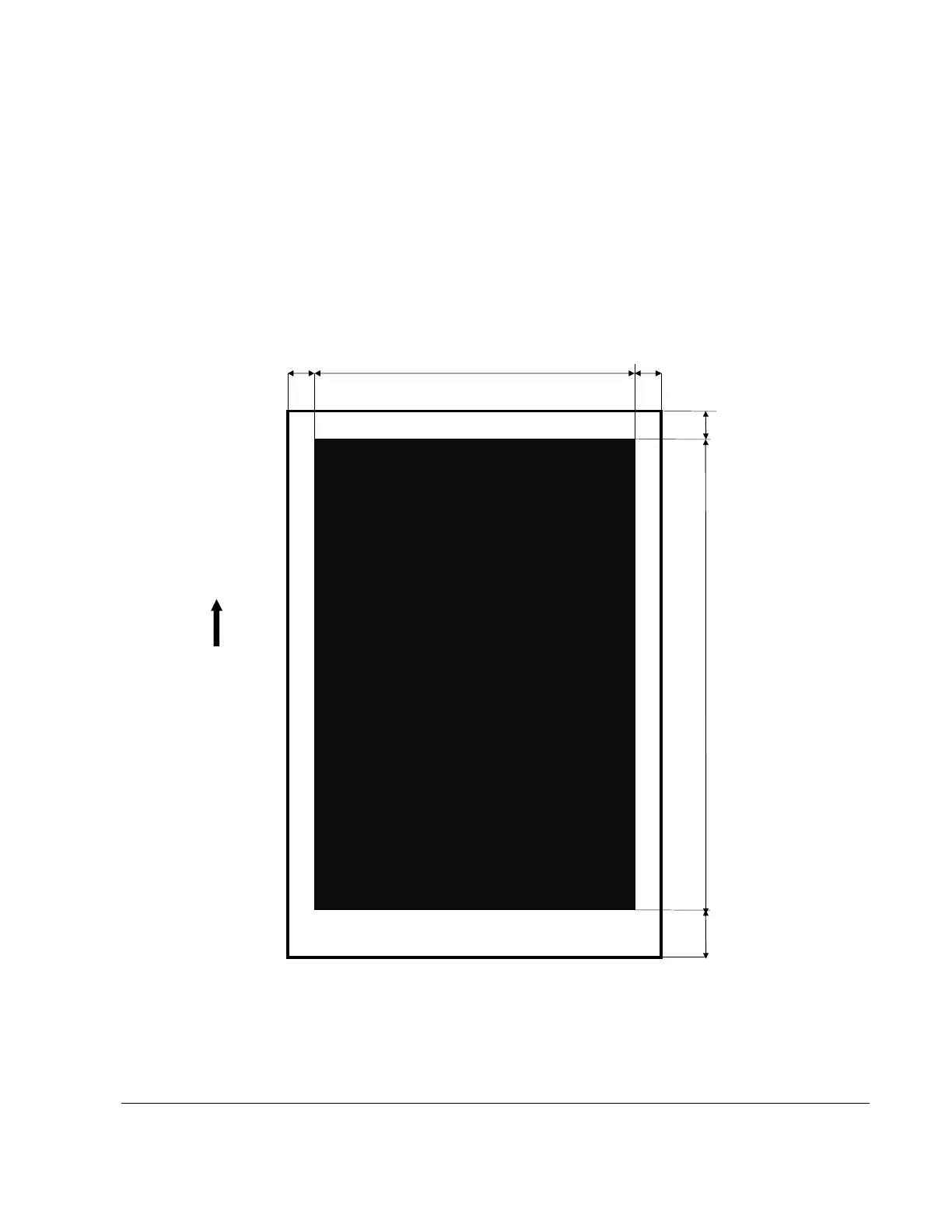

The printable areas of various paper sizes on this printer is defined hereafter. Values are expressed in dot units, where 1 dot =
1/360 inch. As is displayed in the following diagram, printable area can be defined as follows:
A = the width of the unprintable left margin area
A (Centered) = the width of the unprintable left margin area when the printable area is centered
B = the width of the printable area
B (Centered) = the width of the printable area when the printable area is centered
C = the width of the unprintable right margin area
C (Centered) = the width of the unprintable right margin area when the printable area is centered
D = the length of the unprintable top margin area
D (Centered) = the length of the unprintable top margin area when the printable area is centered
E = the length of the printable area
E (Centered) = the length of the printable area when the printable area is centered
Paper feed
direction
B
C
Left margin non-printable area
D
A
E
Printing area
Printing area
Top margin non
-
printable area
Bottom
margin
non-printable area
P
F
Right margin non-printable area
