4.4 Raster Graphics Data Format
The driver must generate appropriate data taking into account the nozzle positions in the printer are uniquely
vertically aligned.

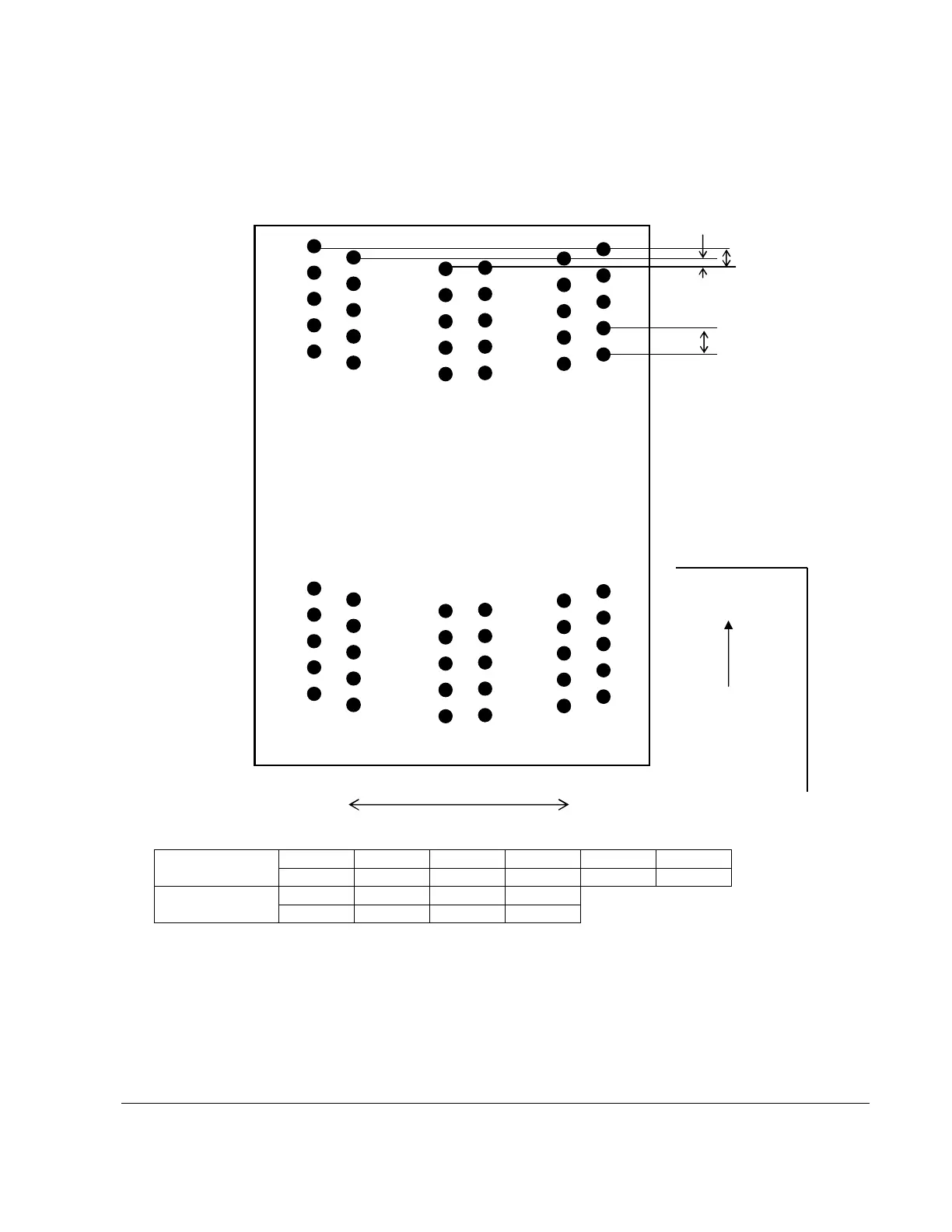

This printer’s nozzle constitution and the color order are shown below.
Head nozzle order F Column E Column D Column
C Column B Column
A Column
Cyan Magenta Yellow Black3 Black2 Black1
Ink cartridge order
D Column
C Column B Column A Column
Cyan Yellow Magenta Black
2/360 inch
1/120 inch
#1
#2
#3
#126
#127
#128
#1
#2
#3
#126
#127
#128
F-Column E-Column D-Column C-Column B-Column A-Column
C M Y K3 K2 K1
Feed Direction
Paper
Carriage Movement Direction
1/360 inch
To Next Page
