Maintenance 5. Firmware Update
RC700 / RC700-A Rev.23 133

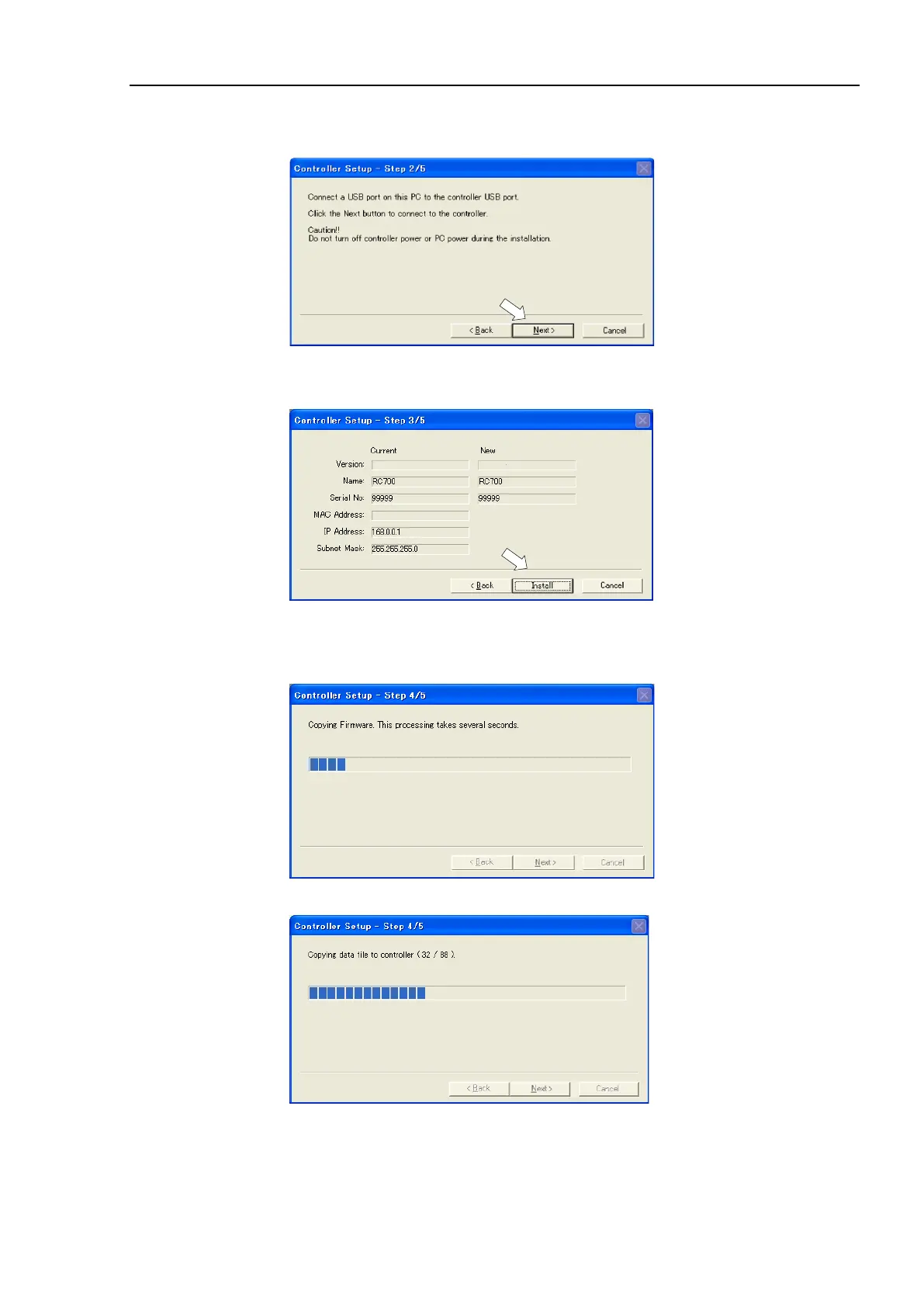

(6) Make sure that the development PC is connected to the Controller with a USB cable
and Click the <Next> button.
(7) Check the current firmware version and the new firmware version and click the
<Install> button.
(8) The firmware upgrade starts. It takes several minutes to complete.
Do not disconnect the USB cable during transfer or turn OFF the Controller or the
development PC.
(9) Continuous data file transfer starts.

NOTE

Epson RC700 Specifications

General

Maximum Axes	16
Communication Interfaces	Ethernet, EtherNet/IP, PROFINET, PROFIBUS, CC-Link, RS-232C, USB
Safety Standards	ISO 10218-1, ISO/TS 15066, IEC 61508, IEC 61511, ANSI/RIA R15.06
Operating System	VxWorks
Power Supply	24 VDC
