Maintenance 5. Firmware Update
134 RC700 / RC700-A Rev.23

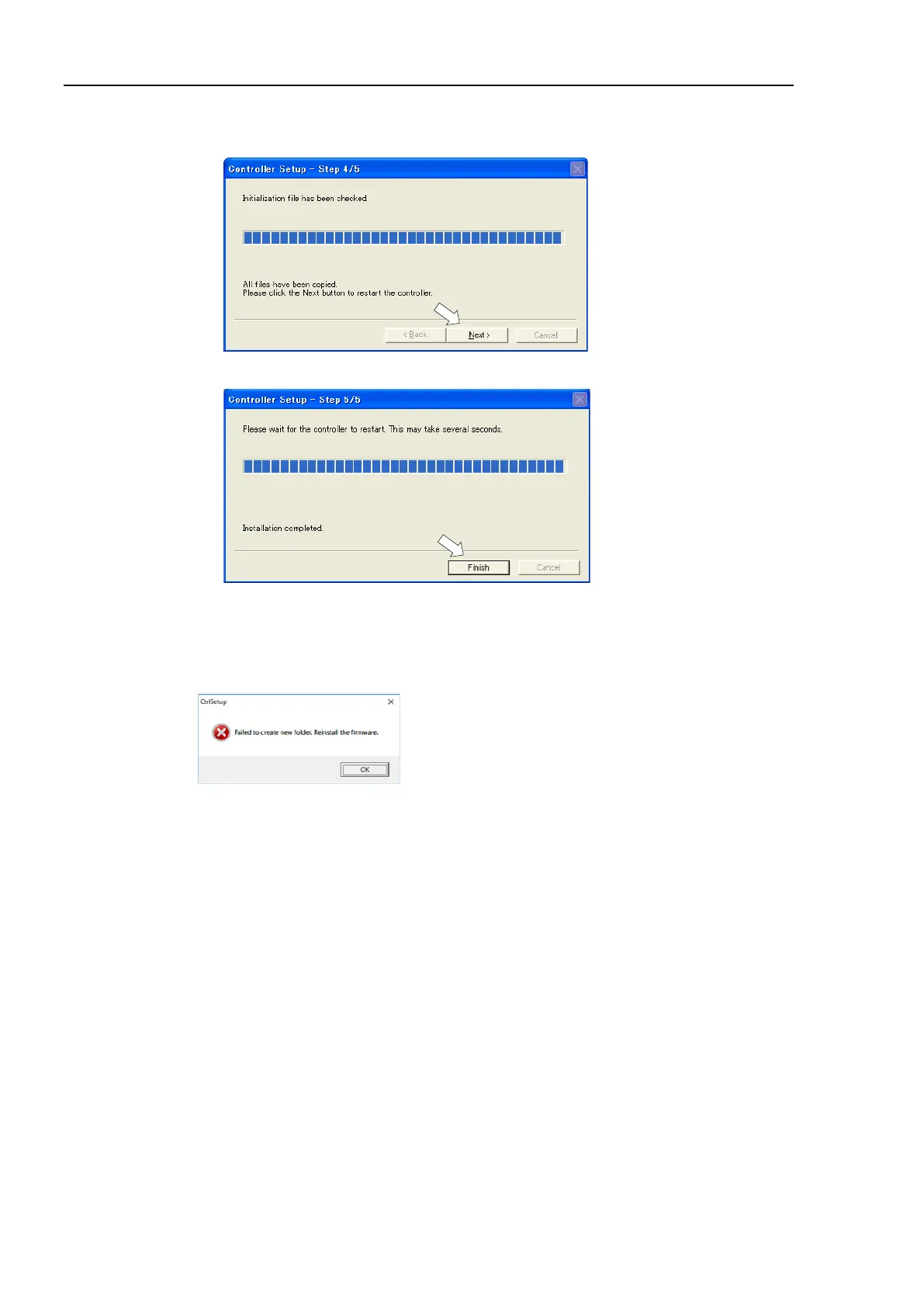

(10) The following dialog appears when transfer has completed. Click the <Next> button
to reboot the Controller.
(11) The following dialog appears after the Controller reboot. Click the <Finish> button.
The firmware upgrade is complete.
When you install the firmware (Ver.7.4.0.2 or later) on the controller which the firmware
(before Ver.7.4.0.2) has been installed, the following message is displayed.
When the message is displayed, re-install the firmware.

NOTE

Epson RC700 Specifications

General

Maximum Axes	16
Communication Interfaces	Ethernet, EtherNet/IP, PROFINET, PROFIBUS, CC-Link, RS-232C, USB
Safety Standards	ISO 10218-1, ISO/TS 15066, IEC 61508, IEC 61511, ANSI/RIA R15.06
Operating System	VxWorks
Power Supply	24 VDC
