Epson RC700 User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
RC700 / RC700-A Rev.23 157
MDB

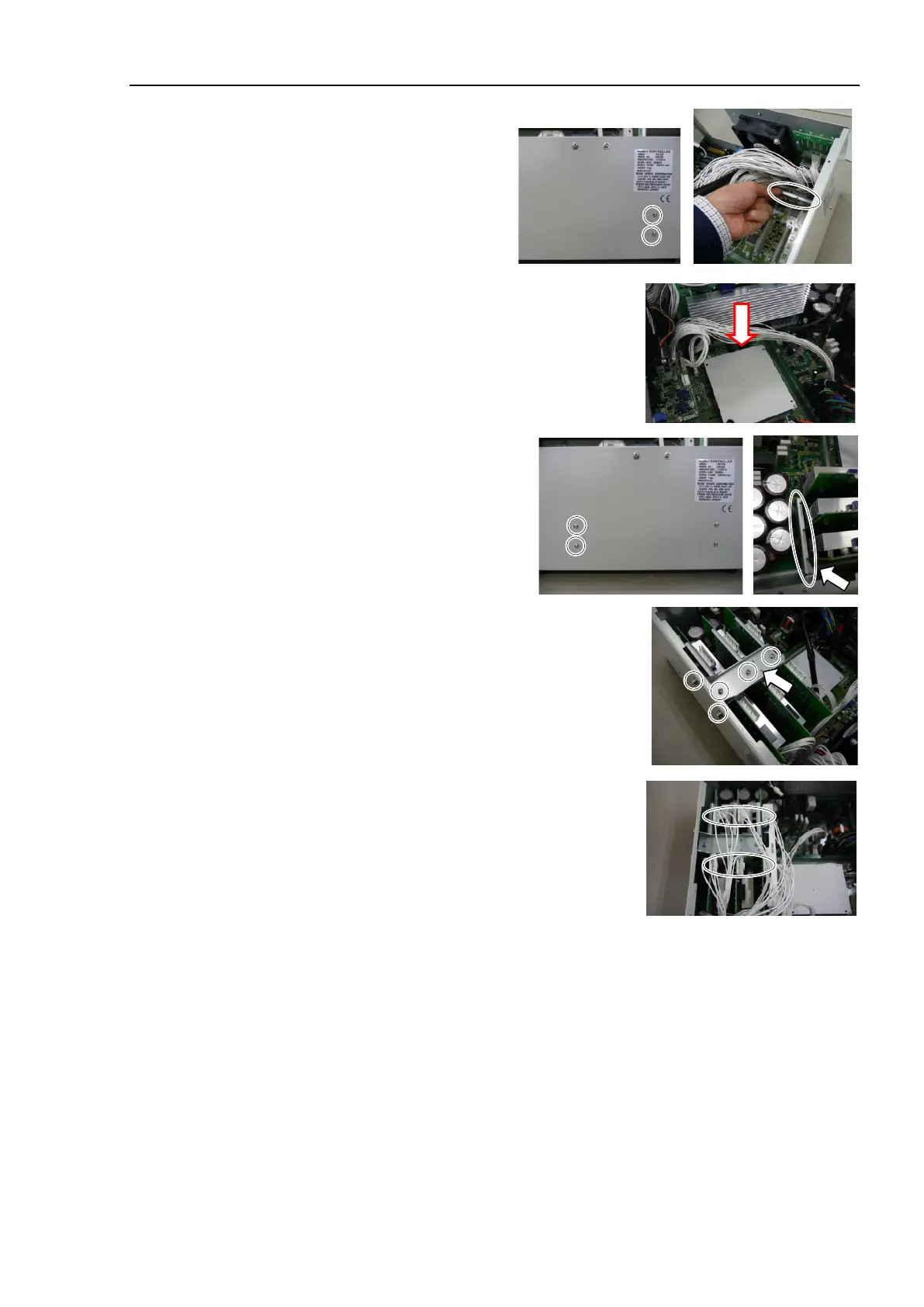

Installation
(1)
Install the MDB clamp 3.
(Mounting screw
×2)
(2)
Insert the MDBs in the direction shown in
the
picture.
Be careful not to misplace the
boards.
(3)
Install the MDB clamp 2.
(Mounting screw
×2)
Set the MDB clamp so that the
grooves fit
to MDBs.
(4)
Mount the MDB clamp 1.
(Mounting screw
×5)
(5)
Mount the output cable of each axis of
the MDBs.
When mounting the output cables, make sure that
the number
s on the MDB clamp 1 and on the
connector
s are the same.
(6
)
Mount
the Top Panel. (Mounting screw ×6)
(7
)
Connect
the power plug. Turn ON the Controller and make sure that the
Controller
starts properly without any vibration or abnormal noise.

NOTE

NOTE
