Epson RC700 User Manual

Safety 3. Installation
26 RC700 / RC700-A Rev.23
(5)

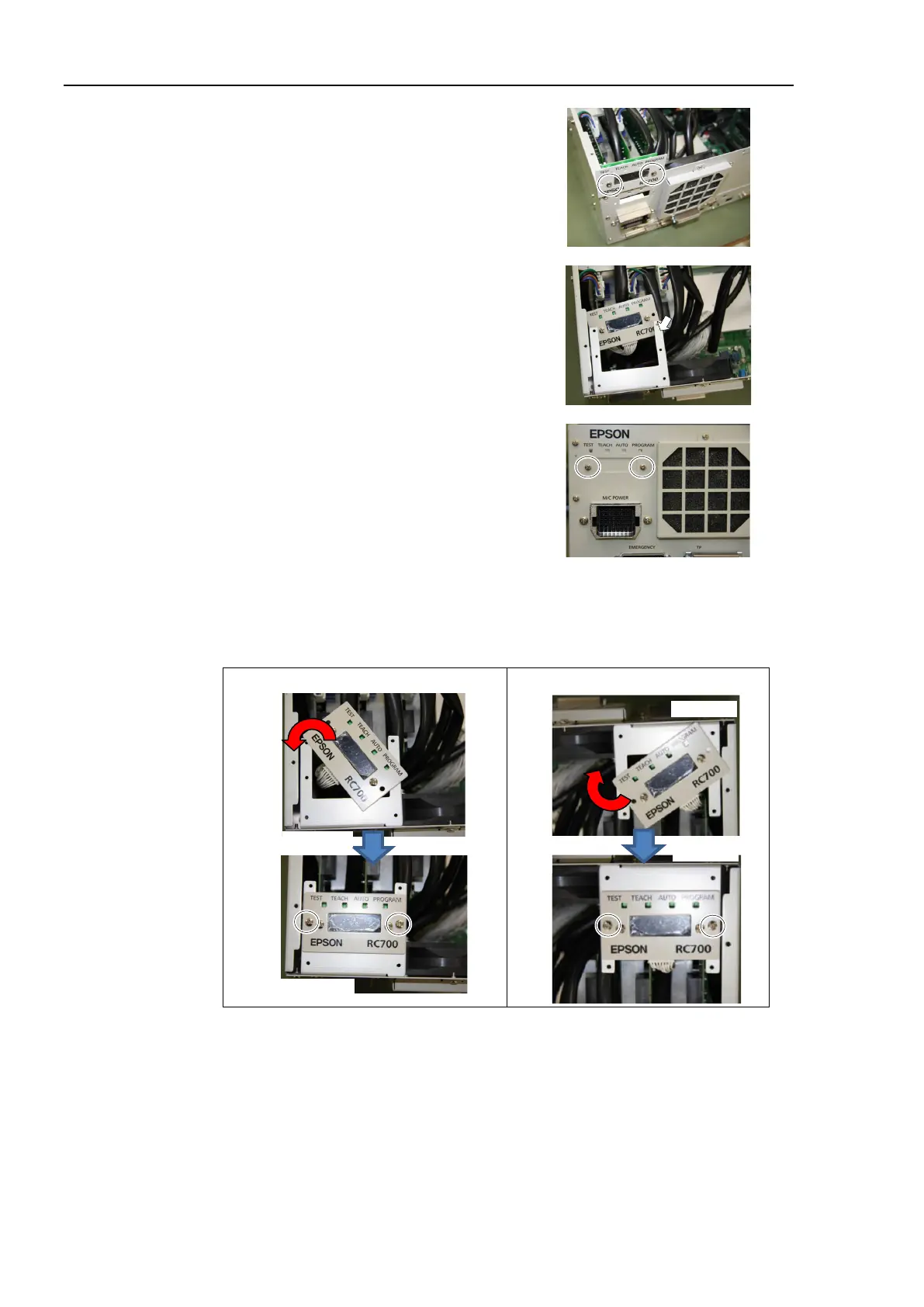

Mount the LED
DISPLAY PLATE to the LED/7
segment board. (Mounting screw
×2)
When installing the LED DISPLAY PLATE, be
careful not to drop any screw inside the
controller.
(6)
Mount the LED DISPLAY FIXING PLATE to
the controller.
(Mounting screw×2)
(7)
Mount the LED DISPLAY PLATE to the LED DISPLAY FIXING PLATE.
(Mounting screw
×2)
There are two installation methods.
Turn the LED DISPLAY PLATE horizontally to the
Top Cover in the direction
indicated by a red arrow.
Wall mounting with the front side down
Front side
Front side
(1)
(2)
Wall mounting with the front side up
Fron
t
side
Front side
(1)
(2)
Be careful not to pull the cable.

NOTE

NOTE

Epson RC700 Specifications

General

Maximum Axes	16
Communication Interfaces	Ethernet, EtherNet/IP, PROFINET, PROFIBUS, CC-Link, RS-232C, USB
Safety Standards	ISO 10218-1, ISO/TS 15066, IEC 61508, IEC 61511, ANSI/RIA R15.06
Operating System	VxWorks
Power Supply	24 VDC
