Epson RC700 User Manual

Safety 3. Installation
RC700 / RC700-A Rev.23 27
(
8)

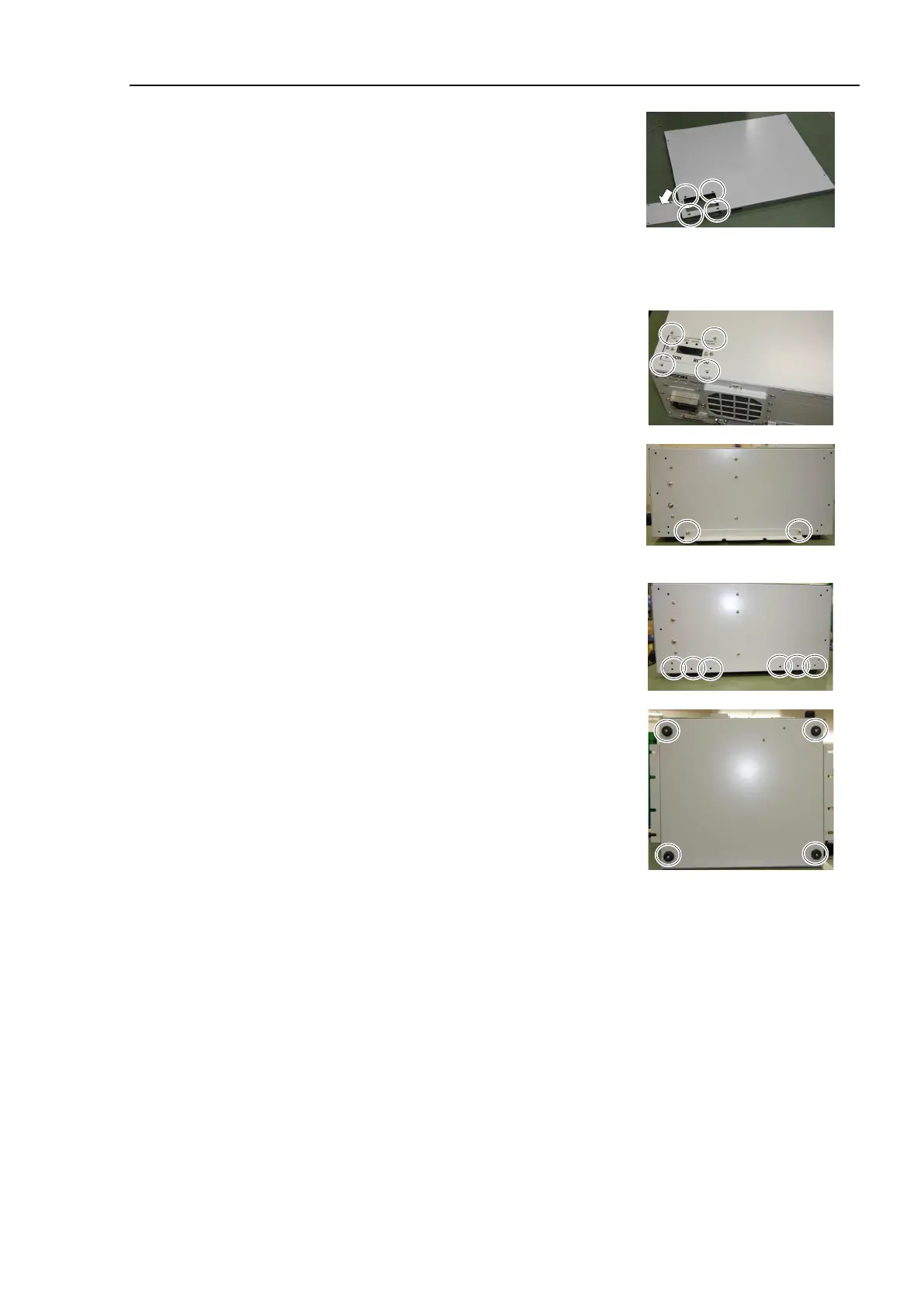

Remove the plate from the Top Cover.
(Mounting screw
×4)
The removed plate is not necessary when using this option.
The plate may be needed when the installation type is changed.
Please keep the plate for future use.
(9)
Mount the Top Cover.
(Mounting screw
×6)
(10)
Fix the Top Cover to the LED DISPLAY FIXING
P LAT E.
(Mounting screw
×4)
(1
1)
Mount the WALL
FIXING BRACKET.
(Mounting screw
×2 on both sides)
The bracket has 6 screw holes.
There are three ways of installation.
(1
2)
Remove the rubber hoot on the Controller
’s back side.
(Mounting screw
×4)
The removed rubber foot is not necessary when using this option.
The rubber foot may be needed when the installation type is changed.
Please keep the rubber foot for future use.
(13)
Mount the Controller to the wall. (Mounting
screw×8 M5 × 8 mm or longer)
Tightening torque 80 to 110 N·cm

NOTE

NOTE

NOTE

Epson RC700 Specifications

General

Maximum Axes	16
Communication Interfaces	Ethernet, EtherNet/IP, PROFINET, PROFIBUS, CC-Link, RS-232C, USB
Safety Standards	ISO 10218-1, ISO/TS 15066, IEC 61508, IEC 61511, ANSI/RIA R15.06
Operating System	VxWorks
Power Supply	24 VDC
