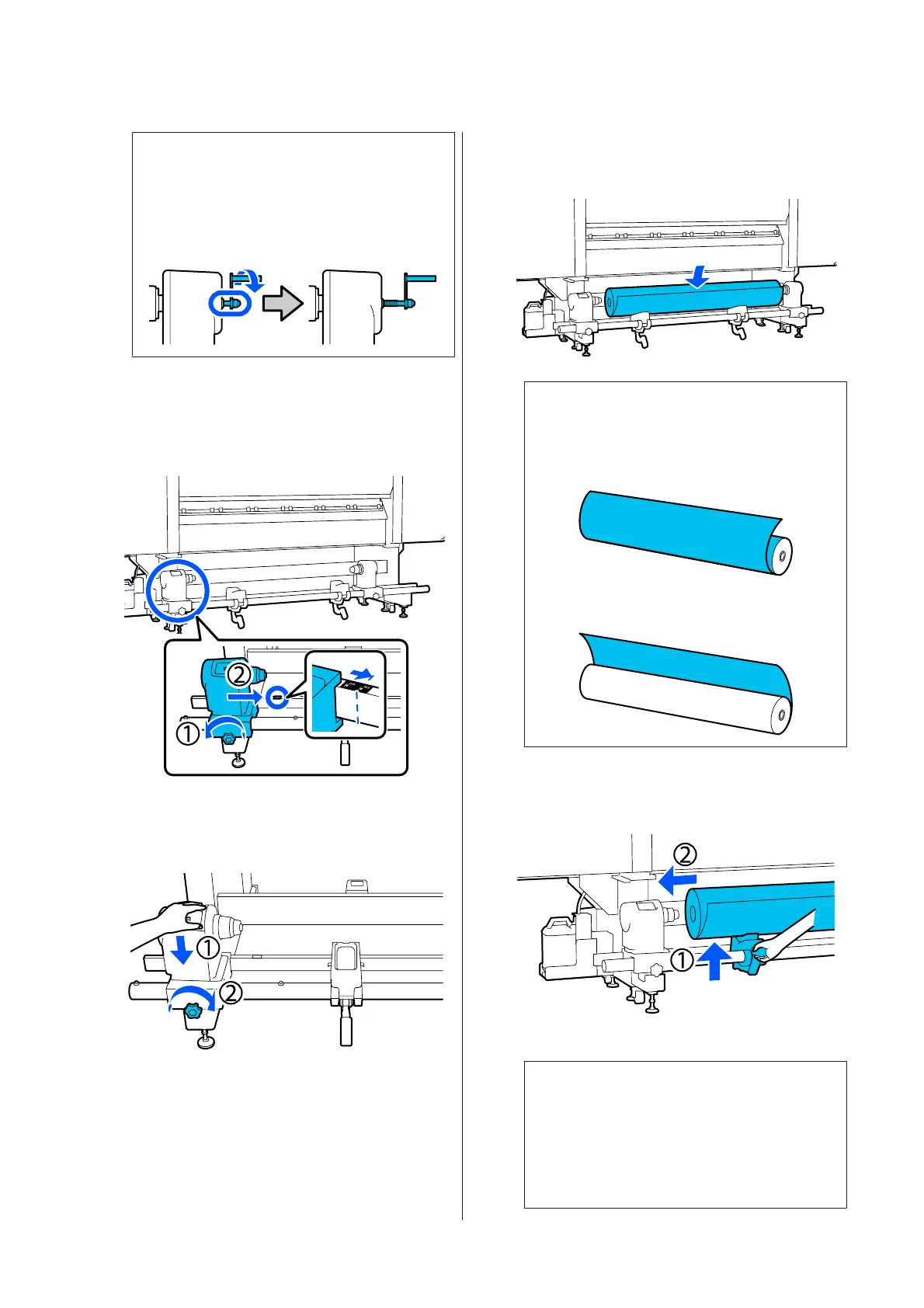

c
Important:
If the right holder handle shaft is not visible,
rotate the handle forward until it stops. The
media can not be properly loaded if the handle
shaft is not visible.
F
Loosen the left media holder fixing screw and
move the media holder to the set position
according to the inner diameter of the roll core of
the media that will be loaded.
G
While pressing from the top of the media holder,
tighten the fixing screw until it no longer turns.
Tighten it so the media holder does not move.
H
Place the media on the roll support. Have the roll
support moved inward for about 20 cm from the
roll end.
Note:
The method of placing varies as follows depending
on how media is rolled.
Printable Side Out
Printable Side In
I
While lifting the lift lever, move the roll support
to the left, and firmly insert the roll core of the
media onto the media holder.
Note:
If the roll of media has an outer diameter that is less
than 140 mm, the roll core will not reach the media
holder when raised using the lift lever.
Raise it with your hands, and insert the roll core
into the media holder.
SC-F10000 Series User's Guide
Basic Operations
68
