Item Description

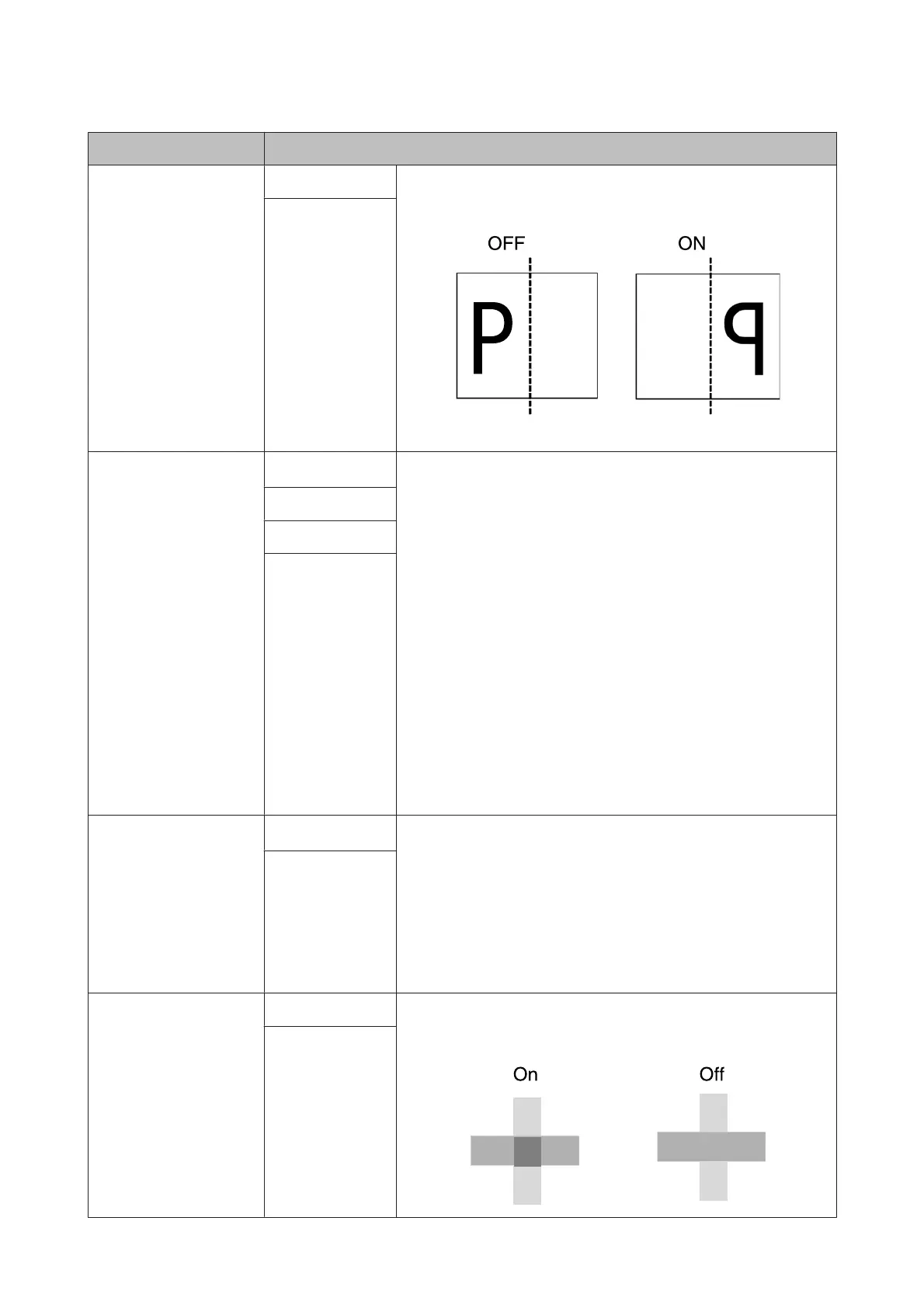

Mirror On Select whether to flip horizontally (mirror) using the center of the Output
Size width as the basis line and then print (On) or print without flipping
horizontally (Off).
If an angle is specified for Rotate, the rotated result is flipped horizontally.
Off
*
Select Palette
Software
*
From the following selections, choose the palette that specifies the color
and thickness of the logical pen.
❏ Software: Print according to the pen configurations set in the
application, and ignore the built-in palette of the printer.
❏ Default: Print according to the settings of the built-in palette of the
printer specified in advance. The settings of the palette cannot be
changed. The built-in palette specifies a logical pen with a pen width
of 0.35 mm and 256 colors. For a sample of colors that correspond to
the color numbers, see the included "Color Palette.pdf".
"Color Palette.pdf" recommends checking a print result that was
printed with Print Quality set to CAD / Line Drawing (Color) in the
included printer driver.
❏ Palette A/Palette B: The printer prints according to the settings of
the built-in palette that you specified for Define Palette. If Define
Palette setting is not set, the results are the same as when Default is
selected.
When Default/Palette A/Palette B is set, the pen configurations set in the
application are ignored.
Default
Palette A
Palette B
Define Palette
Palette A
*
You can define a unique built-in palette by specifying the pen width and
color for the 16 types of logical pen. There are two types of definable
built-in palettes: Palette A and Palette B. Select a palette to be defined,
select Pen Number, and then define the Pen Width and Pen Color for
each pen. For a sample of colors that correspond to the color numbers, see
the included "Color Palette.pdf".
"Color Palette.pdf" recommends checking a print result that was printed
with Print Quality set to CAD / Line Drawing (Color) in the included
printer driver.
Palette B
Line Merge On Select whether to merge the intersection of the overlapping lines within
the image according to the MC command of the data (On) / Move lines to
be printed later to the front at intersections (Off).
Off
*
SC-T7200 Series/SC-T5200 Series/SC-T3200 Series/SC-T7200D Series/SC-T5200D Series User's Guide
Using the Control Panel Menu
155
