Epson Stylus C67 Service Manual

EPSON Stylus C67/C68/D68 Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedures 51
4.3.1.6 Waste Ink Pad
1) Remove the Housing, Lower Assy.. (p47)
2) Remove the eight Waste Ink Pad and the protective sheet from the Housing,
Lower.

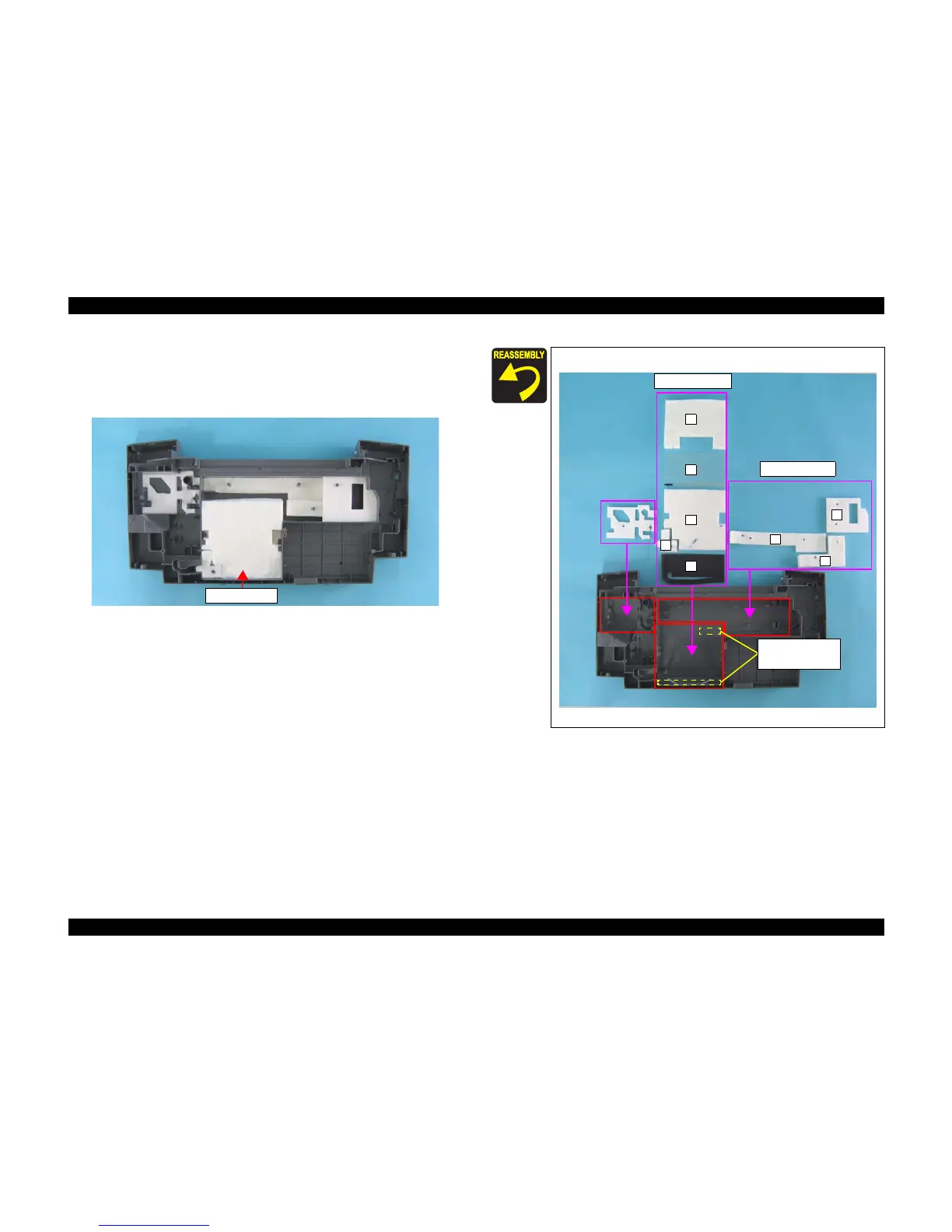

Figure 4-20. Removing Waste Ink Pad
Waste Ink Pad
Attach the Waste Ink Pads correctly with reference to Figure 4-21.
Figure 4-21. Attaching Waste Ink Pads
1
2
3
4
5
1
2
3
Installation Order
Installation Order
Double-sided Tape
Attachment Areas
