EPSON Stylus C110/C120/D120 Revision B
DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 100
2. Remove the screws (x2) that secure the ASF Unit.

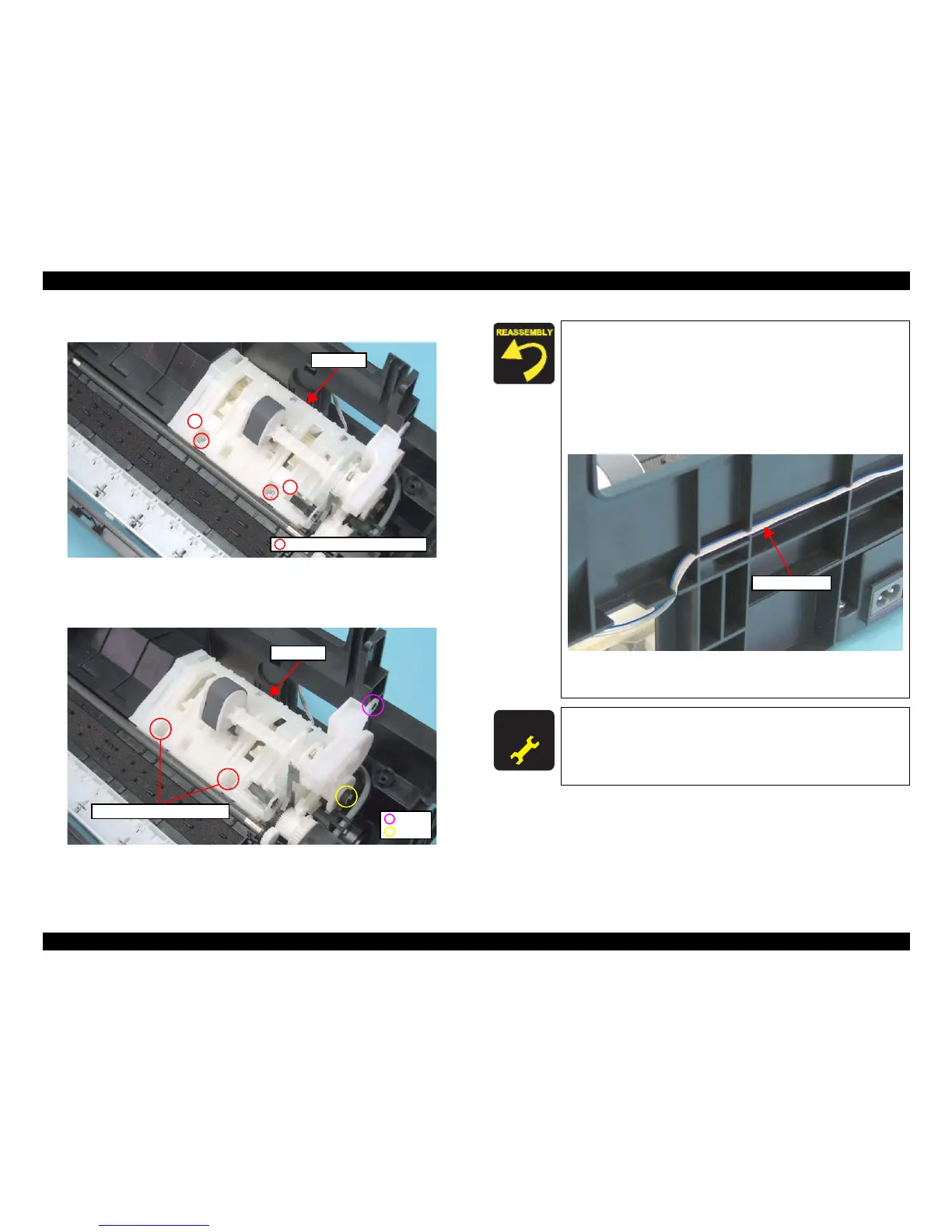

Figure 4-70. Removing ASF Unit (1)
3. Release the guide pins (x3) of the Base Frame and the shaft (x1) of the ASF Unit,
and then remove the ASF Unit.
Figure 4-71. Removing ASF Unit (2)
C.B.P. 3x8, F/Zn-3C (6±1kgfcm)
ASF Unit
1
2
ASF Unit
Dowel
Shaft
Guide Pin and Positioning Hole
 When installing the ASF Unit, be sure to align the guide pins
(x2) of the Base Frame with the positioning holes (x2) of the
ASF Unit shown in the
Figure 4-70.
 When routing the PE Sensor cable, pay attention to the
following instructions.
• Route the cable in the order given in Figure 4-68.
• Make sure to face the blue line of the cable toward the Base
Frame.
Figure 4-72. Routing PE Sensor Cable
• Check if there is no slack in the cable.
A D J U S T M E N T
R E Q U I R E D
 After removing/replacing the ASF Unit, be sure to perform the
specified adjustment. See
Chapter 5 “ ADJUSTMENT”
(p.107)
 After replacing the ASF Unit, be sure to perform the required
lubrication. See
Chapter 6 “ MAINTENANCE” (p.116)
PE Sensor Cable
