Epson Stylus D120 User Manual

EPSON Stylus C110/C120/D120 Revision B
PRODUCT DESCRIPTION Operation Buttons & Indicators (LEDs) 18

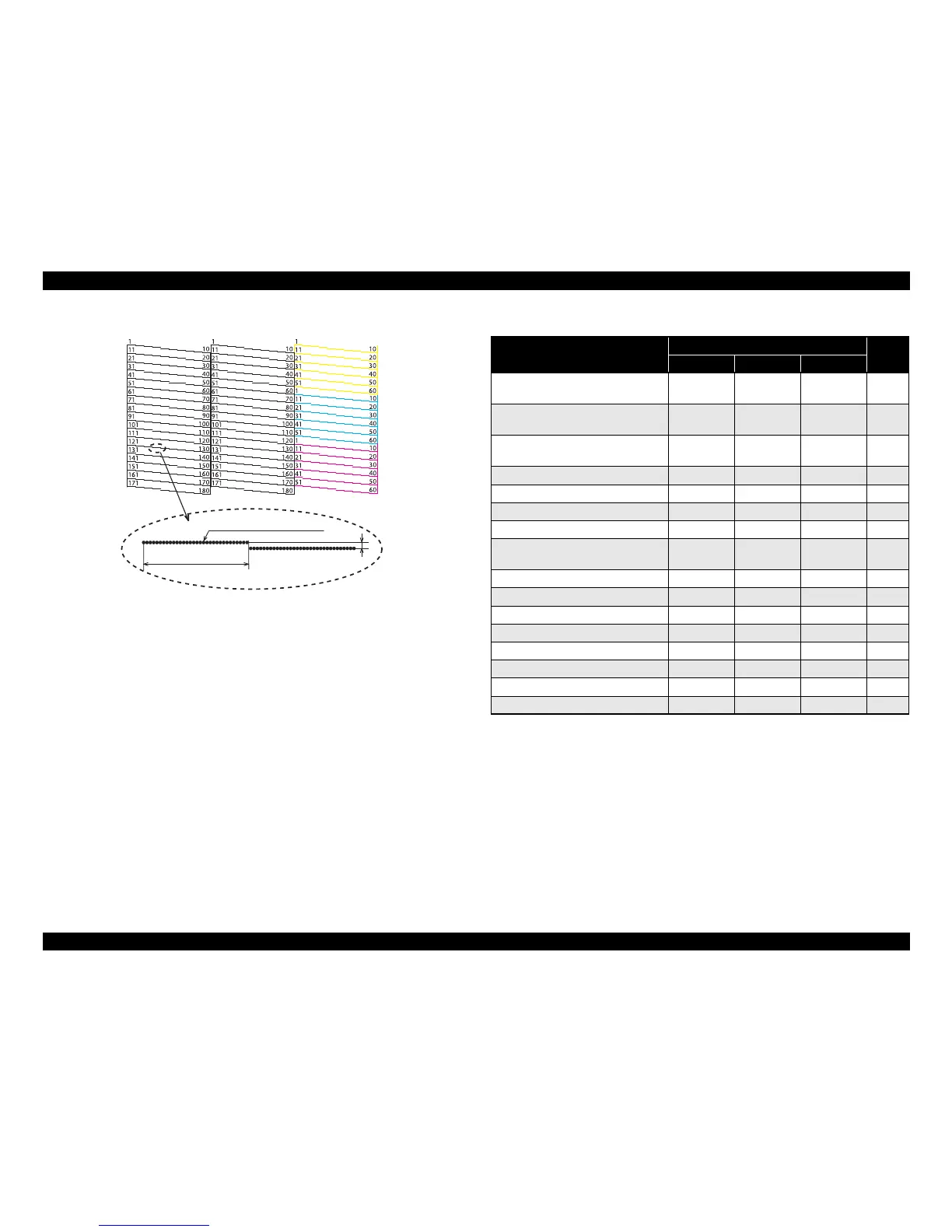

Figure 1-5. Nozzle Check Pattern
Note : --: No change
Flash: Repeats turning On and Off every 1.25 seconds.
Flash 2: Repeats On for 0.5 seconds, Off for 0.5 seconds,
On for 0.5 seconds, and Off for 1.0 second.
Flash at high speed: Repeats turning On and Off every 0.5 seconds.
Flashes alternately 1: same as the “Flash”
Flashes alternately 2: Repeats turning Off and On every 1.25 seconds.
Note *1 : When two or more errors occur at the same time, the one with higher priority will be
indicated.
*2 : All LEDs light for 0.2 seconds when a reset request is received.
360 dpi VSD1
0.142 mm (1/180 inch)
32 dots
Note : The numbers shown in the figure are nozzle numbers. They are not printed on
an actual nozzle check pattern.
Table 1-14. Indicators (LEDs) Function
Printer Status
Indicators (LEDs)
Pri-
ority*
1
Power Ink Paper
Powering off
Flashes at
high speed
OFF OFF 1
Fatal error OFF
Flashes at
high speed
Flashes at
high speed
2
Maintenance request OFF
Flashes
alternately 2
Flashes
alternately 1
3
Paper jam -- -- Flashes 5
Multi-feed error -- -- ON 6
No paper error -- -- ON 6
Cover open error -- Flashes 2 Flashes 2 6
Ink cartridge replacement is in
progress
Flashes -- -- 7
Ink sequence is in progress Flashes -- -- 8
CSIC error -- ON -- 9
No ink cartridge error or ink-out error -- ON -- 9
During feeding or ejecting paper Flashes -- -- 10
Data processing Flashes -- -- 10
Ink level low error -- Flashes -- 11
Power ON ON -- -- 12
Reset request*
2
ON ON ON -

Epson Stylus D120 Specifications

General

Color	Yes
Print head nozzles	360
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	37 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Total output capacity	120 sheets
Envelopes sizes	C6, DL
Custom media sizes	13 x 20 cm, 102 x 181 mm
Paper tray media types	Photo paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 98SE / ME / 2000 / XP / XP-x64 / Vista Mac OS 10.2.8
Interface	USB 2.0
Power requirements	AC 220-240 V
Compatible ink types, supplies	DURABrite Ultra Ink
USB 2.0 ports quantity	1
Sound power level (printing)	39 dB
Package depth	493 mm
Package width	294 mm
Package height	233 mm
Package weight	5046 g
Bundled software	Epson Creativity Suite, Epson Easy Photo Print, Epson Web-To-Page
Quantity per pack	1 pc(s)
Sustainability certificates	ENERGY STAR
Power consumption (standby)	2 W
Power consumption (printing)	15 W
Country of origin	Indonesia
Market positioning	Home & office
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2014 mm
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	64 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	240 mm
Width	435 mm
Height	161 mm
