Epson Stylus D120 User Manual

EPSON Stylus C110/C120/D120 Revision B
DISASSEMBLY/ASSEMBLY Removing Board 80

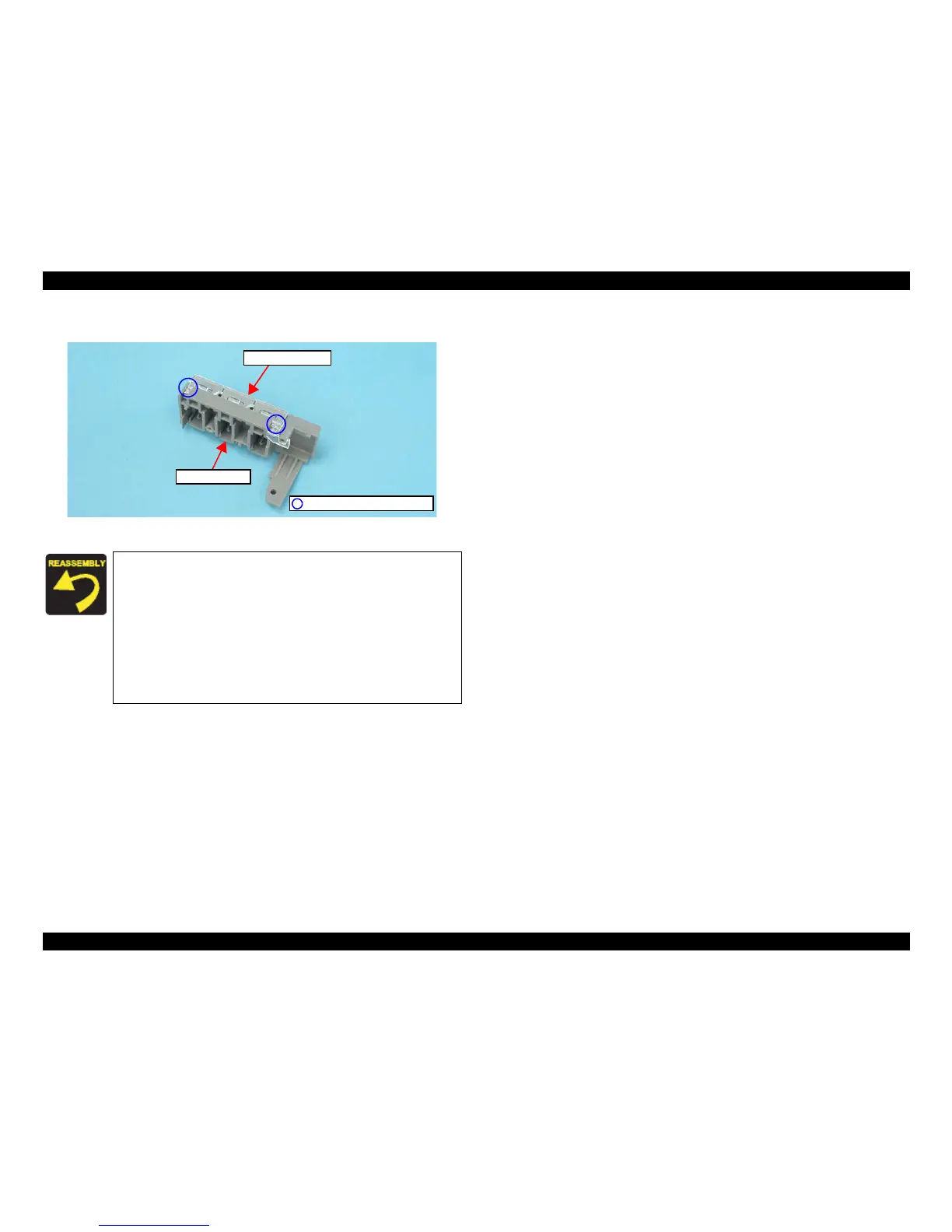

4. Remove the Light Guide Tube from the Panel Housing.
Figure 4-20. Removing Light Guide Tube
 Insert the guide pins (x2) of the Panel Housing into the
positioning holes (x2) of the Light Guide Tube as shown in
Figure 4-20.
 Insert the guide pins (x2) of the Panel Housing into the
positioning holes (x2) of the Main Board as shown in
Figure
4-19.
 When routing the Panel Unit FFC, tape the FFC to the Panel
Unit with a double-sided tape. Both edge of the Panel Unit
FFC must be aligned with the marking-off line as shown in
Figure 4-18.
Panel Housing
Light Guide Tube
Guide Pin and Positioning Hole

Epson Stylus D120 Specifications

General

Color	Yes
Print head nozzles	360
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	37 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Total output capacity	120 sheets
Envelopes sizes	C6, DL
Custom media sizes	13 x 20 cm, 102 x 181 mm
Paper tray media types	Photo paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 98SE / ME / 2000 / XP / XP-x64 / Vista Mac OS 10.2.8
Interface	USB 2.0
Power requirements	AC 220-240 V
Compatible ink types, supplies	DURABrite Ultra Ink
USB 2.0 ports quantity	1
Sound power level (printing)	39 dB
Package depth	493 mm
Package width	294 mm
Package height	233 mm
Package weight	5046 g
Bundled software	Epson Creativity Suite, Epson Easy Photo Print, Epson Web-To-Page
Quantity per pack	1 pc(s)
Sustainability certificates	ENERGY STAR
Power consumption (standby)	2 W
Power consumption (printing)	15 W
Country of origin	Indonesia
Market positioning	Home & office
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2014 mm
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	64 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	240 mm
Width	435 mm
Height	161 mm
