Epson Stylus Photo R3000 Service Manual

Epson Stylus Photo R3000 Revision A

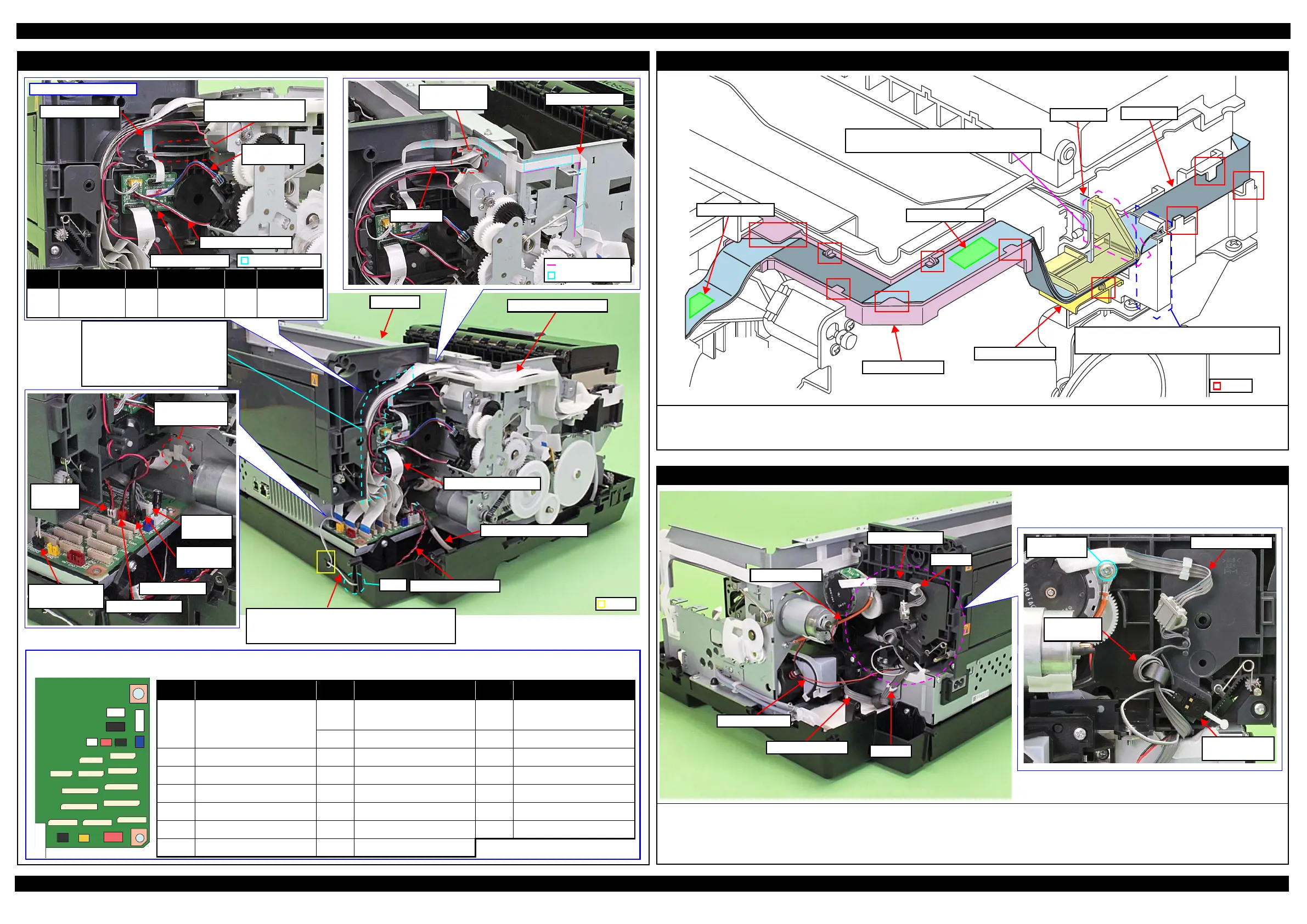

Disassembly/Reassembly Routing FFCs/cables 30
Confidential
Rear left of printer (1)
CN # Name CN # Name CN # Name
CN1
Stopper Tray
Open Sensor Relay Cable
CN8 Head FFC CN20
Roll Paper Guide
Open Sensor Cable
CN9 Head FFC CN22 Decomp Motor Cable
CN2 CSIC FFC CN10 Head FFC CN115 CR Motor Cable
CN3 PictBridge Holder Cable CN11 Head FFC CN116 PF Motor Cable
CN4 Panel FFC CN12 Head FFC CN117 Pump Motor Cable
CN5 Panel FFC CN13 Mist Board FFC CN118 APG Motor Cable
CN6 ASF Relay Board FFC CN15 CSIC FFC CN119 ASF Motor Cable
CN7 Wireless LAN Module Cable CN19 CSIC FFC
Route Panel FFC
over ASF Assy.
Reference line
Double-sided tape
PF Encoder FFC
Panel FFC
Around ASF Relay Board
Route PE Sensor Cable
under rib of ASF Assy.
ASF Relay Board
APG HP Sensor Cable
APG Position
Sensor Cable
Double-sided tape
PF Encoder FFC
Secure PF Motor
Cable with clamp.
ASF Motor
Cable
Pump Motor
Cable
CR Motor
Cable
Roll Paper Guide
Open Sensor Cable
APG Motor Cable
PF Motor Cable
Head FFC/CSIC FFC
PictBridge Holder Cable
Stopper Tray Open Sensor Relay Cable:
Pull out through hole of Lower Housing and make
one turn around hook, then connect to Main Board.
Decomp Motor Cable
CN2
CN15
CN11
CN9
CN8
CN10
CN12
CN4CN13
CN5
CN19
CN1
CN7
CN20
CN6
CN118
CN115
CN119
CN3
CN117
CN116
CN22
When routing the following FFCs,
route them through groove of ASF
Assy under Roll Paper Guide Assy.
 Head FFC
 CSIC FFC
 Panel FFC
Hook
Refer below for the connector layout on the Main Board for the cables/FFCs. The connector numbers are marked on each FFC, therefore, make sure of it when
connecting them.
ASF Relay Board FFC
CN # Name CN # Name CN # Name
CN1
ASF Relay
Board FFC
CN2
PE Sensor
Cable
CN6
PF Encoder
FFC
ASF Assy
Hole
Rear left of printer (2)
 Fold the Head FFC / CSIC FFC along the hold line, and route them through the ribs (x6) of the Cable Holder Rear, Cable Holder Left, and the ribs (x3) on
the left side of the I/C Holder Unit.
 Route the CSIC FFC over the Head FFC and secure the CSIC FFC with double-sided tape at the points shown in the figure above.
Route Head FFC through groove on left side of I/C
Holder Unit, and route it to Cable Holder Left.
Route CSIC FFC through groove of Cable Holder
Left, and route it to Cable Holder Rear.
Double-sided tape
Rib
Head FFC
CSIC FFC
Cable Holder Rear
Double-sided tape
Cable Holder Left
Rear right of printer
 Screw the grounding wire together with the ASF Motor.
 Connect the ASF Motor Cable to the ASF Motor Relay Cable, and then secure it with the clamp A.
 Be careful not to let the ASF Motor Relay Cable interfere with the Roll Paper Guide Open Sensor when routing it.
 Secure the Pump Motor Cable with the clamp B.
Clamp A
ASF Motor Cable
ASF Motor Cable
Clamp B
Roll Paper Guide
Open Sensor
CR Motor Cable
Grounding wire
Pump Motor Cable
Screw with
ASF Motor
ASF Motor
Relay Cable

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
