Epson Stylus Photo R3000 Service Manual

Epson Stylus Photo R3000 Revision A
Disassembly/Reassembly Routing FFCs/cables 31
Confidential

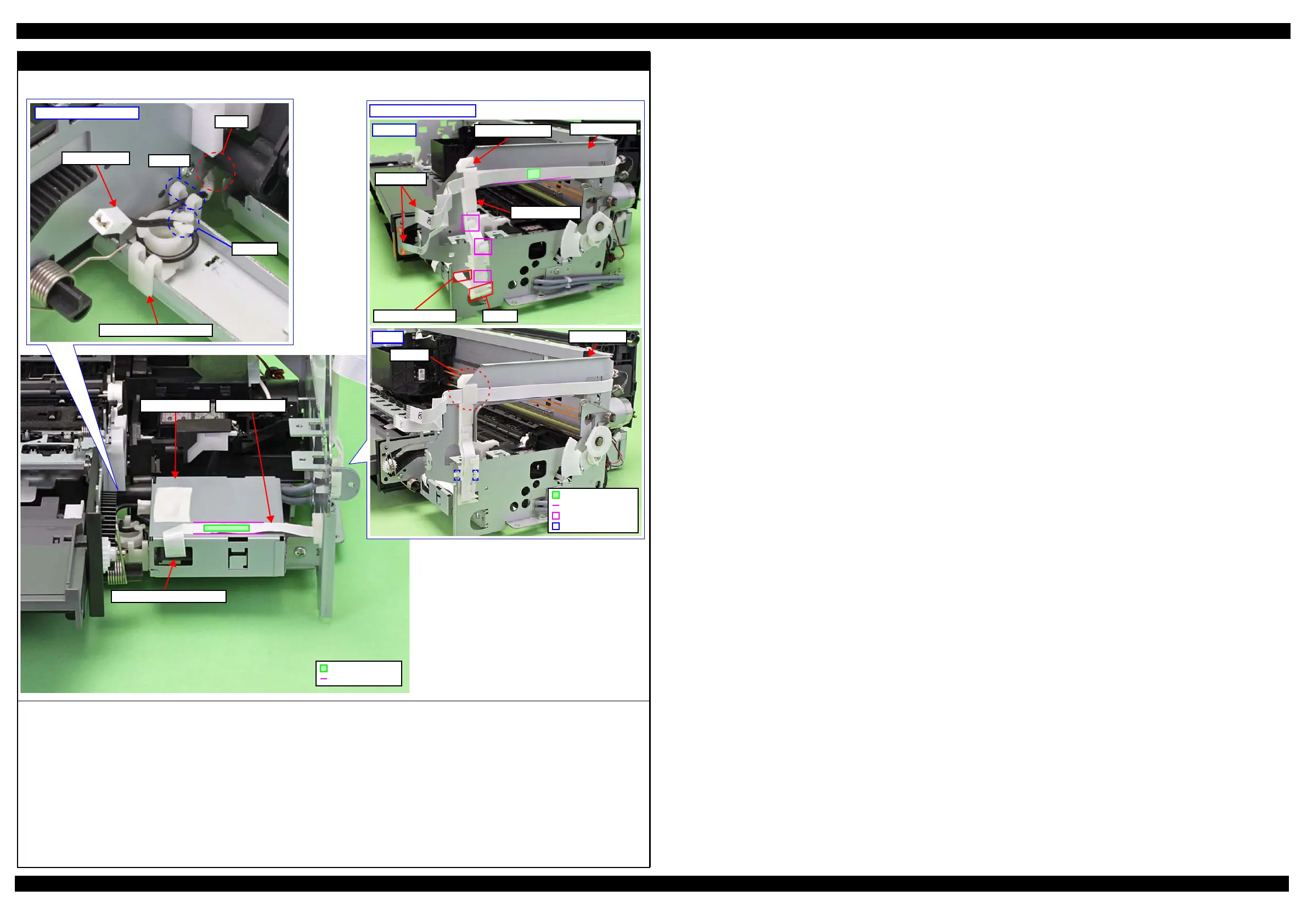

Mist Board Assy / Right side of the Main Frame
 When routing the FFCs/cables on the Mist Board Assy and the FFC on right side of the Main Frame, follow the procedure below.
1. Before installing the Cable Holder Right to the Main Frame, route the Mist Board FFC through the groove and ribs (x3) of the Cable Holder Right.
2. Route the Mist Board FFC and Panel FFC along the reference line of the Main Frame in order, and secure them to the Main Frame with double-sided
tape.
3. Route the Mist Board FFC through the hole of the Main Frame.
4. Engage the section A of the Cable Holder Right to the Main Frame as shown above, and then secure the Cable Holder Right to the Main Frame with the
hooks (x2).
5. Route the Mist Board FFC along the reference line of the Mist Board Assy, and secure the Mist Board FFC to the Mist Board Assy with double-sided
tape.
6. Connect the Mist Board FFC to the Mist Board FFC connector.
 Pull out the electrode cable from the cutout of the Main Frame and route the cable through the groove A and B as shown above, and then connect it to the
Mist Board.
Mist Board Cable Holder
Mist Board Cable Holder
Electrode cable
Cutout
Groove A
Groove B
Mist Board Assy
Double-sided tape
Reference line
Mist Board FFC connector
Double-sided tape
Reference line
Rib
Main Frame
Section A
Hook
Step 4
Mist Board FFC
Right side of Main Frame
Cable Holder Right
Mist Board FFC
Hole of Main Frame
Groove
Panel FFC
Step 1 to 3
Main Frame

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
