Epson Stylus Photo R3000 Service Manual

Confidential
Adjustment Details of Adjustments (TBD) 45
Epson Stylus Photo R3000 Revision A
3. Light the printer’s inside through a gap between the ASF Assy and the Paper Guide (under ASF Assy) with a
penlight, and look the tab on the Retard Roller Holder at the back of the two reference tabs on the ASF Assy
through the notch. After making sure that the two reference tabs are aligned when viewed edge-on, adjust the
position of the Retard Roller Holder Tab by pressing the LD Roller Guide (0-digit side) so that it is placed
within the range as shown in the simplified diagram in Figure 2-10.

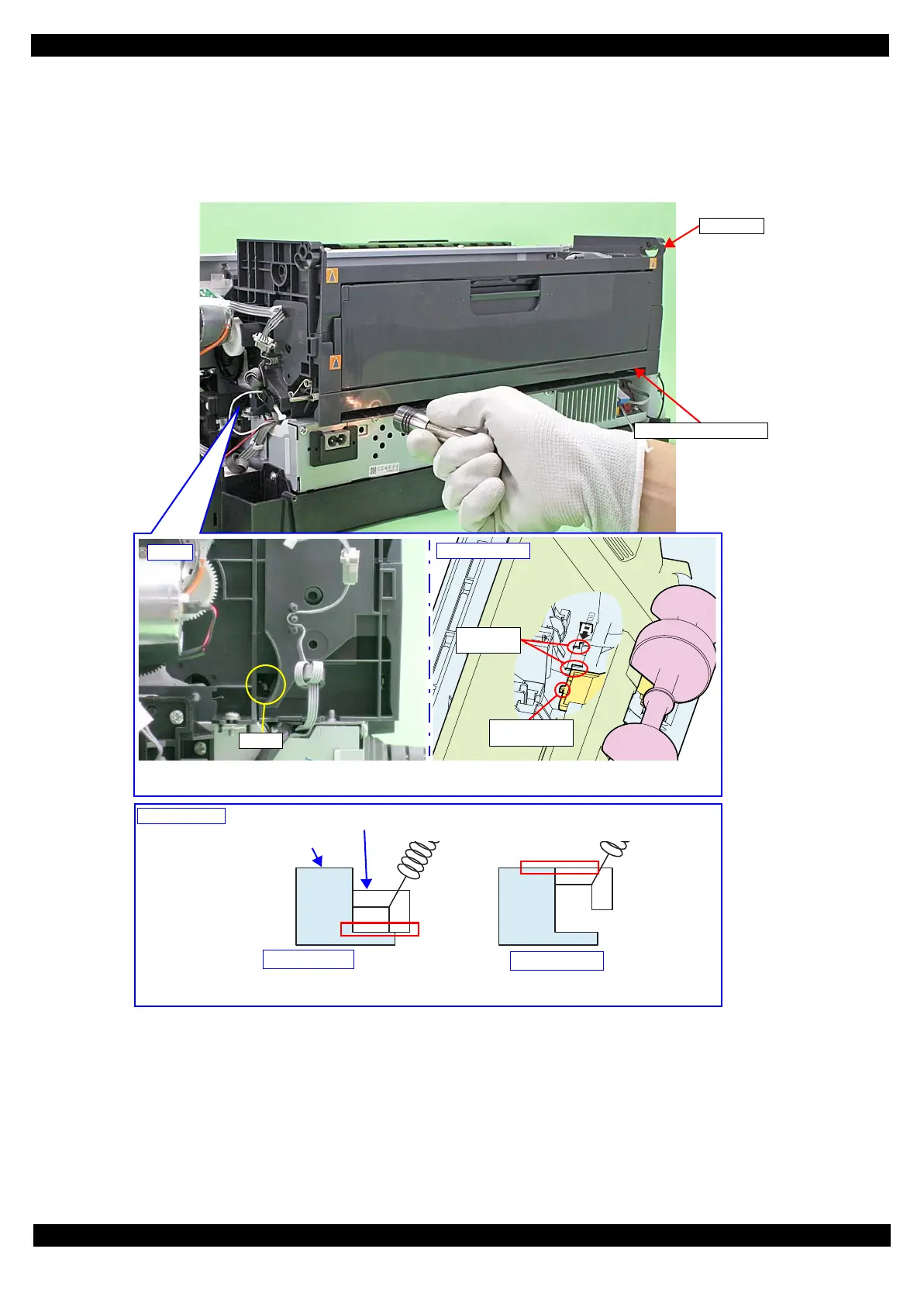

Figure 2-10. Aligning the Position of the Guide Roller LD (0 Digit Side)
4. Align the guide pin and rib on the 0-digit side LD Roller Guide with the positioning holes on the Main
Frame, and tighten the LD Roller Guide (0-digit side) with the screws. (See Figure 2-11)
5. Check the position of the Retard Roller Holder tab again through the notch. If it is not inside the range,
remove the screws on the LD Roller Guide (0-digit side), and repeat Step 2 to Step 4 to set the tab within the
range.
Aligning position for bottom of Retard
Roller Holder tab with reference tabs
Aligning position for top of Retard
Roller Holder tab with reference tabs
Tab positions
When it is difficult to see the Retard Roller Holder tab even if lightning inside with a penlight, remove the
Roll Paper Guide Assy.
Roll Paper Guide Assy
ASF Assy
Reference tabs
Retard Roller Holder tab
Lower Limit
Upper Limit
Back of Hopper
Reference
tabs
Retard Roller
Holder tab
Notch
Right

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
