Adjustment Details of Adjustments (TBD) 48
Epson Stylus Photo R3000 Revision A
2. Connect the tester to the upper section of the 130-side on the frame and adjustment gauge.

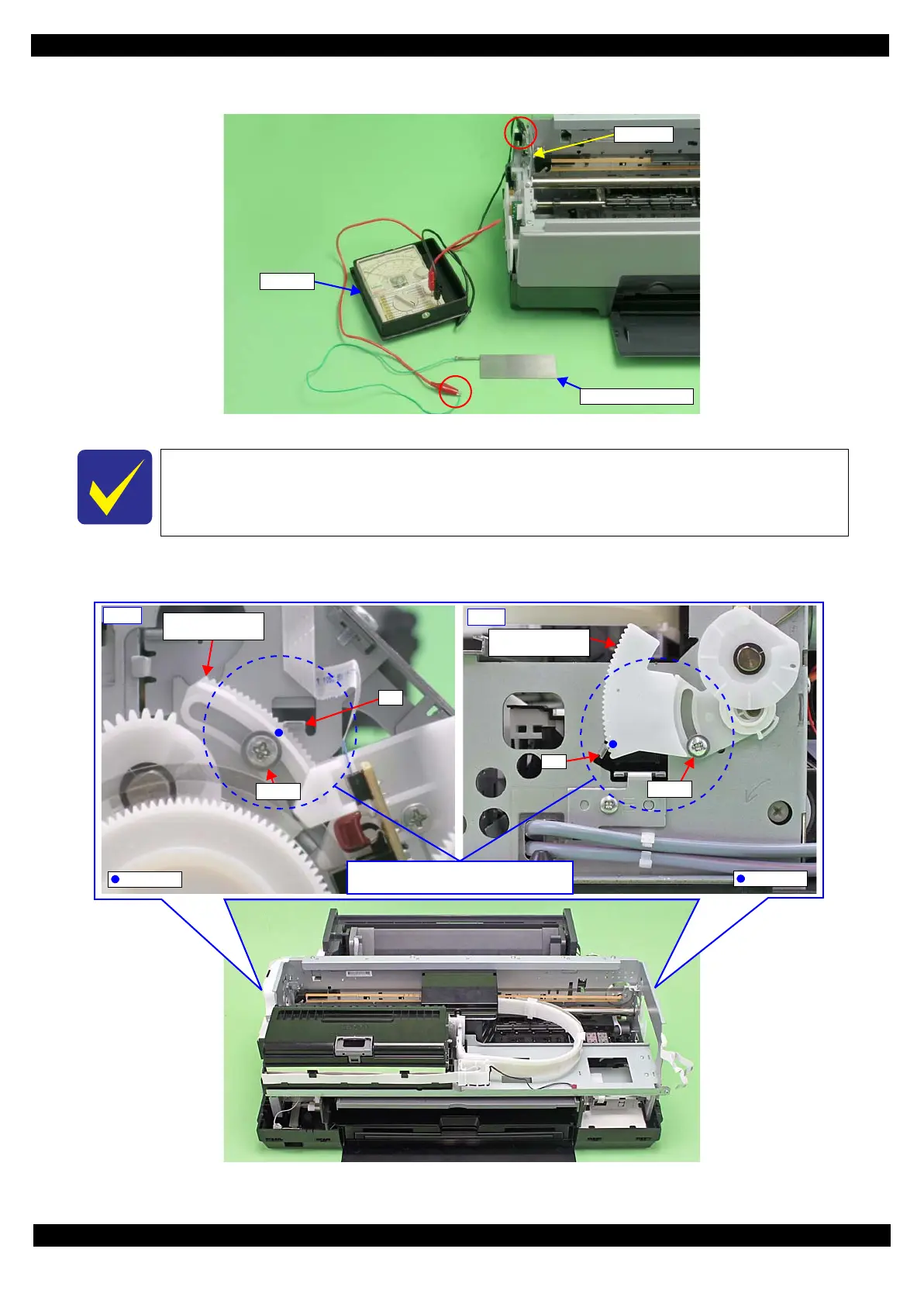

Figure 2-13. Connecting the Tester (Example)
3. Loosen the screws (x2) that secure the Parallelism Adjust Bushings (x2), and align the markings (marked
when disassembling) with the frame.
Figure 2-14. Setting the Parallelism Adjust Bushing
Before disassembling the unit, mark the contact points on the Parallelism Adjust Bushings
(x2) with the rib of the frame, and align the markings with the rib when reassembling them.
(See Figure 2-14.)
Tester
Adjustment gauge
Frame
Right
Parallelism
Adjust Bushing
Screw
Marking
Rib
Screw
Rib
Left
Parallelism
Adjust Bushing
Marking
Align marking on Parallelism Adjust
Bushings with rib when disassembling.
