Epson Stylus Photo R3000 Service Manual

Confidential
Adjustment Details of Adjustments (TBD) 54
Epson Stylus Photo R3000 Revision A
5. The Adjustment Program automatically judges from the entered value whether the adjustment in the PF
direction is necessary.

When the adjustment in the PF direction is necessary (the value is ± 3 or over):
The program indicates which way to move the head angular adjustment lever, so follow the instruction and set the
lever to the correct position, then move on to Step 6.
 When the adjustment in the PF direction is not necessary:
Finish the adjustment.

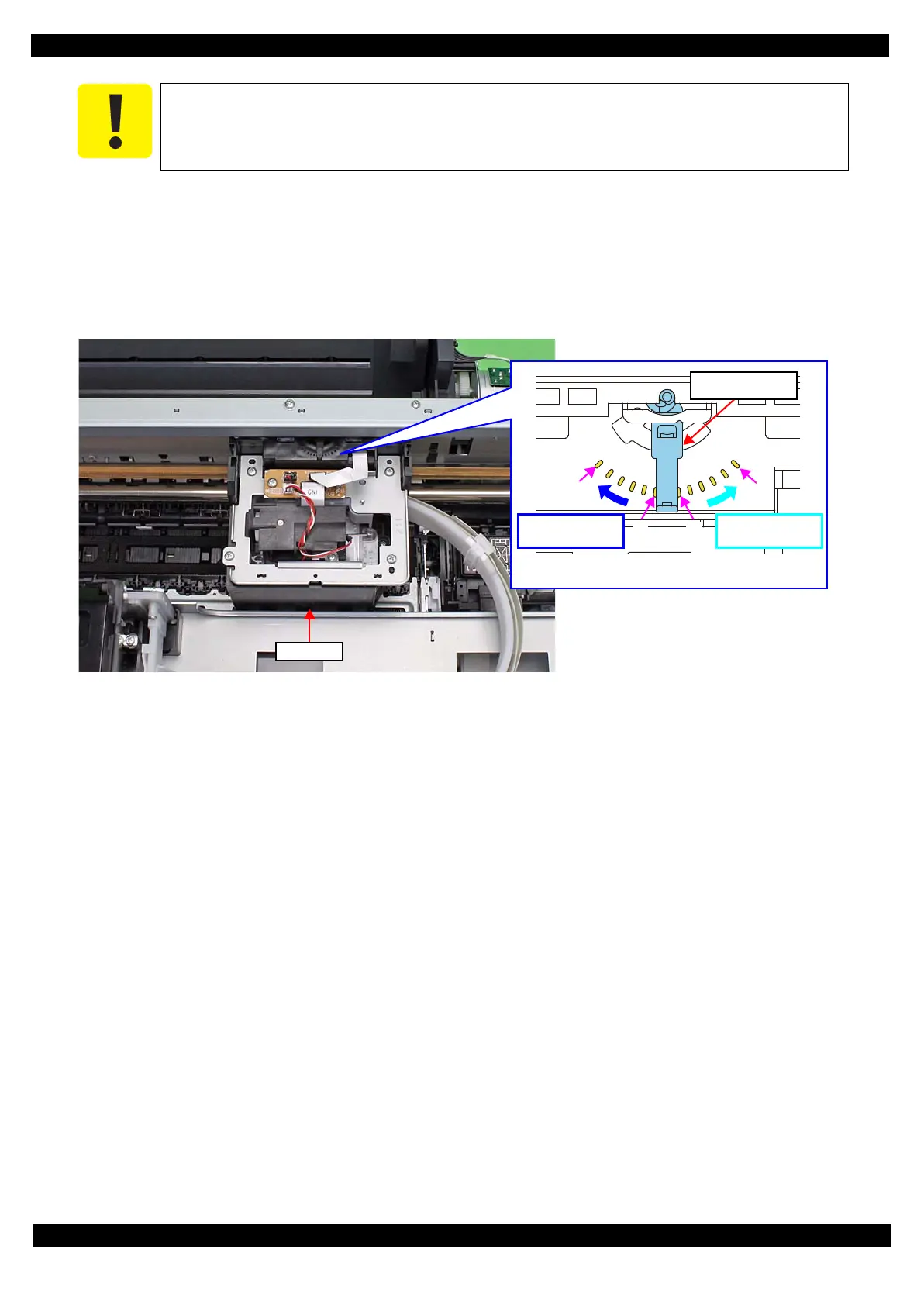

Figure 2-23. Adjustment in the PF Direction
6. Print the adjustment pattern again and enter the values of the band pattern and microweave pattern, and then
click the Input button.
The adjustment is complete if the adjustment instruction in the PF direction no longer appears.
When the adjustment instruction in the PF direction appears, reinstall the Printhead and perform the
adjustment from the beginning.
Make sure to use tweezers when adjusting the head angular adjustment lever.
CR Unit
Head angular
adjustment lever
#1
#6
#6
#1
Front side of CR
Unit moves down.
Front side of CR
Unit moves up.
Adjust the head angular adjustment lever position by
following the instruction in Adjustment Program.

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
