Epson Stylus Photo R3000 Service Manual

Confidential
Adjustment Details of Adjustments (TBD) 60
Epson Stylus Photo R3000 Revision A

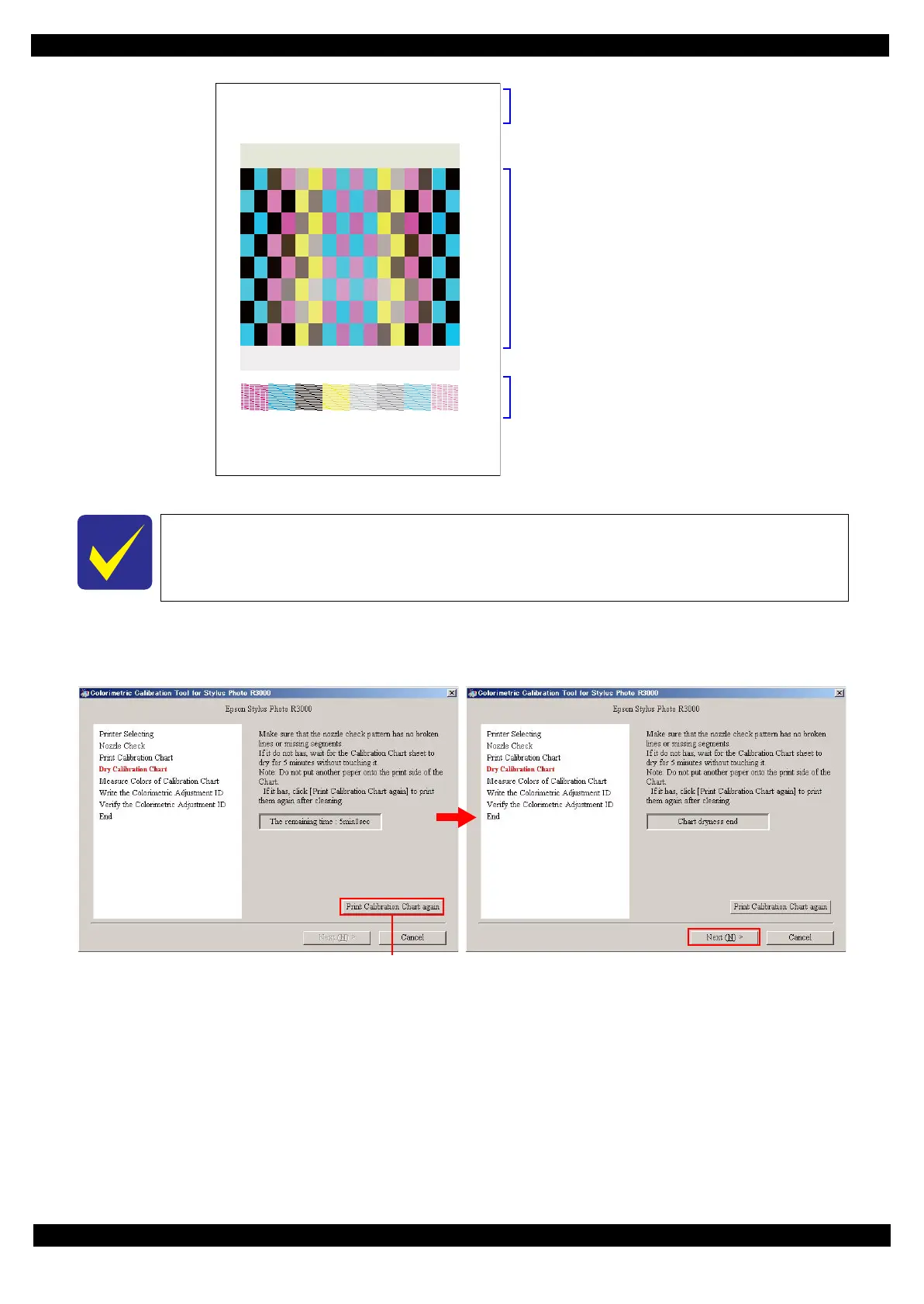

Figure 2-29. Illustration of Calibration Chart
6. After the Calibration Chart is printed, allow it to dry for five minutes. During this time, check the nozzle
check pattern on the chart. If there are broken lines or missing segments, click [Print Calibration Chart
again], and return to Step 5. If there are no broken lines or missing segments, click [Next].
Figure 2-30. Drying the Chart
The recommended air temperature range for printing a Calibration Chart is 15°C to 28°C.
2010-11-26 17:21(GMT 2010-11-26 08:21)
S/N: OS:Win BlackInk:Matte
Printer:EPSON PX-5V
2010-12-03 17:16(GMT 2010-12-03 08:16)
Print time
USB ID (18 alphanumeric digits) + OS + Black ink type
Color measurement limit time (7 days after the print time)
Product name (EPSON Stylus Photo R3000)
128 calibration patches
Nozzle check pattern
When there are broken
lines or missing segments

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
