Epson Stylus Photo R3000 Revision A
9. After confirming that you are within the color measurement time limit, place the calibration chart sheet on a
black paper, put the scanning ruler on the chart sheet, then click [OK].

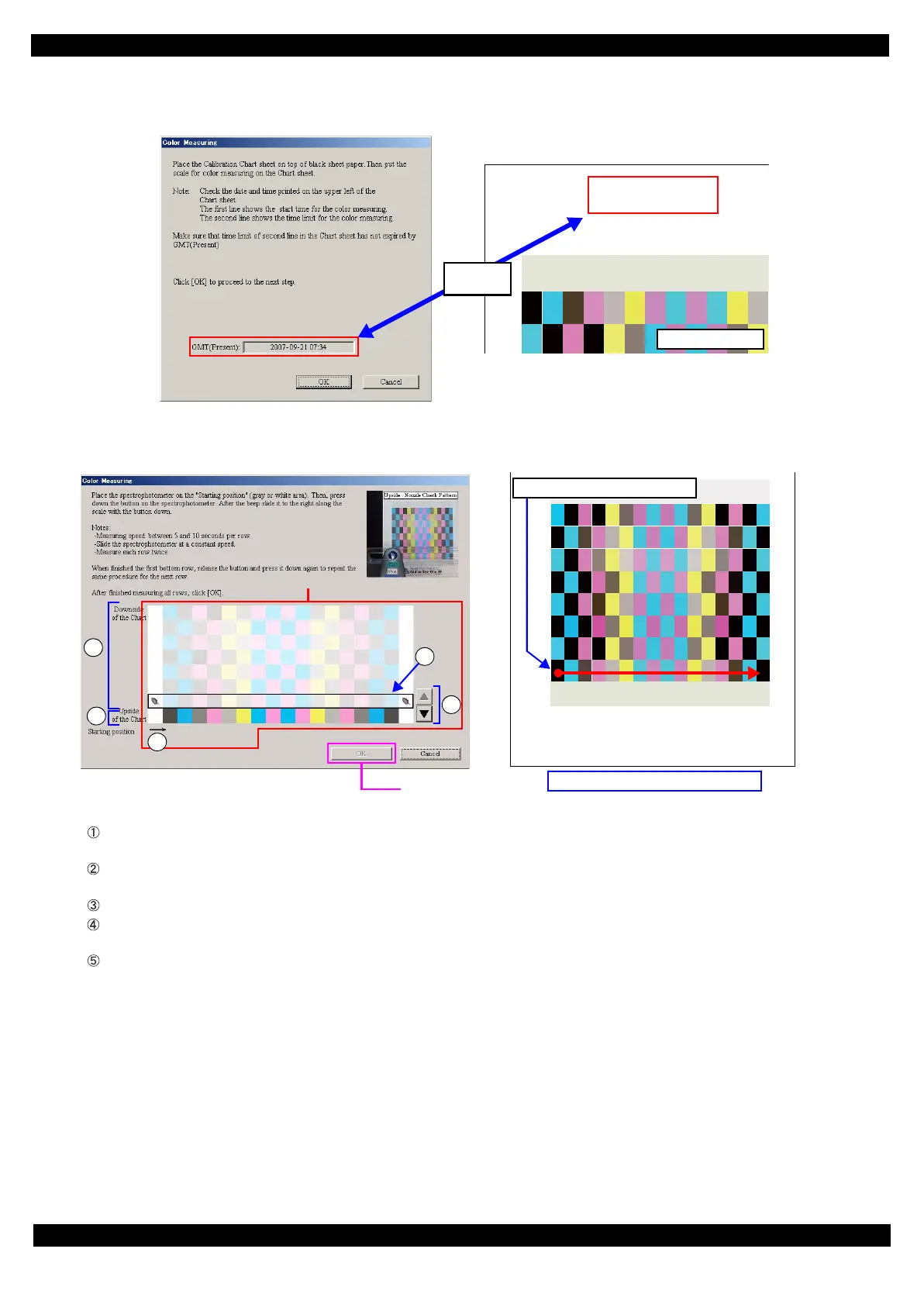

Figure 2-33. Preparing the Calibration Chart
10. Follow the on-screen messages to measure the chart. After the color measurement is finished, click [OK].
Figure 2-34. Starting the Color Measurement
2010-11-26 17:21(GMT 2010-11-26 08:21)
S/N: O
Printe
2010-12-03 17:16(GMT 2010-12-03 08:16)
Calibration chart
Check the
time here.
2010-11-26 17:21(GMT 2010-11-26 08:21)
S/N: OS:Win BlackInk:Matte
Printer:EPSON PX-5V
2010-12-03 17:16(GMT 2010-12-03 08:16)
Color Patch grid
This button is enabled
after color measurement
is complete.
Color measurement
“complete” rows
Patches in the complete rows are displayed in colors created
according to the measurement result.
Color measurement
“not complete” rows
Rows that have not been measured are displayed in pale color.
Arrow Indicates the start position of color measuring.
Cursor Automatically moves up when color measurement of a row is
complete.
Scroll buttons Scroll the cursor up or down. (These buttons are available for
already measured rows or the row currently being measured.)
Start position of color measuring
2
1
3
5
4
Chart direction for color measurement
