Epson Stylus Photo R3000 Revision A
11. Click [Next], and write the Color ID to the printer. After the writing has finished, the Colorimetric
Calibration Tool automatically checks the Color ID.

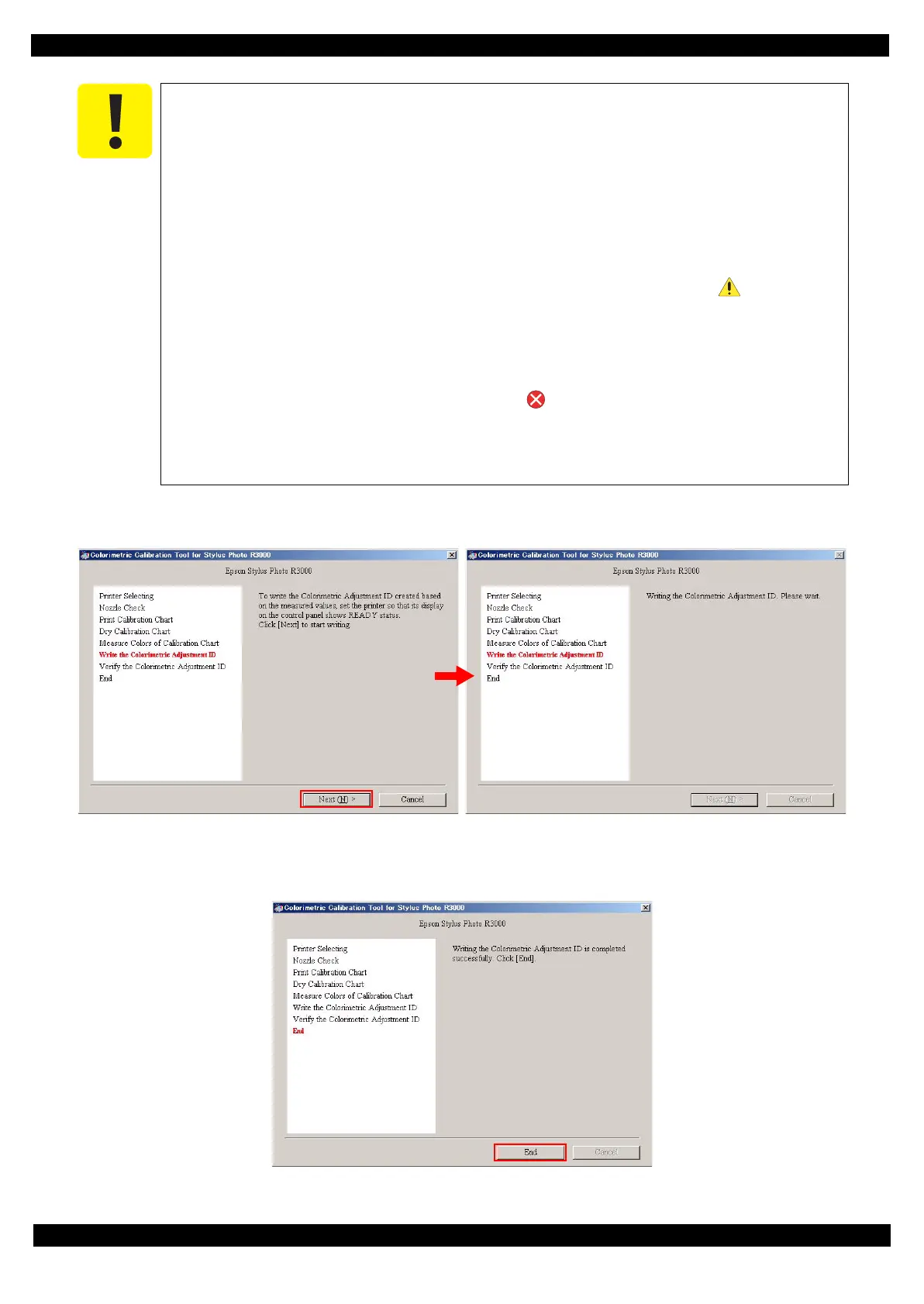

Figure 2-35. Writing of Color ID
12. When the following screen is displayed, click [End], and turn the printer OFF then back ON again to
complete the adjustment. This action reflects the color measurement values on the printer.
Figure 2-36. END
 Be sure to start the measurement from the top side of the chart.
 Be sure to measure colors at each row two times.
 During color measurement, do not allow the calibrator to rub against unmeasured
patches on the chart.
 Prevent the ruler and calibrator from coming off the chart sheet during color
measurement. Doing so will cause incorrect color measurement.
 During color measurement, measure only the patches on the chart sheet. Do not measure
other parts such as the USB ID text string.
 When there is an error possibility in measuring color, a warning mark ( ) appears at
the patch in question. In such case, make sure to measure the row that includes the patch
with a warning mark again. If the same warning mark appears again at the same point,
ignore the marking and perform the measurement in the next line.
 If the number of scanned patches does not match the number of patches on a single row,
the cursor stops at that row, the error mark ( ) appears on all of the patches on that
row, and the following error message is displayed:
• “Color measuring by Eye-One calibrator has failed. Measure colors of the failed row
again.”

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
