Pro 7900 and 9900 Field Repair Guide 10/6/10
Sensor (Edge Detector) Removal Printer Component, Software Item, LCD Display, Printer Button Page 177.

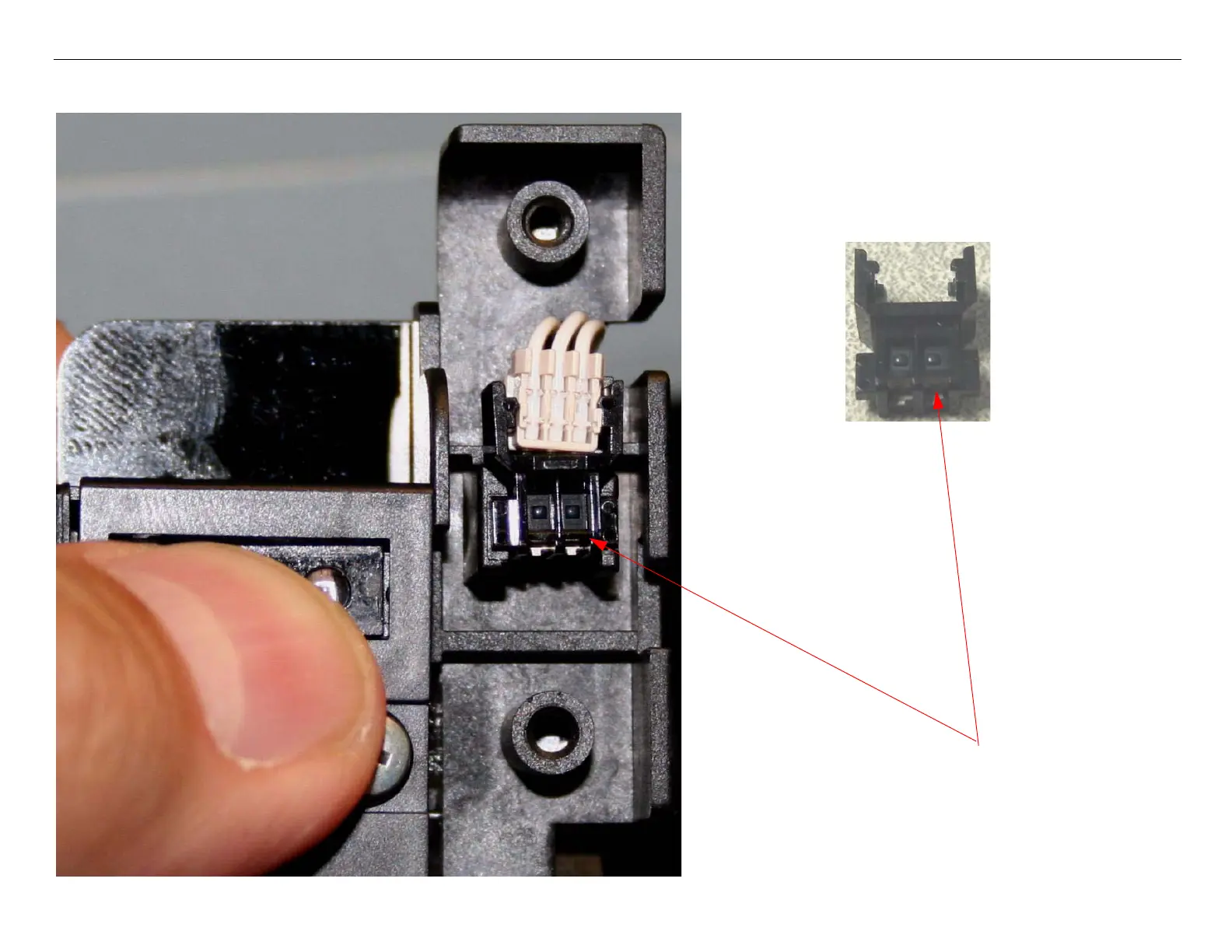

7. Remove the Edge Detector.
Lift out the Sensor, and
unplug the Cable.
