Circuit Board Frame
1. Remove four S4 screws.
2. Remove the circuit board frame.
Install using the following steps:
1. Affix insulating tape on the right side of the circuit board frame, as shown in the photo
above.
2. Install the circuit board frame. Then, align the dowels on the circuit board frame with the
holes in the frame L assembly and frame R.

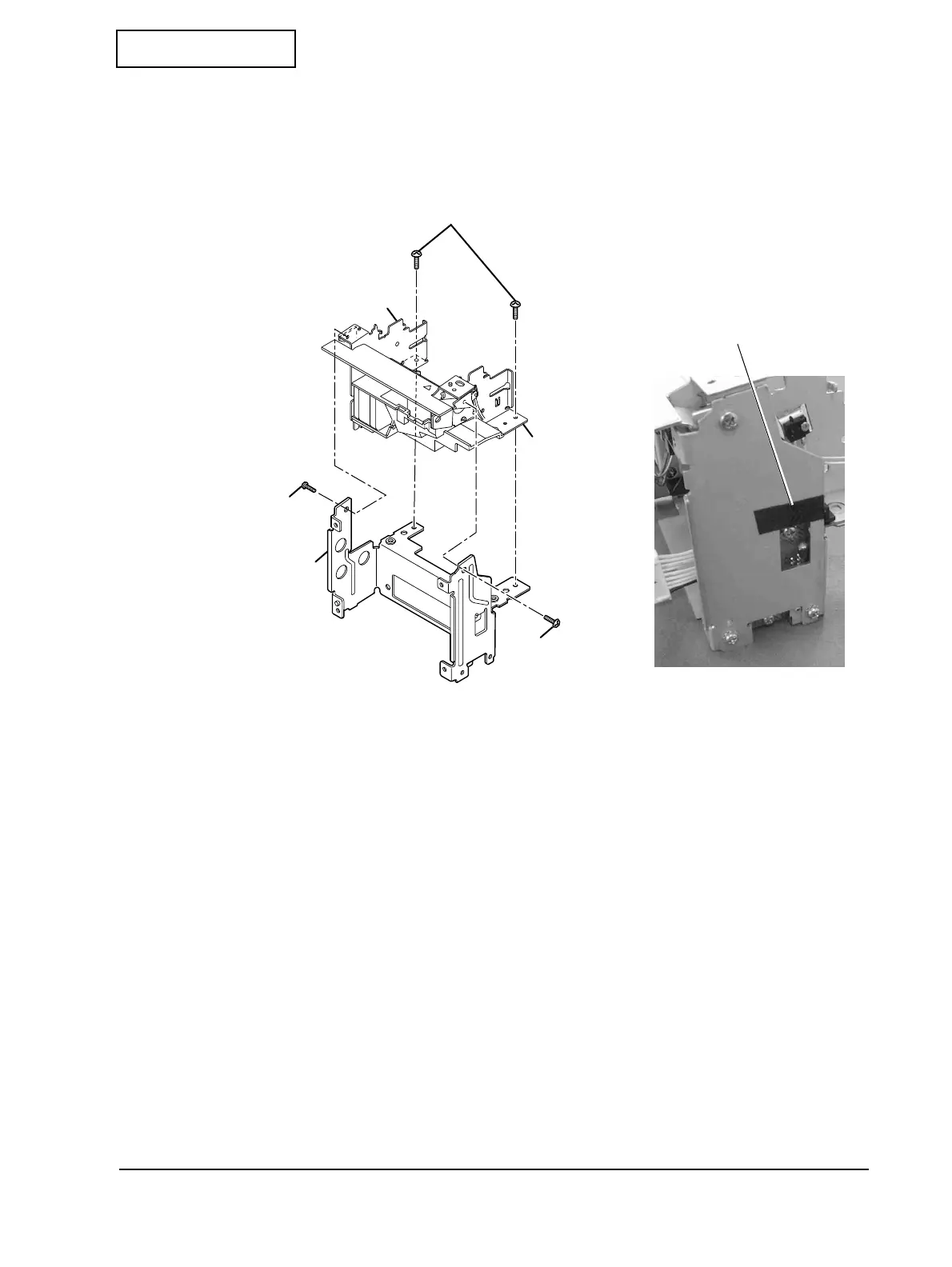

3. Tighten the four S4 screws. See the drawing to locate the screw holes.
Circuit board frame
S4
S4
S4
Frame L assembly
Frame R
Insulating tape
