Rev.C Disassembly and Assembly 3-45
TM-L90 Service Manual
Confidential

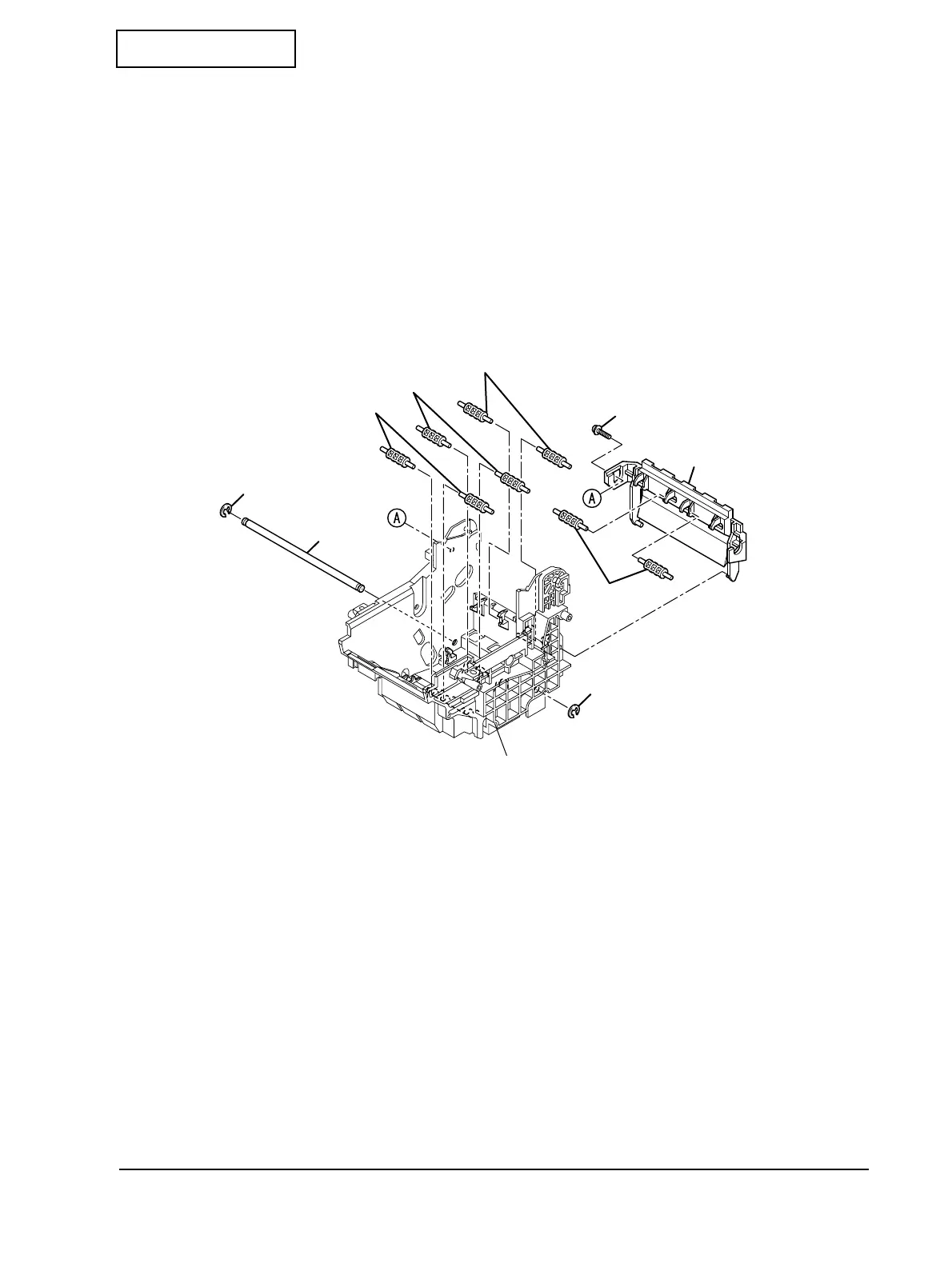

Auxiliary Holder Plate and Side Plate Guide Shaft
1. Remove one S10 screw.
2. Disengage both projections located in the lower part of the auxiliary holder plate, and pull
out the auxiliary holder plate downward, at an angle.
3. Remove the eight paper holding rollers.
4. Remove the two E1 type E retaining rings, and pull out the side plate guide shaft.
5. Remove the spacer guide plate while pushing up one front claw of the label paper holder.
S10
Auxiliary holder plate
Paper holding
Paper holding rollers
Paper holding rollers
Paper holding rollers
E1
Side plate
E1
Label paper holder
rollers
guide shaft
To Next Page
