Epson TM-L90 series User Manual

Rev.C Disassembly and Assembly 3-49
TM-L90 Service Manual
Confidential

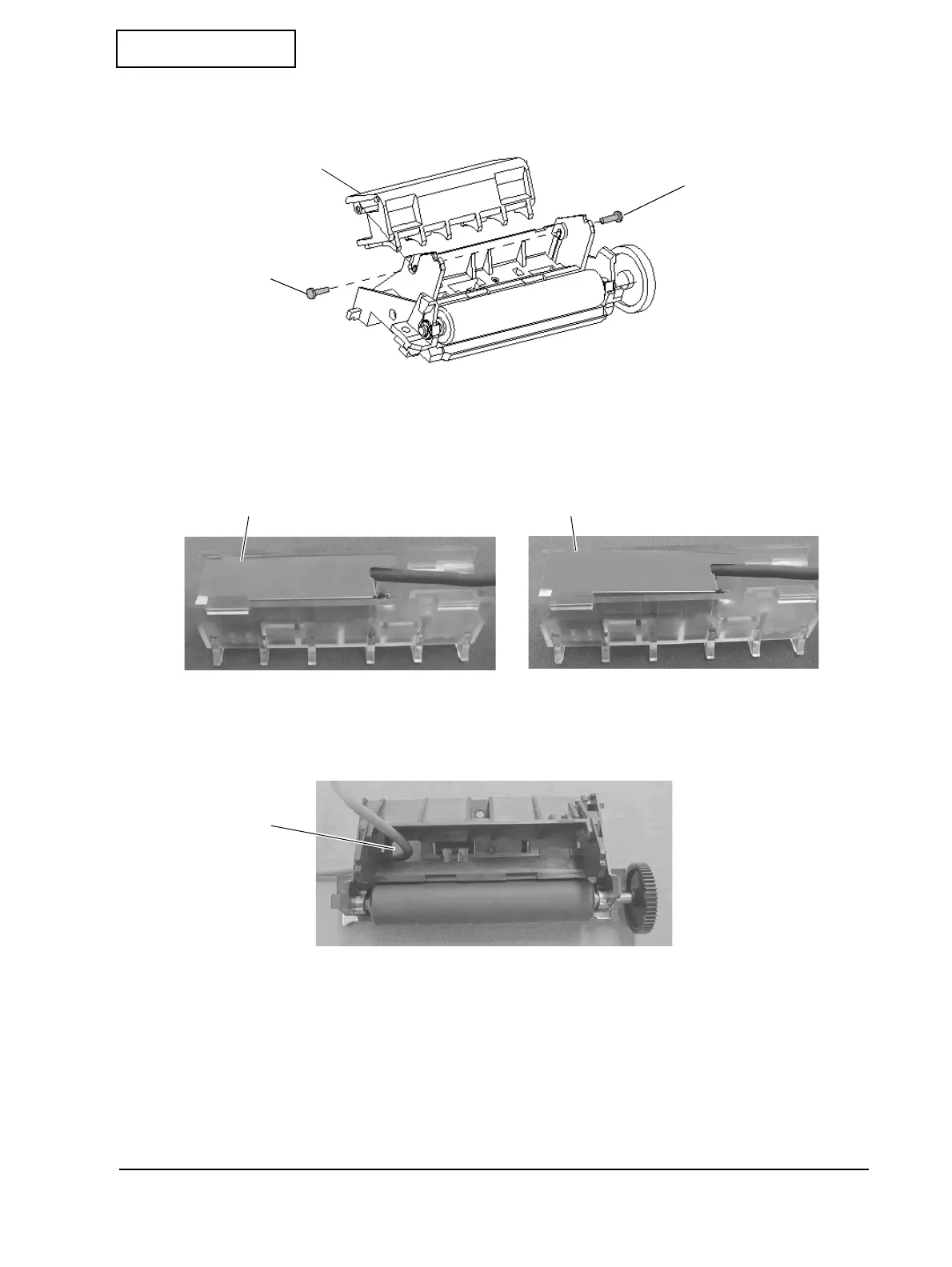

6. Remove two S1 screws, and remove the BM detector holder.
When you assemble the BM detector holder, make sure the shield plate fits into place as
shown below.
7. Pull the lead wire of the BM paper detector circuit board assembly out of the hole in the
platen holder.
BM detector holder
S1
S1
OK
NG (This portion of the shield plate goes up slightly.)
Hole
