3-50 Disassembly and Assembly Rev.C
Confidential

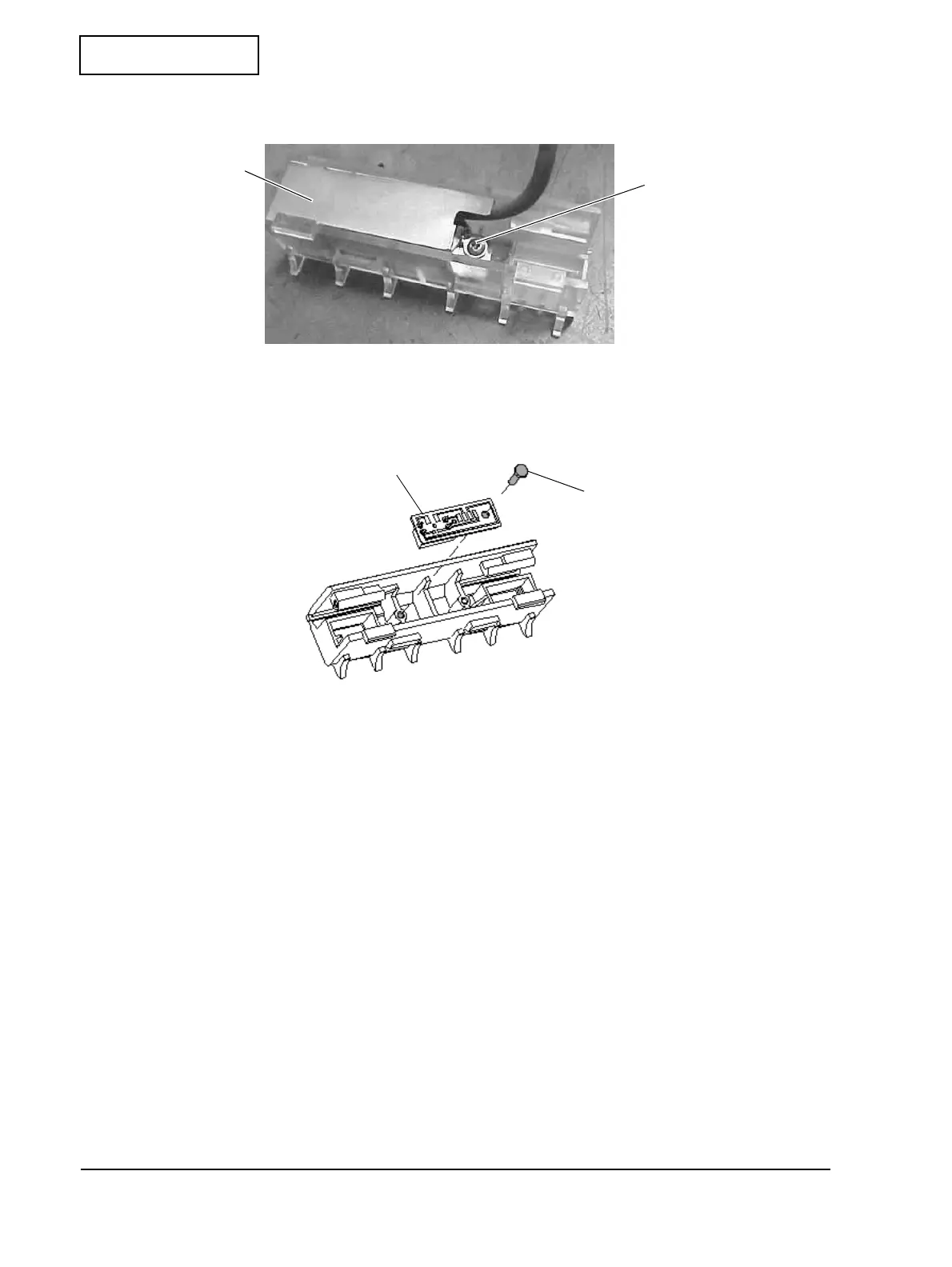

8. Remove one S1 screw; then, remove the shield plate.
9. Remove one S1 screw, and remove the BM paper detector circuit board assembly.
Shield plate
S1
S1
BM paper detector
circuit board
assembly
