Epson WorkForce Pro WF-C8190 - Page 196

196

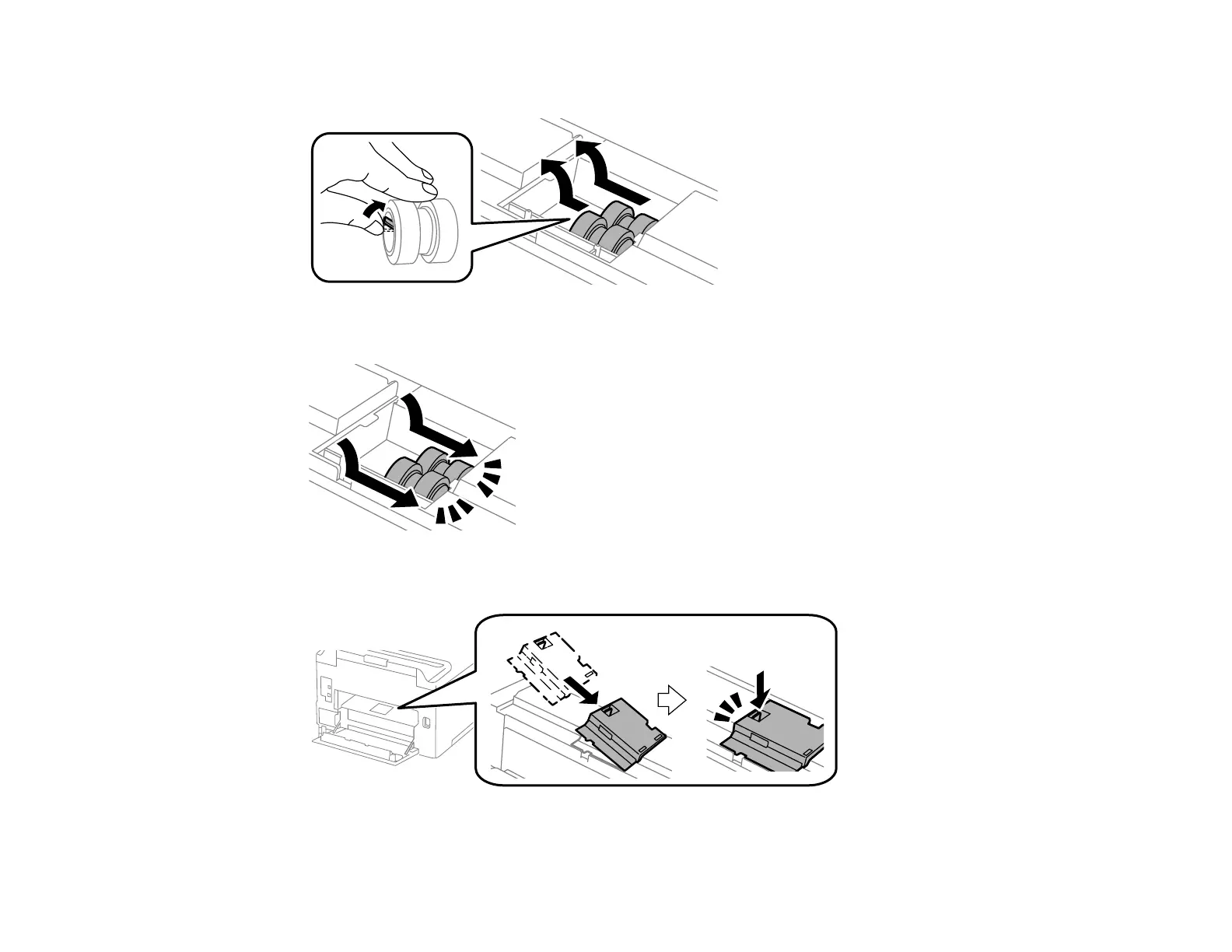

8. Pull up the roller tabs and slide the rollers to the left to remove them.
9. Insert the replacement rollers and slide them to the right until they click into place.
10. Replace the roller cover as shown and press it down until it clicks into place.
11. Insert rear cover 2 (D2).
