PSTN Channel Usage
The trunk checkboxes are used to select the port number(s) over which the FXO, ISDN or E1/T1 (depending on QX gateway model) traffic chart will be
built. At least one Trunk checkbox should be selected, otherwise error message appears.
Time range of statistic table
drop down list includes the period (in
days) statistics data that is to be collected and the corresponding diagram
chart that is to be built.
Incoming Calls and Outgoing Calls checkboxes are used to select
whether the FXO, ISDN or E1/T1 (depending on QX gateway model)
traffic statistics for only incoming or outgoing or for both type of calls
should be displayed in the diagram chart.
Maximum Active Calls checkbox is used to have the number of
maximum active calls displayed in the diagram chart.
At least one of these checkboxes should be selected, otherwise error
message appears.

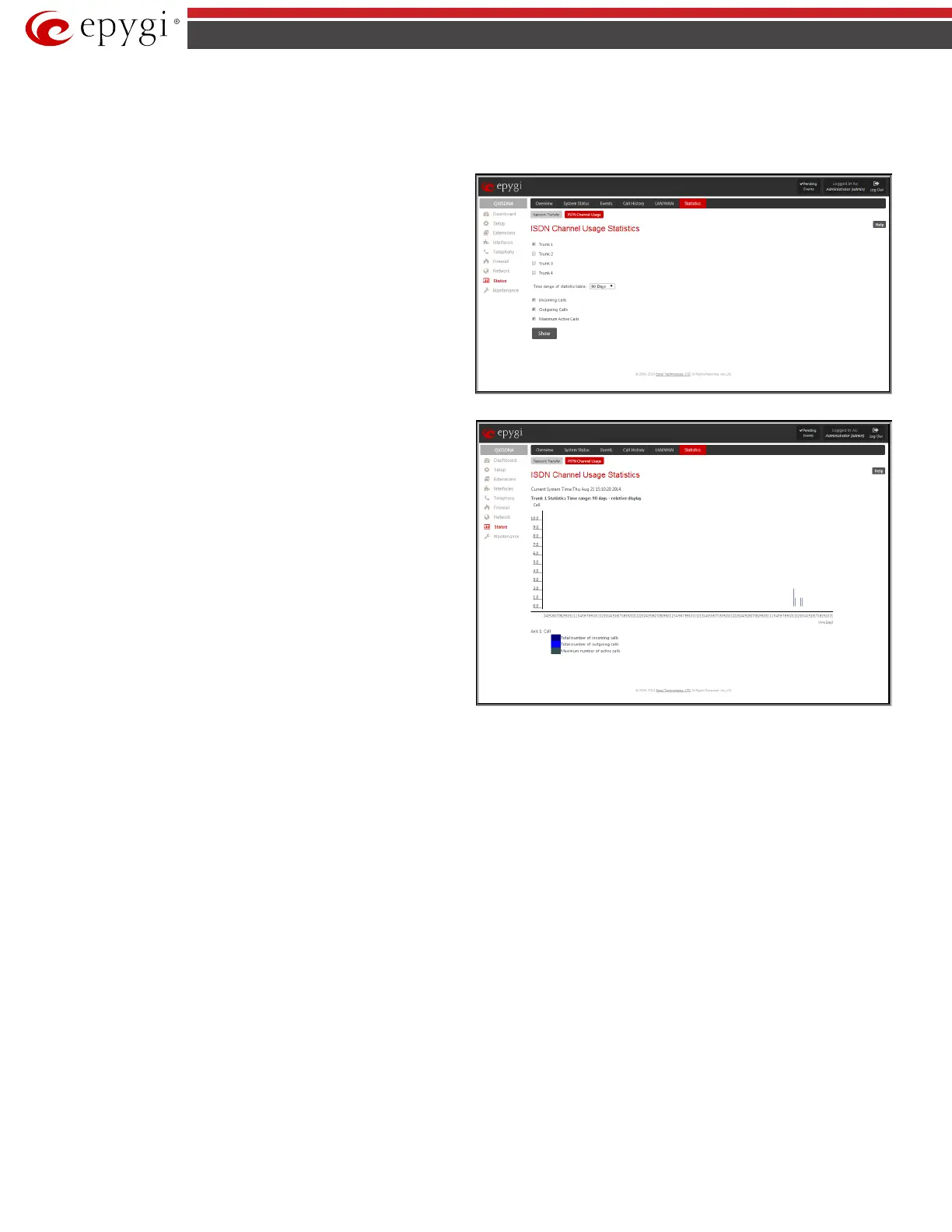

Fig.II- 175: QXISDN4 gateway - ISDN Channel Usage Statistics page
Show
button is used to generate an FXO, ISDN or E1/T1 (depending on
QX gateway model) channels usage diagram chart over the parameters
selected above.
When this button is pressed, FXO, ISDN or E1/T1 (depending on QX
gateway model) Channel Usage Statistics chart appears. It represents
dependency between the time frame and the number of calls performed
during that period. Additionally it may display the maximum number of
calls performed in the selected time frame.
Fig.II- 176: QXISDN4 gateway - ISDN Channel Usage Statistics chart
