QX5
QXFXO4/QXISDN4/QXE1T1/QXFXS24; (SW Version 6.0.x) 36
QXFXO4/QXISDN4/QXE1T1/QXFXS24 Manual II: Administrator’s Guide
Trunk – Edit Entry
page consists of the following components:
The Interface Type drop down list gives an option to choose between
E1/T1 User and Network interface configuration.
The Signaling Type drop down list allows selection of CAS (Channel
Associated Signaling) or CCS (Common Channel Signaling) signaling
types. The same timeslot is used both for voice and data transmission
in case of CAS signaling. In the case of CCS signaling a single timeslot is
used for signaling data transmission on the entire trunk. All other
timeslots are used for voice transmission.
The E1 and T1 radio buttons are used to select between E1 and T1
modes. The T1 mode enables 24 timeslots, and the E1 mode enables
32 timeslots to be used. The selection of E1 or T1 enables the Line
Code, Frame mode, Line Build Out, Coding Type, LoopBackMode
and Clock Mode settings. These settings are configured to match the
E1/T1 settings from the service provider.
Attention: See the Call Routing Table chapter to ensure that
modifications to the E1/T1 trunk settings do not lead to broken routes
in the Call Routing Table.

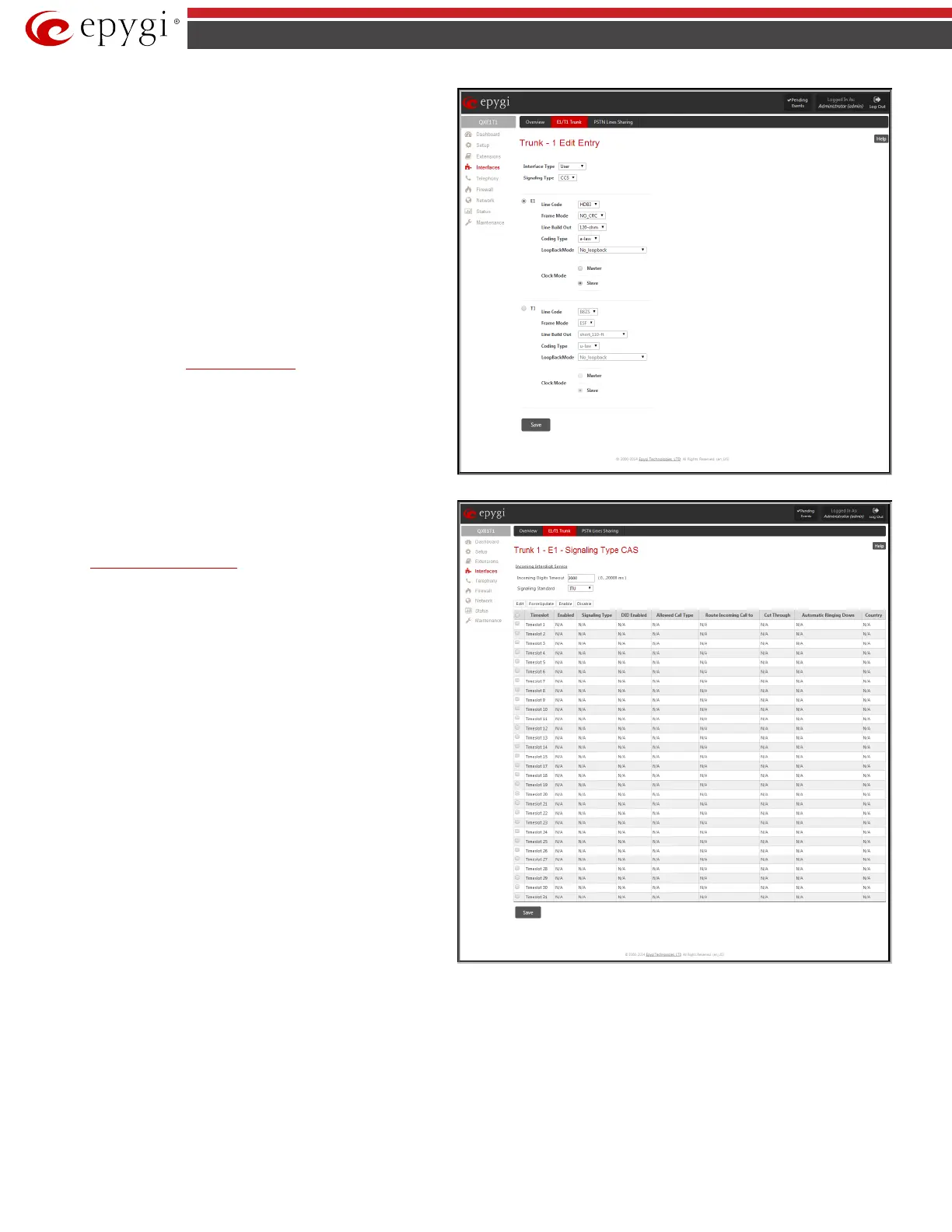

Fig.II- 40: E1/T1 Settings –Edit Entry page
Trunk CAS Signaling Settings
page lists the available timeslots
of the trunk with CAS signaling and their settings.
The Incoming Interdigit Service link leads to the page where the dial
plan for incoming E1/T1 calls from CO/PBX to the QX can be
configured.
Incoming Digits Timeout text field requires a value between 0 and
20000 (in milliseconds) and is used to define the timeout during
which incoming digits from the destination party calling QX will be
collected before being applied as an incoming called number.
Signaling Standard drop down list is available only in E1 mode and is
used to select the connection signaling standard.
Force Update functional button is used to apply immediately the new
settings on the selected timeslot(s). This will force the timeslot(s) to
be restarted and any active connection on the selected timeslot(s) will
be interrupted.
Enable/Disable functional buttons are used to enable/disable the
selected timeslot(s).
Select one or more timeslots and click on Edit to open the CAS
Signaling Wizard that guides through the key configuration
parameters specific to the timeslot.
Fig.II- 41: E1 Trunk - CAS Signaling Settings page
The CAS Signaling Wizard offers a possibility to configure the selected timeslot(s) and provides a variable group of parameters depending on the E1/T1
trunk configuration.
