QXFXO4/QXISDN4/QXE1T1/QXFXS24 Manual II: Administrator’s Guide
The second page of the
Call Routing Wizard
offers different
components depending on the Destination Type selected on the
previous page.
Use Extension Settings drop down list is applicable to SIP and IP-
PSTN destination types and allows you to select the extension
(also Auto Attendant) on behalf of the call that will be placed. The
SIP settings of the selected extension will be used as the caller
information. If an entry is not selected from this list, the original
caller information will be kept. When Keep original DID checkbox
is selected, the called destination will receive the original caller’s
information and not the information of the extension selected from
the Use Extension Settings list.
When the checkbox Add Remote Party ID is selected, the Remote-
Party-ID parameter is being delivered to the destination side upon
call establishment procedure.
SIP Tunnel drop-down list appears only when the “SIP_Tunnel”
Destination Type is selected on the previous page. The list is used
to select the particular SIP tunnel to route the calls through the
corresponding QX.

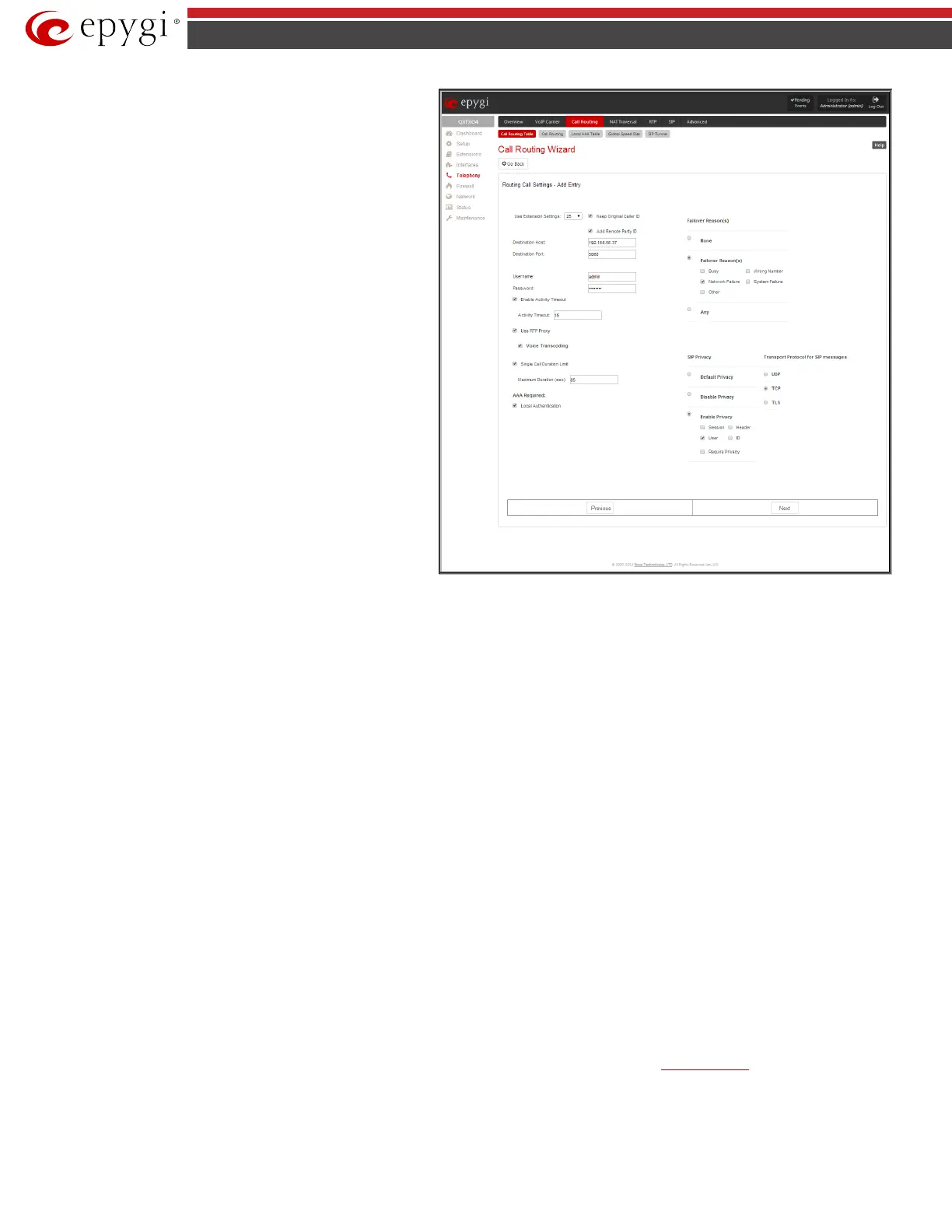

Fig.II- 68: Call Routing Wizard - page 2
Destination Host requires the IP address or the host name of the destination (for a direct call) or the SIP server (for calls through the SIP server). This
field is named Modified Destination Host if the Pattern field on the first page of this wizard contains “@” symbol.
Destination Port requires the port number of the destination or of the SIP server. This field is named Modified Destination Port if the Pattern field on
the first page of this wizard contains “@” symbol.
User Name and Password require the identification settings for the public SIP server or servers requiring authentication.
Enable Activity Timeout checkbox is used to limit time-to-live period of routing pattern (makes sense if accept or failure feedback arrives too late from
the destination).
Checkbox selection enables the Activity Timeout text field which is used to insert a routing pattern activity timeout (in the range from 1 to 180 seconds).
When timeout is configured, the routing pattern will be active within the defined time frame and if no response has been received from the destination
during that period, the pattern will be stopped and next routing rule might be optionally considered (depending on the Fail Reason configuration on the
corresponding pattern).
The Restrict the Number of Simultaneous Calls checkbox is only available for IP-PSTN destination type and is used to restrict the number of
simultaneous calls to the public SIP server with the same username at the same time. This checkbox enables Allowed Call Count text field which requires
the number of simultaneous calls allowed in a range from 1 to 64. If you leave this field empty, no limitation will apply to the number of simultaneous
logons.
The Use RTP Proxy checkbox is available for SIP and IP-PSTN destination types and is applicable when a route is used for calls through QX between peers
that are both located outside the QX. When this checkbox is selected, RTP streams between external users will be routed through QX. When the checkbox
is not selected, RTP packets will move directly between peers.
The Collect Call checkbox is available only for E1/T1 destination type and is used when it is simply preferable for the called phone to pay for the call. This
service is applicabe only if the Collect Call checkbox is enabled on both calling and called party's IP PBXs.
The Single Call Duration Limit checkbox is available for SIP, IP-PSTN and PSTN destination types and is used to limit the duration of the call placed with
the selected routing rule. If this checkbox is not selected, the call duration will be unlimited. This checkbox selection enables the Maximum Duration text
field where the maximum duration of the call (in seconds) should be defined. Once the call duration reaches the value defined here, the call will be
disconnected without prior notice.
The AAA Required checkboxes are used to choose one or more of the following Authentication, Authorization, and Accounting (AAA) settings:
• Local Authentication – with this checkbox selected, callers will need to pass authentication through the Local AAA Table when dialing the current
pattern.
• RADIUS Authentication and Authorization – this checkbox is present when a RADIUS client is enabled. With this checkbox selected, callers will
need to pass the authentication through RADIUS server (see above) when dialing the current pattern.
