QX50/QX200/QX2000; (SW Version 6.0.x) 100
QX50/QX200/QX2000 Manual II: Administrator’s Guide
Attention: Regardless of whether the Route all incoming SIP calls to Call Routing checkbox is selected or not, SIP calls from external callers will or
may go to the Call Routing table, so any unprotected routing rule can be misused. That is why it is strongly recommended to secure the rules in the
Call Routing table by setting the filtering or authentication options.

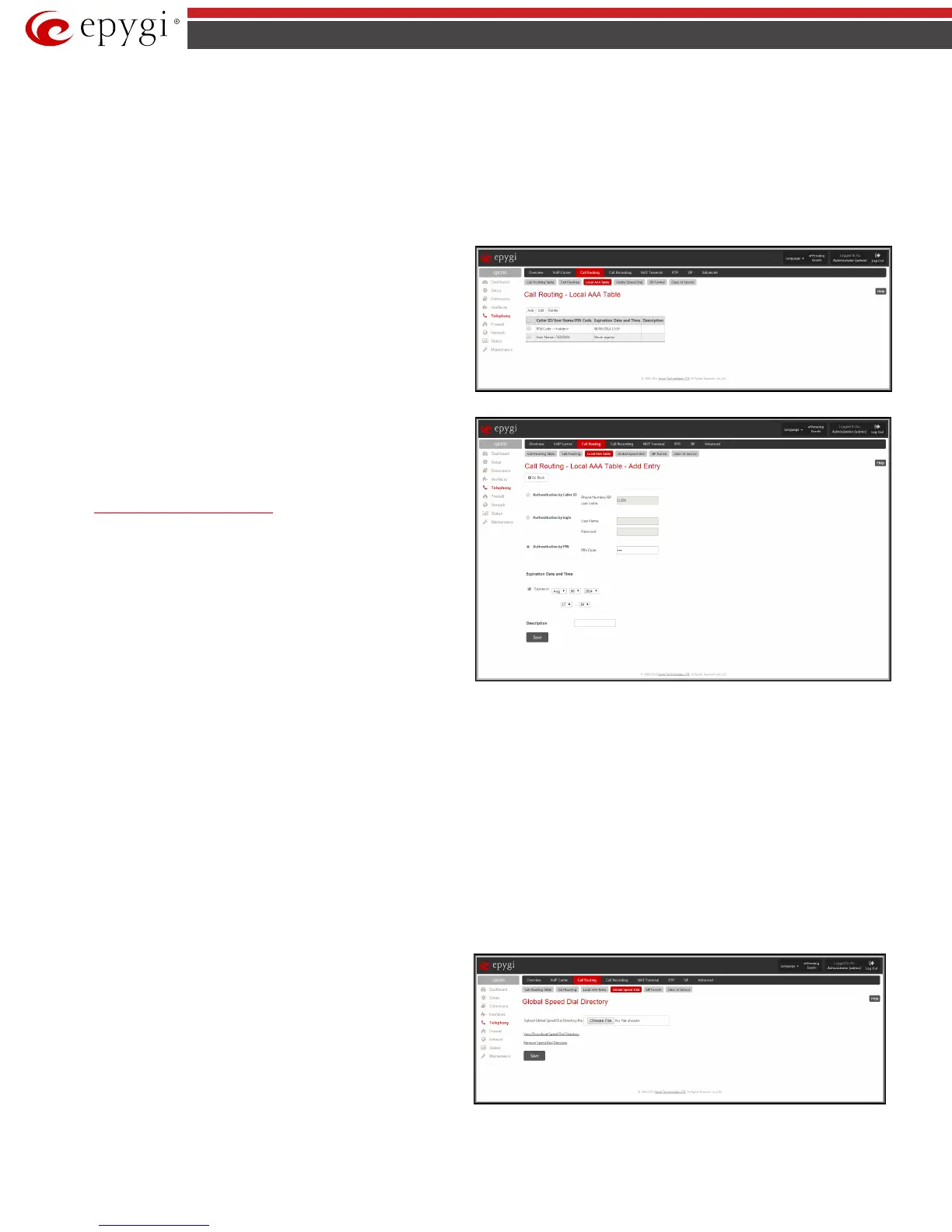

Local AAA Table
The Local AAA Table page allows you to manage local authentication and the authorization database. Callers dialing the routes which have an AAA
(Authentication, Authorization, and Accounting) option enabled, will pass the authorization on the Local AAA Table by using a phone number or
username/password, depending on the corresponding entry configuration on this page.
The caller passes authorization automatically if the detected phone
number of the caller dialing a route has the AAA option enabled and is
registered in the Local AAA Table. If the caller ID service is disabled or
the caller’s phone number is not registered, the caller is asked to enter a
registration user name and password.
The Add functional button opens the Call Routing – Local AAA Table -
Add Entry page where a new local AAA record can be created.
The Call Routing – Local AAA Table - Add Entry page offers a group of
manipulation radio buttons to select the type of authorization and the
following other parameters:
Fig.II- 146: Call Routing - Local AAA Table page
• Authentication by Caller ID
– this selection is used to set the
authentication based on the caller’s phone number (which is
considered to be automatically detected). The Phone Number/SIP
User Name text field requires the caller’s phone number or the SIP
username. Only numeric and wildcard characters (see chapter
Entering SIP Addresses Correctly) are allowed for this field. '[' , ']' ,
',', '-', ‘{‘, ‘}’ are used to define a range or a quantity of numbers. For
example, 2{13-17, ww, a-c} means that the dialed number may be
213, 214, 215, 216, or 217, 2ww, 2a, 2b and 2c to match the
specified phone number; in the case of 2[3,7], the dialed number
may be 23 or 27 to match the specified phone number. The {11, 15,
23, 38, 45} pattern means that the dialed number may be 11, 15, 23,
38 or 45 to match the pattern.
Fig.II- 147: Call Routing - Local AAA Table - Add Entry page
• Authentication by Login – this selection is used to set the authentication based on the username and password inserted by the user upon login. The
Username text field requires the authentication username. Only numeric values are allowed for this field, otherwise the error message “Incorrect
Username - digits allowed only” will appear. The Password text field requires the authentication password. Only numeric values are allowed for this
field, otherwise the error message “Incorrect Password - digits allowed only” will appear.
• Authentication by PIN- this selection is used to set the authentication based on the PIN inserted by the user upon login. Only digit values are
allowed for this field, otherwise the appropriate error message will be displayed.
The Expiration Date and Time drop down-lists are used to set the date and time when the registration will expire.
The Expires in checkbox is used to enable the Expiration Date and Time feature.
The Description text field requires an optional description about the calling party.
Edit opens the Edit Entry page to modify the local AAA entry.
Global Speed Dial Directory
Global Speed Dial Directory
page is used to define multiple speed
dial rules, write and save them in a file and then upload all of them at
once.
To compose the configuration file, any text editor can be used which
may produce files compatible to the CSV format: the speed dial code and
destination should be separated by commas. There should be a line
break after each code defined.
The View/Download Speed Dial Directory and Remove Speed Dial
Directory
links appear only if a global speed dial configuration file is
uploaded previously.
Fig.II- 148: Global Speed Dial Directory page
