The Recording To drop down list is for selecting the Recording Box extension Extensions Management) to be used for storing the recordings.
The Description text field should contain some descriptive text related to recording rule.
Edit opens the Edit Entry page to modify the selected entry. This page contains all the same components as the Add Entry page does.
NAT Traversal Settings
The NAT Traversal Settings page is divided into separate pages used to configure General NAT Settings, SIP, RTP and STUN parameters for NAT and a
page where the NAT Exclusion table may be filled.
General Settings
The
General Settings
page consists of a manipulation radio
buttons group to select the mode of the NAT Traversal usage for
the SIP traffic (any incoming and outgoing SIP messages from and
to the QX IP PBX will be routed through the NAT router).
• Automatic – with this selection, system will analyze the QX
IP PBX’s WAN IP address and if it is in the IP range specified
for local networks (according to RFC), the SIP traffic will be
routed through NAT. Otherwise, if QX IP PBX’s WAN IP
address is outside the specified IP range, no SIP traffic will be
routed through NAT router.
• Force – with this selection, all the SIP traffic will be routed
through the NAT router.
• Disable
– with this selection, no SIP traffic will be routed
through the NAT router.

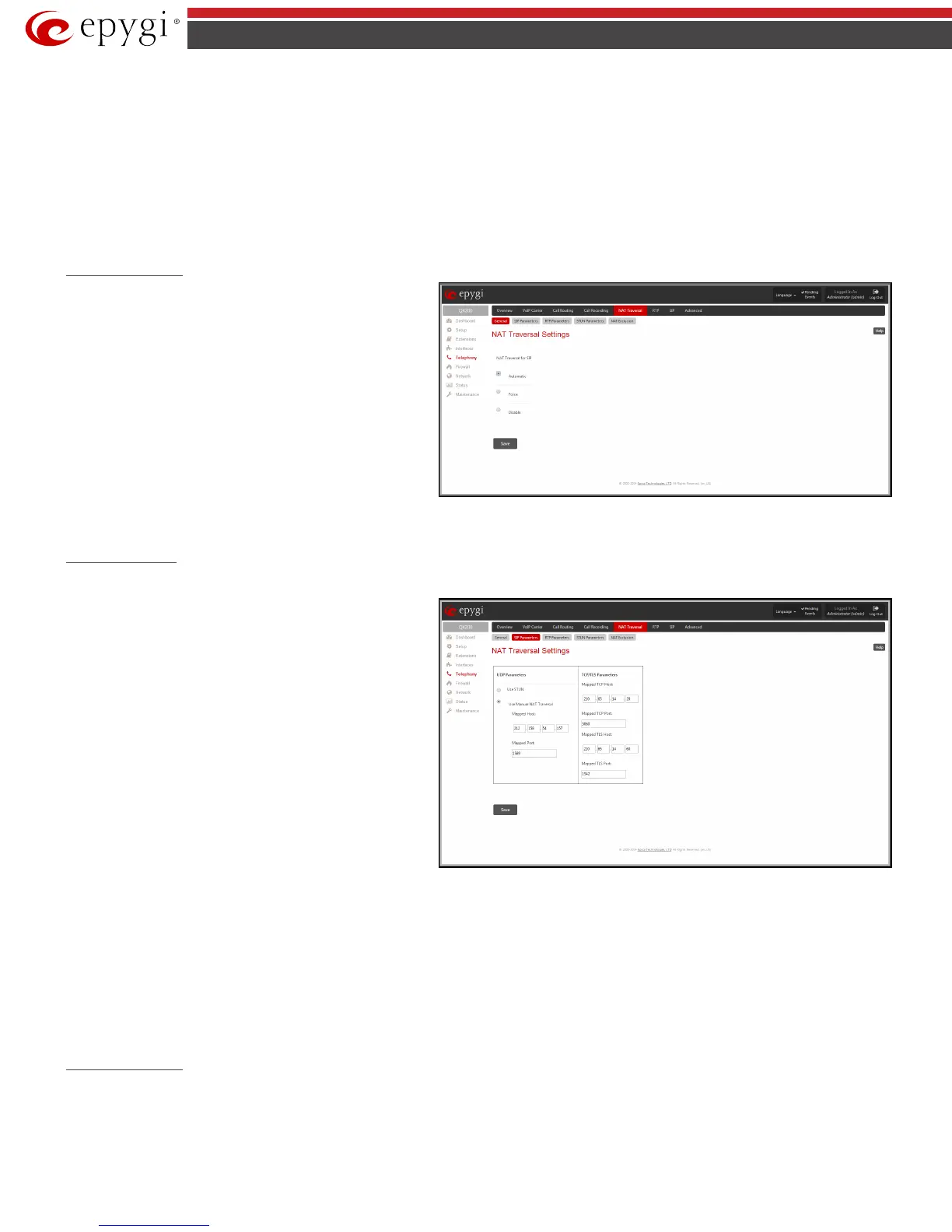

Fig.II- 158: General NAT traversal Settings page
SIP Parameters
The SIP Parameters page is used to configure NAT specific settings for SIP and offers two independent groups of settings:
UDP Parameters
:
Manipulation radio buttons allow you to select the type of
connection over NAT:
Selecting Use STUN will switch to automatic discovery of
Mapped settings for the SIP UDP traffic over NAT. STUN settings
are configured on the STUN parameters page (see below).
Selecting Use Manual NAT Traversal allows you to manually
define the mapped settings for the SIP UDP traffic over NAT:
Mapped Host requires the IP address of the mapped host for
SIP UDP traffic over NAT.
Mapped Port requires the port number on the mapped host for
the SIP UDP traffic over NAT.
Fig.II- 159: NAT traversal Settings - SIP Parameters page
TCP/TLS Parameters:
Mapped TCP Host requires the IP address of the mapped host for SIP TCP traffic over NAT.
Mapped TCP Port requires the port number on the mapped host for the SIP TCP traffic over NAT.
Mapped TLS Host requires the IP address of the mapped host for SIP TLS traffic over NAT.
Mapped TLS Port requires the port number on the mapped host for the SIP TLS traffic over NAT.
RTP Parameters
The RTP Parameters page is used to choose between the STUN and Manual NAT traversal connection for the RTP traffic and to define the RTP/RTCP
ports for the connection over NAT.
Manipulation radio buttons allow you to select the type of connection over NAT:
