Static Parameters:
Extension shows the extension number of the selected telephone line.
Display Name shows the corresponding name.
Phone State may have the value On Hook or Off Hook. For IP Line Status,
this field may additionally have Not Configured and Temporary Offline
values.
Number of Active Calls shows the number of calls that are currently
present on the phone.
Dynamic Parameters:
Call State shows the current state of the extension (in voice mail, in call,
waiting, busy, call out, ring in, etc.).
Caller Party appears when a call is received and indicates the caller
extension and the IP address or a phone number, depending on type of
call.
Called Party appears when a call is placed and indicates the destination
extension and the IP address or a phone number, depending on type of
call.
Call Type shows whether the call is Internal or External and whether it is
a PSTN call, PBX call or IP call.
Call Start Time shows the call start date and time.
Call Duration
shows the current call duration.

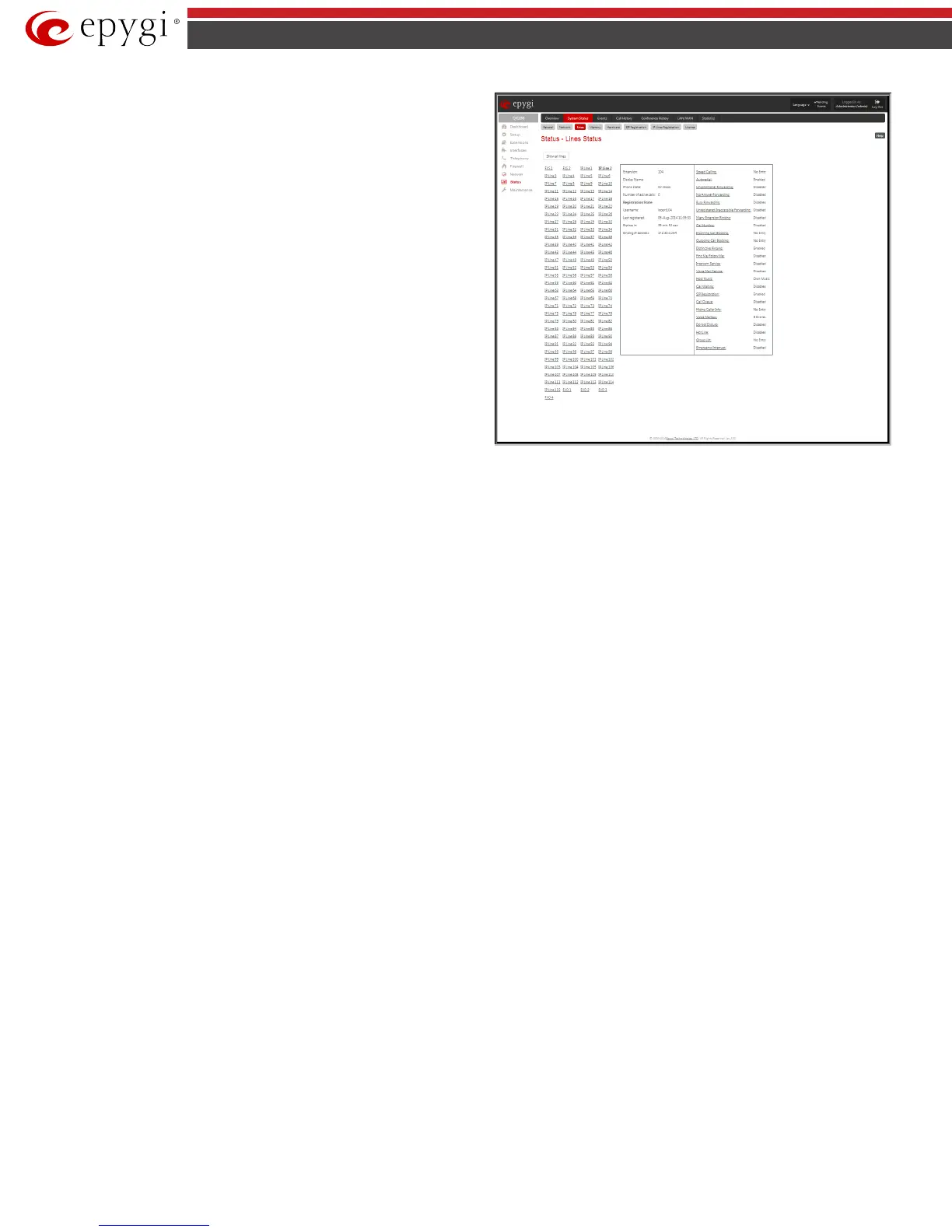

Fig.II- 238: Status - Lines Status page
RX Codec
shows the codec used to encrypt the incoming packets.
TX Codec
shows the codec used to encrypt the outgoing packets. If RX and TX codecs are
the same, only one
Codec
field will be displayed.
For IP Line Status, the following dynamical parameters appear on this page:
Username shows the IP phone’s client name registered on the QX IP PBX.
Last Registered shows the date and time, the corresponding IP phone has been last registered on the QX IP PBX.
Expires In shows when the last registration of the IP phone will expire.
Binding IP Address shows the IP address of the IP phone within the QX IP PBX’s LAN network.
The list of supplementary services provides the following additional status information for each telephone line: Enabled or Disabled.
For Incoming and Outgoing Call Blocking, Speed Calling, Hiding Caller Info, Voice Mailbox and Group List services, the number of Entries will be
displayed in the corresponding service table. For Voice Mail Service, the voice mailbox configuration mode is displayed here.
This allows administrator to view the status and to be notified about services running on QX IP PBX for every line. The services are designed as links that
guide the administrator to the corresponding service page of the selected user.
The
Line Status
for any shared
ISDN Trunks
on the QX IP PBX displays the state of the B1 and B2 channels and the information about the active calls on
them. This page includes a group of static and dynamic parameters. Static parameters are always displayed. Dynamic parameters appear only when an
event takes place on the channel.
Static Parameters:
• B channel - the state of the channel (enabled or disabled)
• State - the current state of the channel (free, busy or N/A)
Dynamic Parameters:
• Caller Party - this parameter appears when a call is received and indicates the caller address
• Called Party - this parameter appears when a call is placed and indicates the destination address
• Call Duration - current call duration (in seconds)
The Line Status for shared E1/T1 Trunk displays the list of available timeslots (in E1 mode, 30 active timeslots both for CAS and CCS signaling types; in
T1 mode, 24 timeslots for CAS signaling and 23 timeslots for CCS signaling type) and their settings (Route Incoming Call to, Allowed Call Type and
Timeslot State). When Timeslot is in the call, information about call direction (incoming or outgoing), Caller Party, Called Party and Call Duration is
displayed.
