• PBX selection means that the call will be push back to the local extension.
• SIP selection means that the call will be push back to the SIP destination correspondingly.
• PSTN selection means that the call will be push back to the PSTN destination.
• Auto selection is used for undefined call types: destination (independent on whether it is a PBX number, SIP address or PSTN number) will be
reached through Routing.
Call To text field requires the push back number dialed in the format depending on the selected Call Type. The
Wildcard is supported in this field.
2. Park Access List
This page is used to define a list of extensions that are allowed to
park the call to the corresponding call park extension. Wildcard is
supported in the Address field to add a group of extensions with
one entry.
If the extension is not in the Park Access List for the corresponding
call park extension, it will not be able to park a call to this call park
extension.
By default, this table contains a “*” entry which allows any PBX
users to park the call to this extension.
Attention: If you modify the Park Access List by adding new
extensions, do not forget to remove the default “*” entry from the
list for the new configuration to take effect.

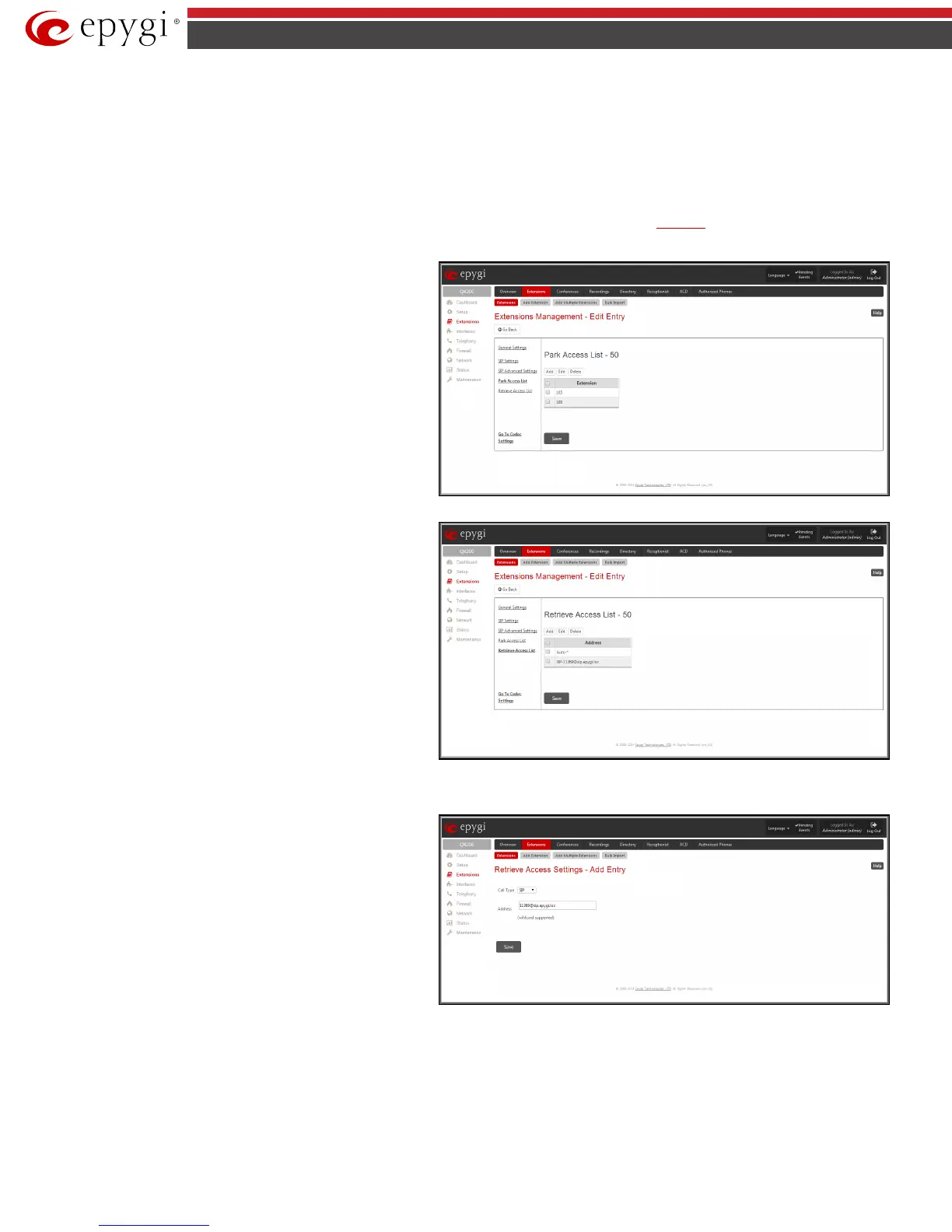

Fig.II- 45: Extensions Management - Edit Entry – Park Access List for call park extension
3. Retrieve Access List
This page is used to define a list of callers that are allowed to
retrieve a call parked to the corresponding call park extension.
If the caller is not in the Retrieve Access List for the corresponding
call park extension, it will not be able to pickup a call parked to
this call park extension.
By default, this table contains an “Auto-*” entry which allows any
caller to pickup the call parked to this extension.
Attention: If you modify the Retrieve Access List by adding new
callers, do not forget to remove the default “Auto-*” entry from the
list for the new configuration to take effect.
The Add functional button opens an Add Entry page where a new
caller can be added to the list. This page consists of the following
components:
Call Type lists the available call types:
• PBX - local calls from QX IP PBX’s extensions
• SIP – calls through a SIP server
• PSTN – calls from global telephone network
• Auto – used for undefined call types. The destination
(independent on whether it is a PBX number, SIP address or
PSTN number) will be passed through Call Routing Table.
Fig.II- 46: Extensions Management - Edit Entry – Retrieve Access List for call park extension
Fig.II- 47: Extensions Management - Edit Entry – Retrieve Access List for call park extension
The Address text field is used to define the address to be included in the Retrieve Access List table. The value in this field is strictly dependent on the Call
Type defined in the same named drop down list. If the PBX call type is selected, the QX IP PBX extension number should be defined in this field. For the SIP
call type, the SIP address should be defined, for the PSTN call type, the PSTN user number should be defined here. The wildcard is supported in this field.
Wildcard is available for this field.
