Connection Type
manipulation radio button group allows
you to choose the connection type for the selected trunk(s):
• PTP (Point to Point)
In case of connection to the CO (User interface type is
selected on QX IP PBX) choose this option if only QX is
connected to the ISDN trunk from CO (no other ISDN devices
are connected to the particular ISDN trunk from CO besides
the QX).
In case of connection to the PBX (Network interface type is
selected on QX) choose this option if only the PBX is
connected to the ISDN trunk from the QX ISDN Gateway (no
other ISDN devices are connected to the particular ISDN
trunk from the QX ISDN Gateway).
In both cases, with this selection, QX sets the TEI to manually
mode assigning the default value of 0. If needed, that value
can be changed later in the Advanced Settings page of ISDN
Wizard.
• PTMP (Point to Multi Point)
In case of connection to the CO (User interface type is
selected on the QX) choose this option if there can be other
devices connected to the same ISDN trunk from CO except the
QX IP PBX.
In case of connection to PBX (Network interface type is
selected on the QX) choose this option if there can be other
devices connected to the same ISDN trunk from QX ISDN
Gateway except for the PBX.

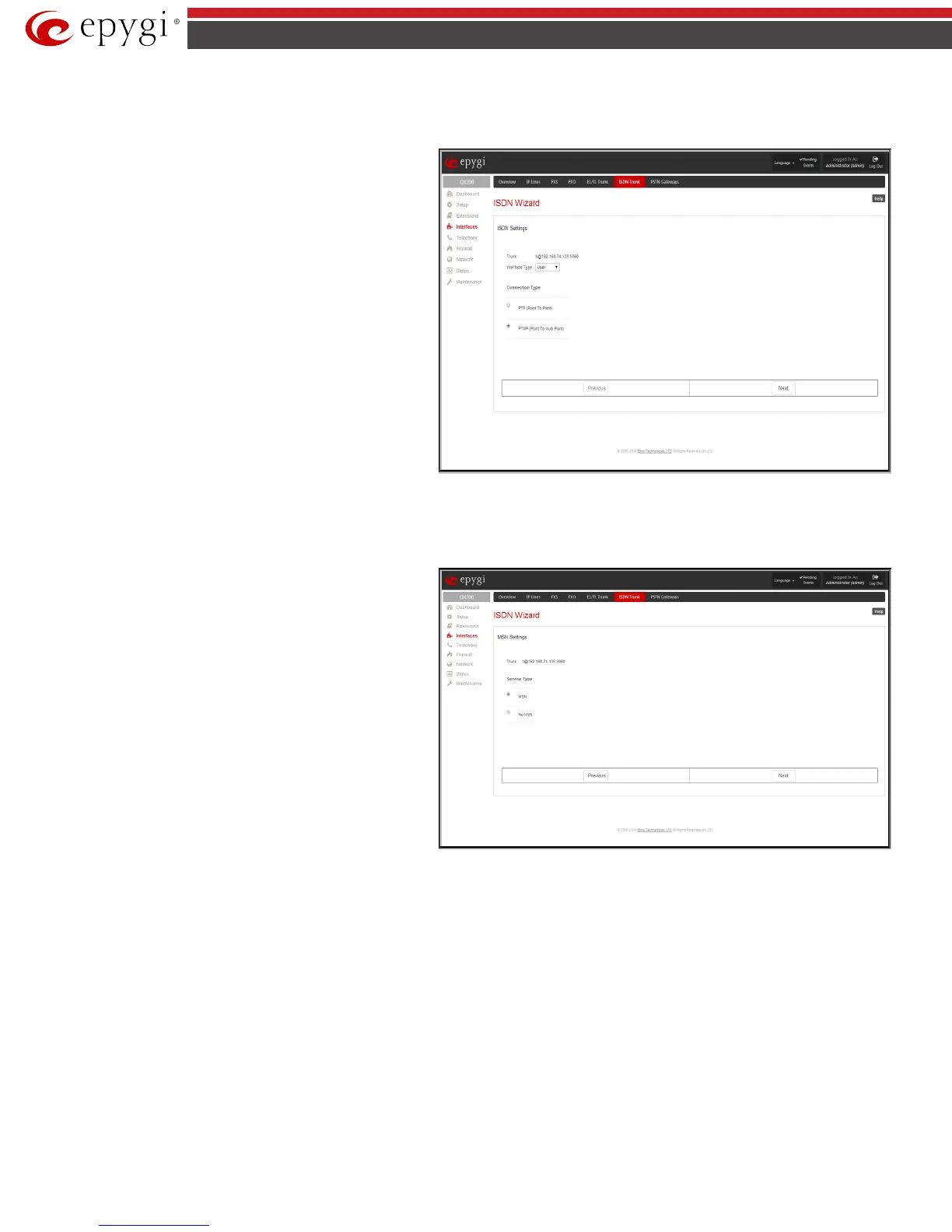

Fig.II- 127: ISDN Wizard – ISDN Settings page
In both cases, with this selection QX sets the TEI to automatic mode.
Please Note: Consult with your CO operator or network administrator before configuring the ISDN connection type.
The ISDN Wizard - Page 2 content is dependent on the connection type selected on the previous page of ISDN Wizard:
The next page is
ISDN Wizard – MSN Settings
page which is used
to turn on the MSN configuration. It is recommended to enable the
MSN when there are multiple ISDN devices connected to the same
ISDN bus. If the MSN is enabled on this page, the next page will
require the MSN table configuration.
Fig.II- 128: ISDN Wizard – ISDN PRMP Settings page
For MSN service enabled, the Routing Settings page is used to assign MSN numbers to the certain destinations on the QX. The MSN number can be
assigned to the QX IP PBX’s extensions, to the Auto Attendant, or to the routing agent. The destination selected from this page will ring upon incoming call
to the corresponding MSN number comes in.
