If this checkbox is not selected in the Call Routing Wizard first page, the overall call duration will be unlimited. When this checkbox is selected, Call
Routing Wizard - Routing Overall Call Limitation Settings page will be displayed.
Please Note: The Overall Calling Time Limitation checkbox is not allowed for PBX, PBX-Voicemail and PBX-Intercom destination types routing rules.
Set Tracing / Debug Options on This Rule checkbox is used to switch events notification on the certain execution results of the corresponding routing
rule. When this checkbox is enabled, the Call Routing Wizard - Tracing/Debug Options page will be displayed.
Require Authorization for Enabling/Disabling checkbox is used to enable administrator’s password authentication when enabler/disabler keys are
configured for the routing rule. The service can be used locally from the handset (see Feature Codes in Manual III - Extension Users Guide) or remotely
from Auto Attendant (see Auto Attendant Services in Manual III - Extension Users Guide). When this checkbox is selected, administrator’s password will
be requested to enable/disable the certain routing rule(s). If the administrator’s password has been inserted incorrectly for 3 times, no status changes will
be applied to any of the routing record(s), even to those which have no authorization enabled.
Enabler Key and Disabler Key text fields request digit combination which should be dialed from the handset or Auto Attendant to enable or disable the
certain routing rules in the Call Routing Table. You can set the same Enabler/Disabler Key for multiple routing rules (the same key may be used as enabler
for one routing rule, and as disabler for another one) - this will allow managing several routing rules with the single key.
The second page of the
Call Routing Wizard
offers different
components depending on the Destination Type selected on the
previous page.
Use Extension Settings drop down list is applicable to SIP and IP-
PSTN destination types and allows you to select the extension
(also Auto Attendant) on behalf of the call that will be placed. The
SIP settings of the selected extension will be used as the caller
information. If an entry is not selected from this list, the original
caller information will be kept. When Keep original DID checkbox
is selected, the called destination will receive the original caller’s
information and not the information of the extension selected from
the Use Extension Settings list.
When the checkbox Add Remote Party ID is selected, the Remote-
Party-ID parameter is being delivered to the destination side upon
call establishment procedure.
SIP Tunnel drop-down list appears only when the “SIP_Tunnel”
Destination Type is selected on the previous page. The list is used
to select the particular SIP tunnel to route the calls through the
corresponding QX IP PBX.

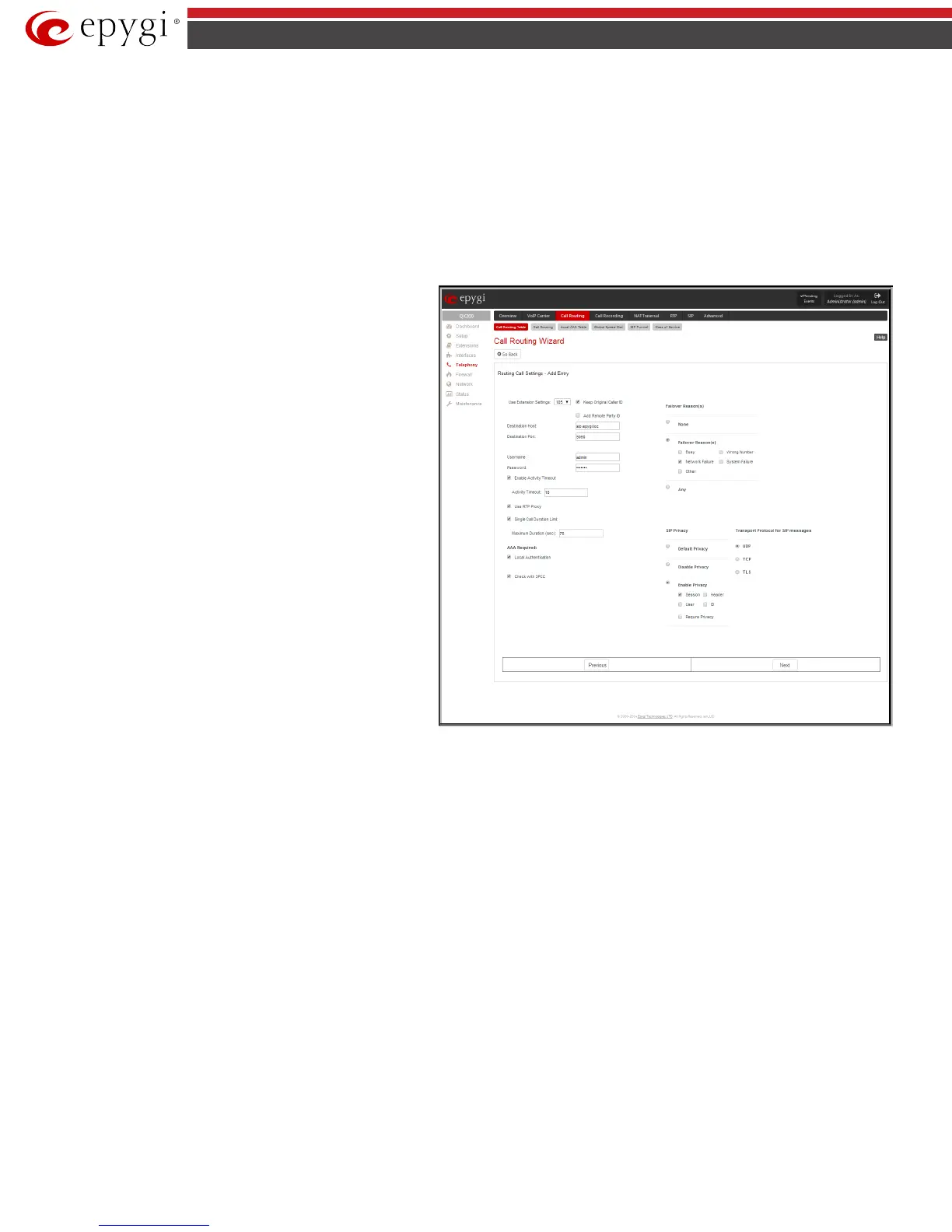

Fig.II- 139: Call Routing Wizard - page 2
Destination Host requires the IP address or the host name of the destination (for a direct call) or the SIP server (for calls through the SIP server). This
field is named Modified Destination Host if the Pattern field on the first page of this wizard contains “@” symbol.
Destination Port requires the port number of the destination or of the SIP server. This field is named Modified Destination Port if the Pattern field on
the first page of this wizard contains “@” symbol.
User Name and Password require the identification settings for the public SIP server or servers requiring authentication.
Enable Activity Timeout checkbox is used to limit time-to-live period of routing pattern (makes sense if accept or failure feedback arrives too late from
the destination).
Checkbox selection enables the Activity Timeout text field which is used to insert a routing pattern activity timeout (in the range from 1 to 180 seconds).
When timeout is configured, the routing pattern will be active within the defined time frame and if no response has been received from the destination
during that period, the pattern will be stopped and next routing rule might be optionally considered (depending on the Fail Reason configuration on the
corresponding pattern).
The Restrict the Number of Simultaneous Calls checkbox is only available for IP-PSTN destination type and is used to restrict the number of
simultaneous calls to the public SIP server with the same username at the same time. This checkbox enables Allowed Call Count text field which requires
the number of simultaneous calls allowed in a range from 1 to 64. If you leave this field empty, no limitation will apply to the number of simultaneous
logons.
The Use RTP Proxy checkbox is available for SIP and IP-PSTN destination types and is applicable when a route is used for calls through QX IP PBX
between peers that are both located outside the QX IP PBX. When this checkbox is selected, RTP streams between external users will be routed through QX
IP PBX. When the checkbox is not selected, RTP packets will move directly between peers.
The Collect Call checkbox is available only for E1/T1 destination type and is used when it is simply preferable for the called phone to pay for the call. This
service is applicabe only if the Collect Call checkbox is enabled on both calling and called party's IP PBXs.
The Single Call Duration Limit checkbox is available for SIP, IP-PSTN and PSTN destination types and is used to limit the duration of the call placed with
the selected routing rule. If this checkbox is not selected, the call duration will be unlimited. This checkbox selection enables the Maximum Duration text
